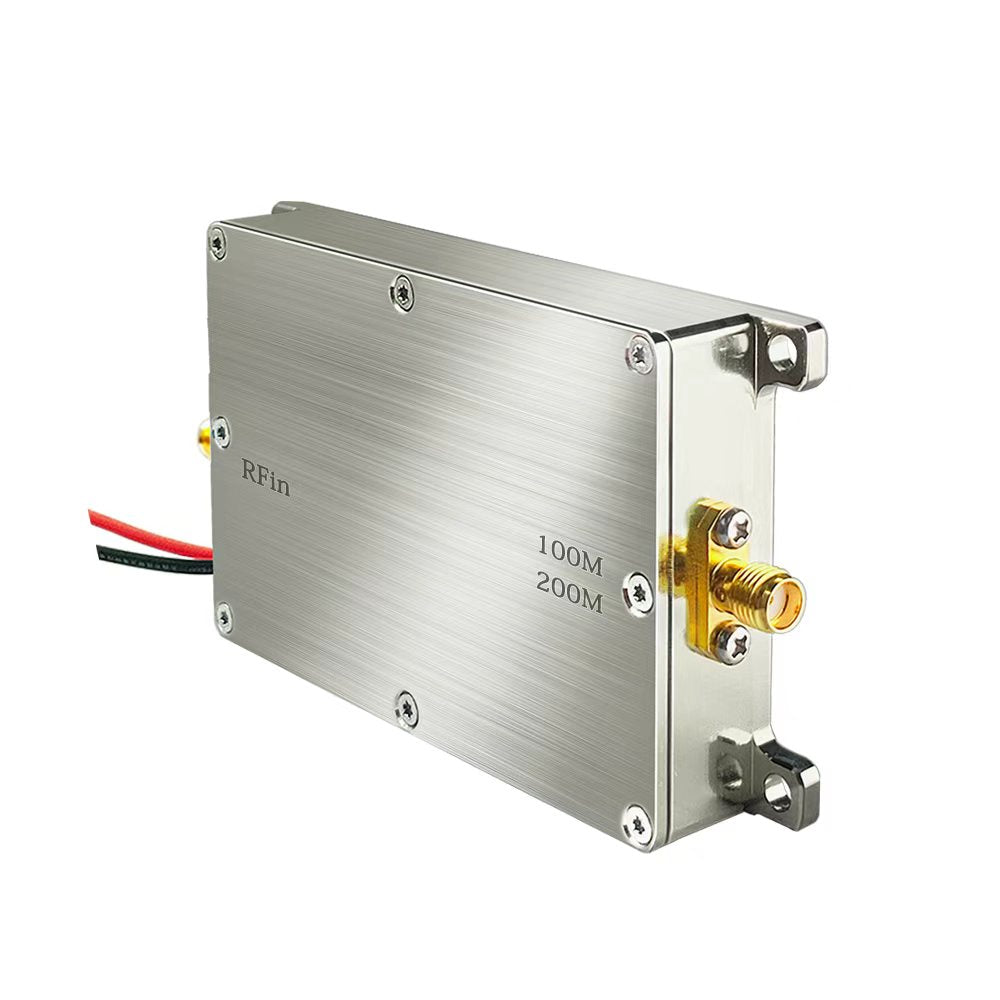

Applications
Audio&video: WiFi cameras, HDMI video transceivers, wireless microphones
Smart Home/IOT: RFID Reader, IOT digital transmission, control radar modules
Industrial/Control: Weather telemetry devices, buoy telemetry devices, testing instruments, industrial control modules
Features

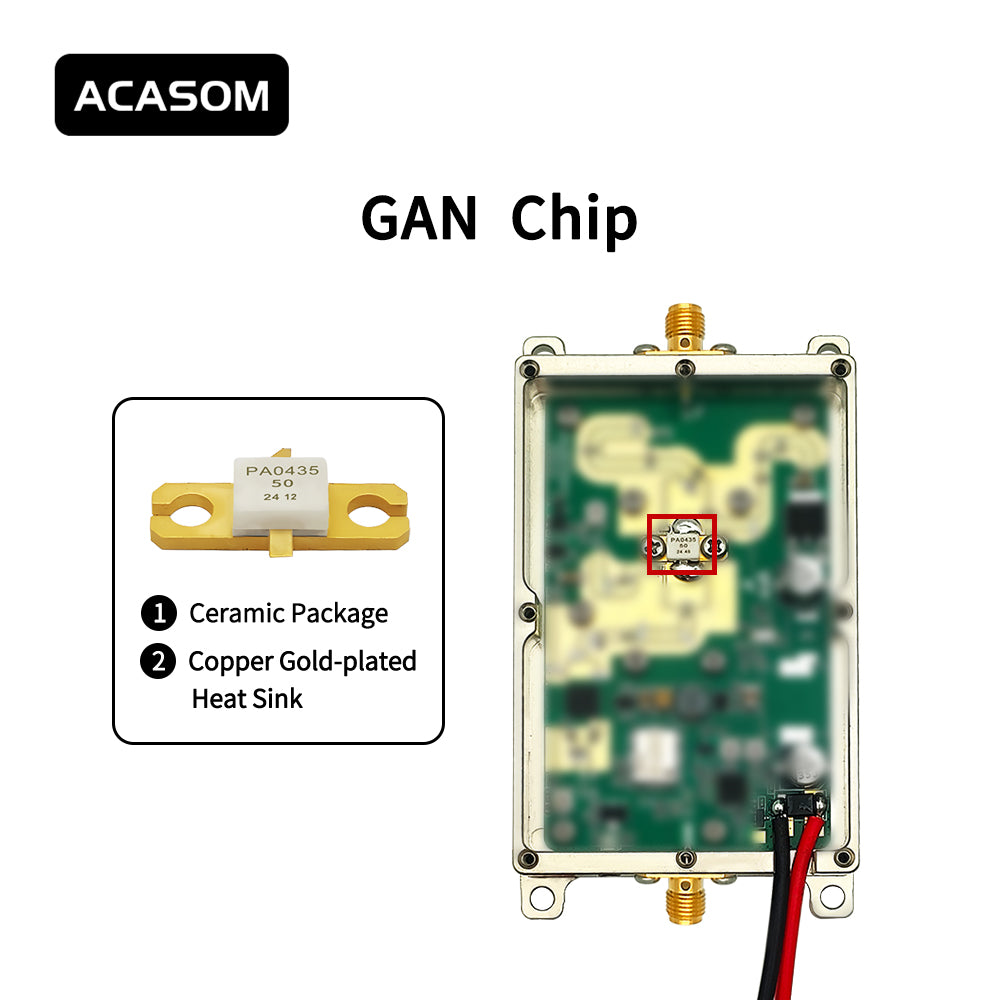

High gain: 40dB, the product can still output 43dBm (20W) even with 3dBm input signal.
Super high efficiency: ≥ 45% Generating less heat and reducing power consumption.
Wide temperature stability: Operating temperature range is -30°C to 85°C, so it can run stably outdoors or in harsh industrial environments.
Excellent signal flatness: ±0.5dB, ensuring stable power output.
Two versions available: with control line / without control line,Supporting remote control or simple use, great for flexible setup.
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
100-200MHz |
|||||
|
Output Power |
10W(40dBm) |

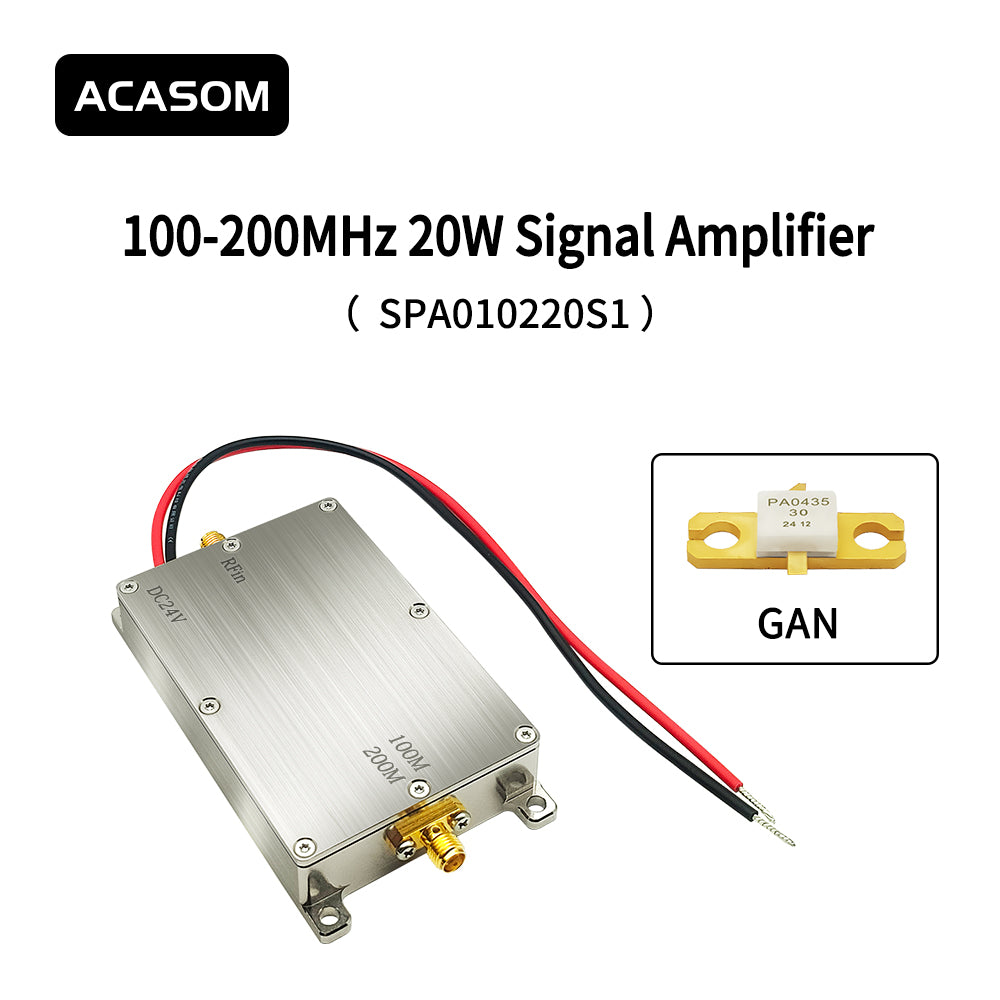

20W(43dBm) |
30W(45dBm) |

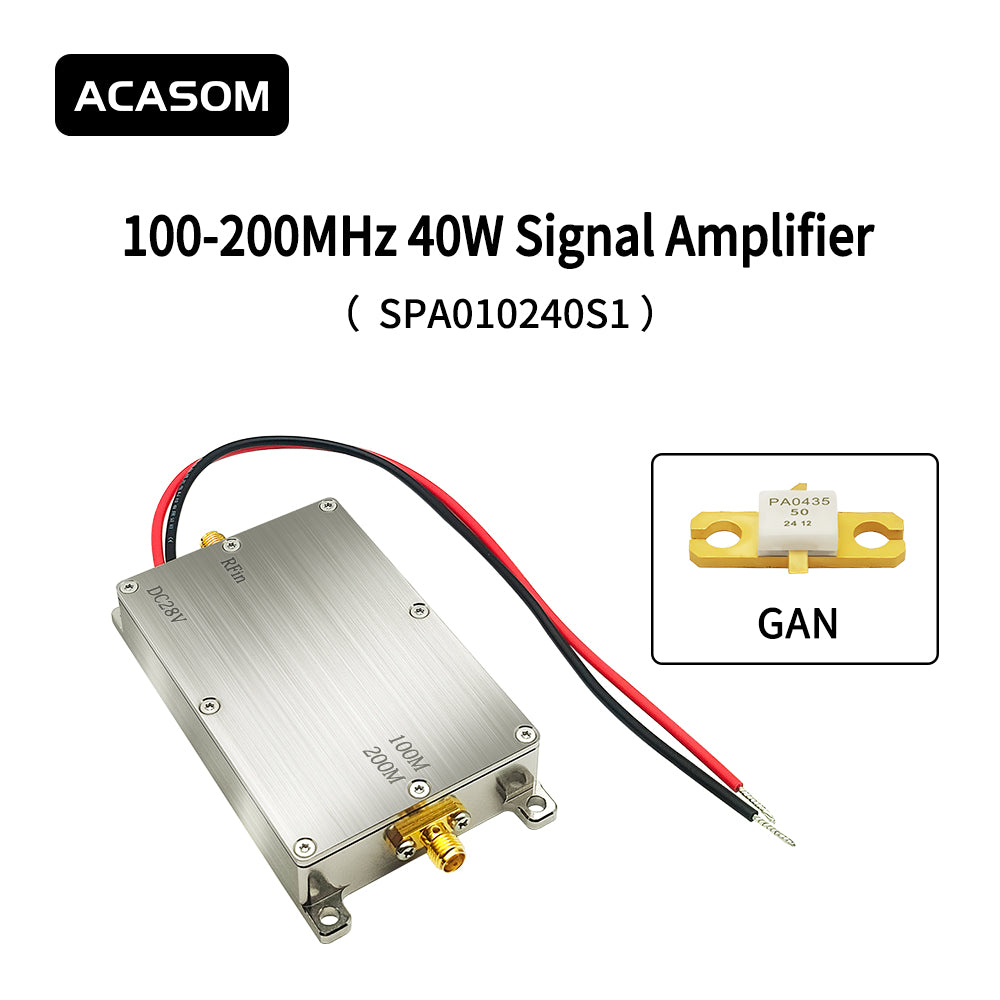

40W(46dBm) |
50W(47dBm) |

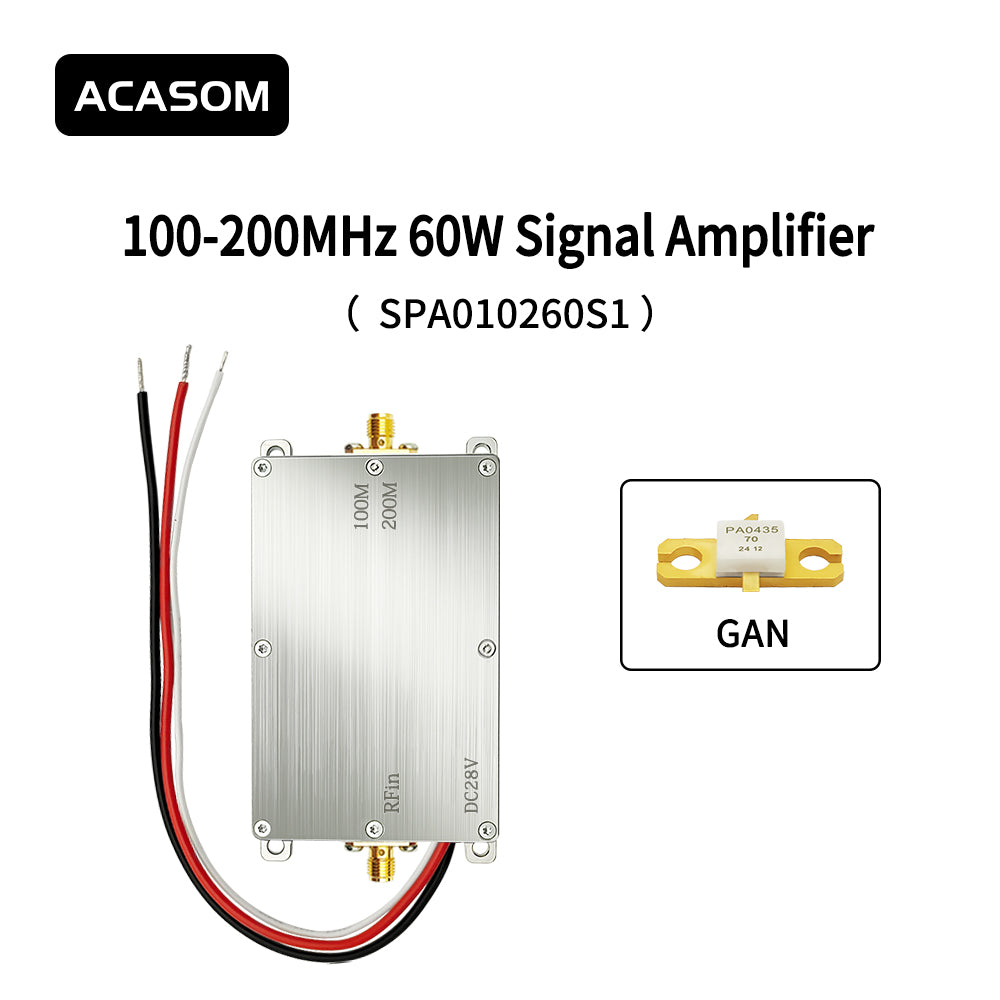

60W(48dBm) |
|
Model No. |
SPA010210S1 |
SPA010220S1 |
SPA010230S1 |
SPA010240S1 |
SPA010250S1 |
SPA010260S1 |
|
DC supply |
24V |
24V |
28V |
28V |
28V |
28V |
|
Current |
1.1A @24V |
2.2A @24V |
2.8A @24V |
3.2A @28V |
3.6A @28V |
4.2A @28V |
|
Gain(S21) |
40dB |
|||||
|
Input Return Loss(S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|
Efficiency |
45% |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|

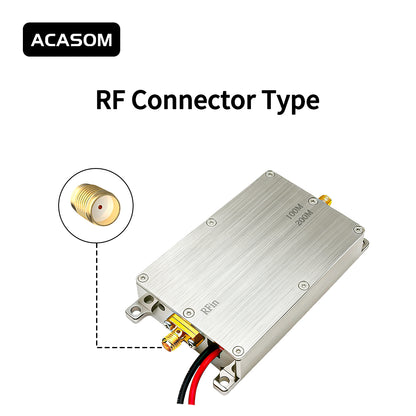

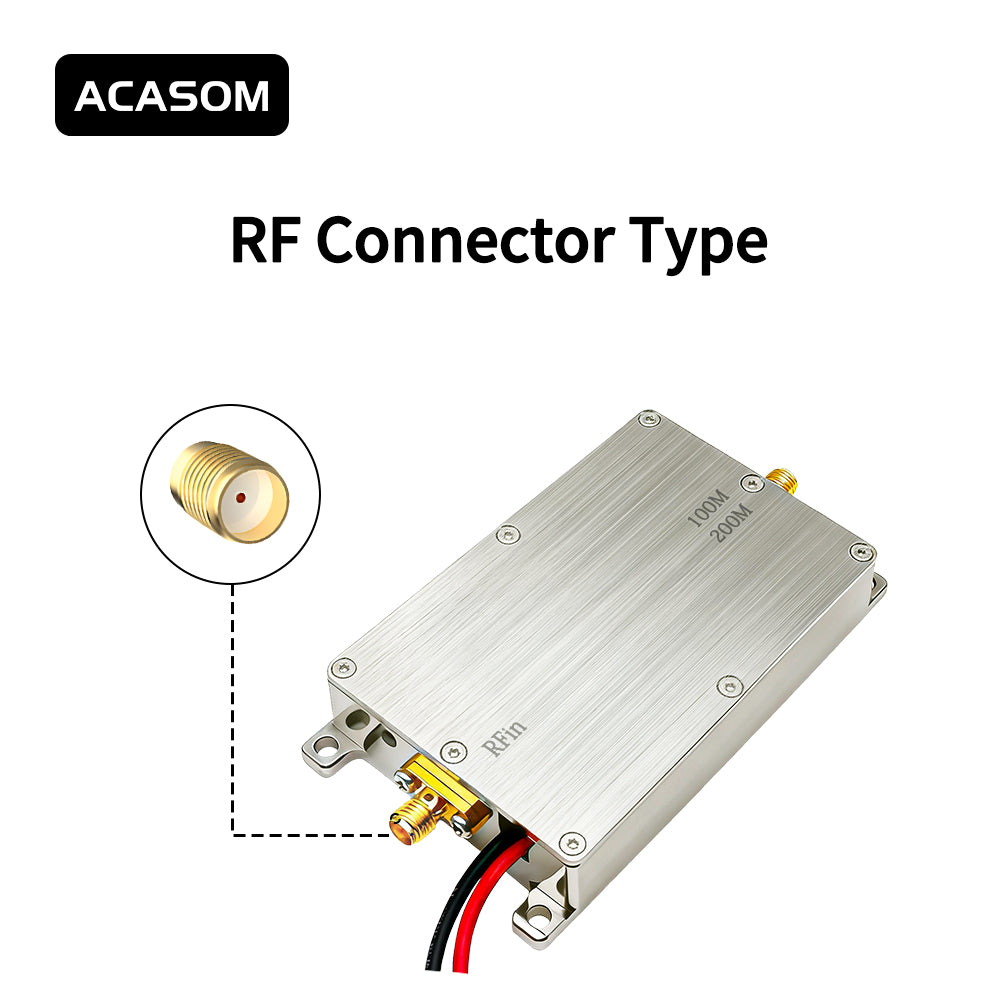

RF Connector |
SMA-Female |
|||||
|

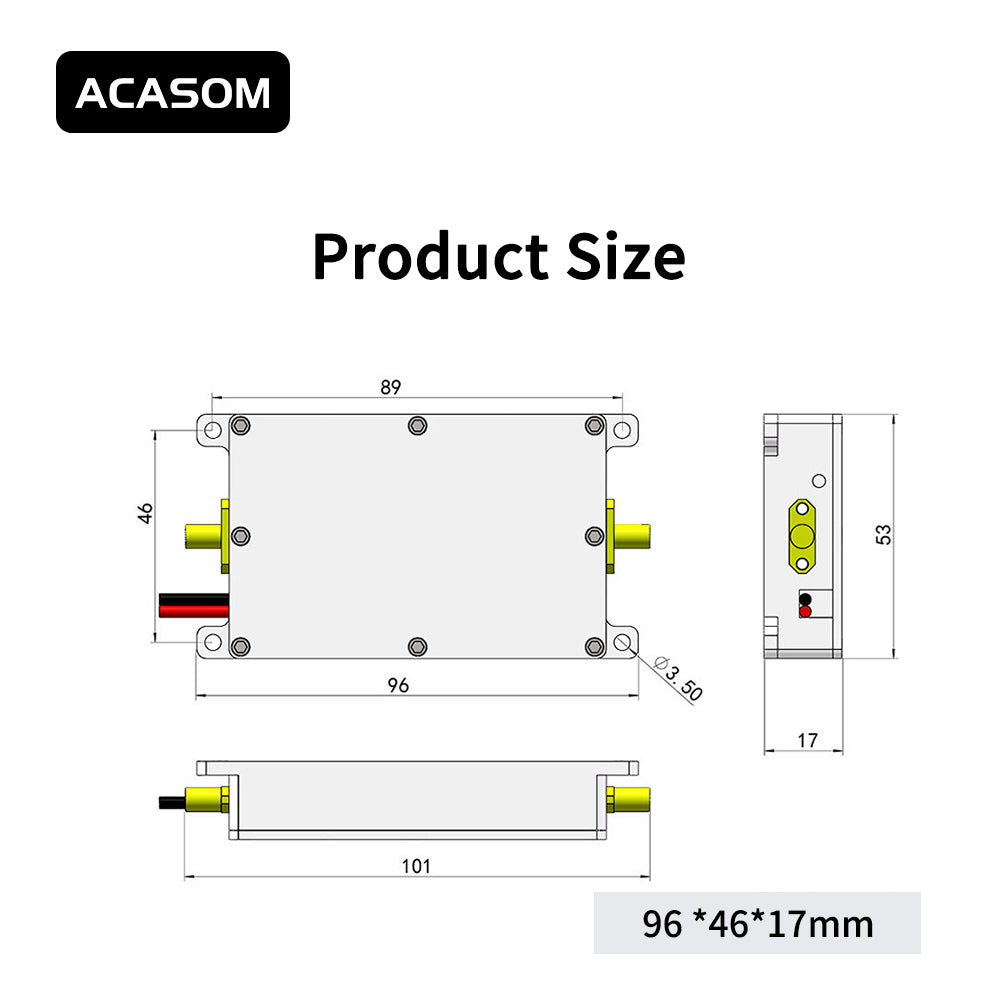

Shell Size |
96*53*17mm |
|||||
|
Net Weight |
0.13Kg |
|||||
|
Shell Material |
Aluminum |
|||||
|

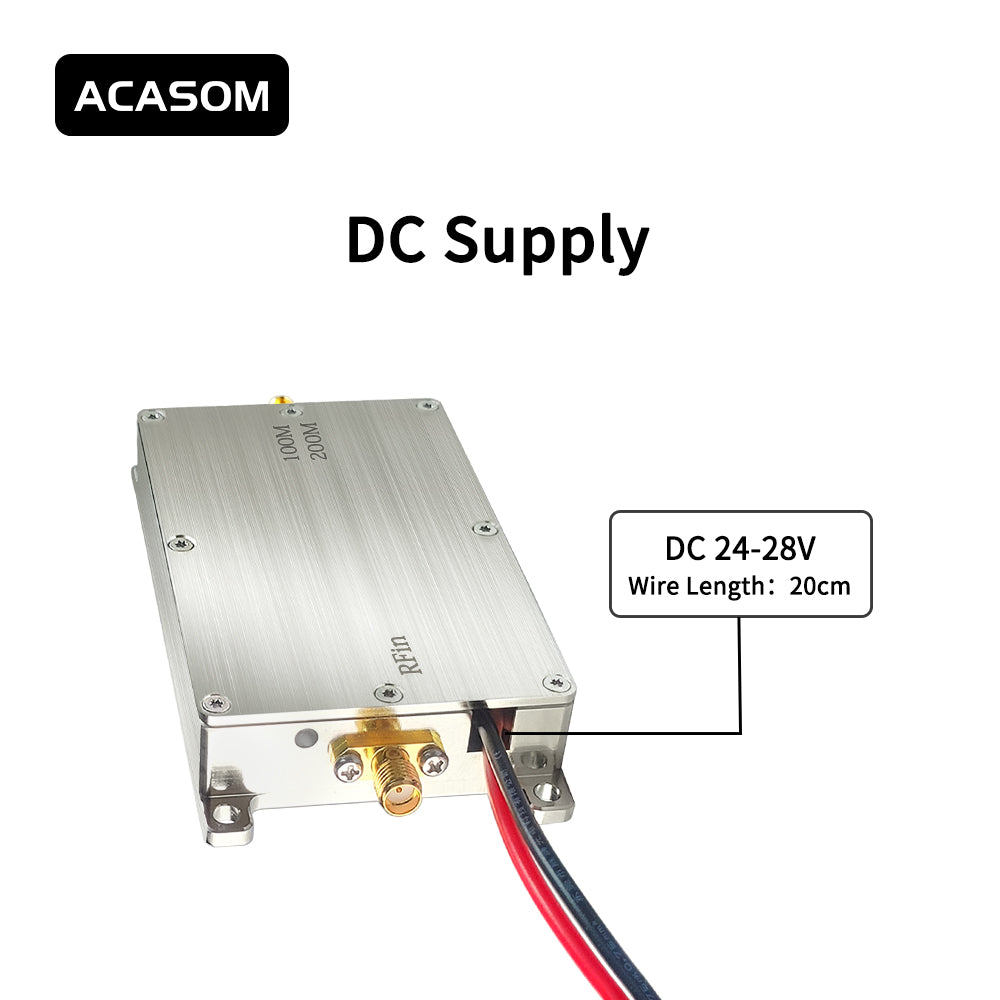

Power Socket |
20cm red/black wire |
|||||
|

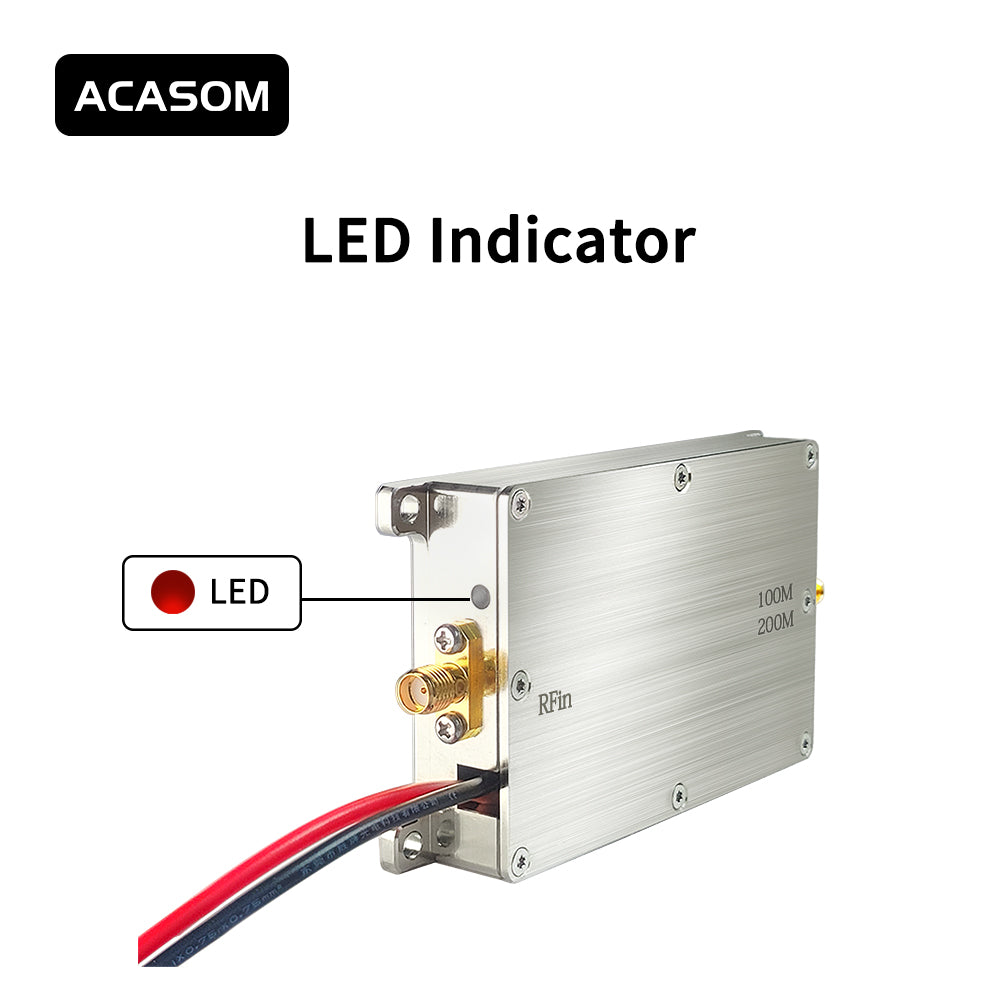

LED State |
Red |
|||||
Attentions
1）The input power shall NOT exceed 10dBm to avoid damage.
2）Connect antenna and secure all cables before power on,do not power on without antenna load.
3）Power supply recommended: 10W:24V@2A; 20W:24V@3A; 30W:28V@4A; 40W:28V@5A; 50W:28V@5A; 60W:28V@6A
4）Maintain good ventilation for heat disspation,a heat sink or cooling fan is recommended.
5）Never swap RFin /ANT ports,reversed wiring will damage the amplifier.
6）Keep away from heat sources, high humidity and combustible materials.
