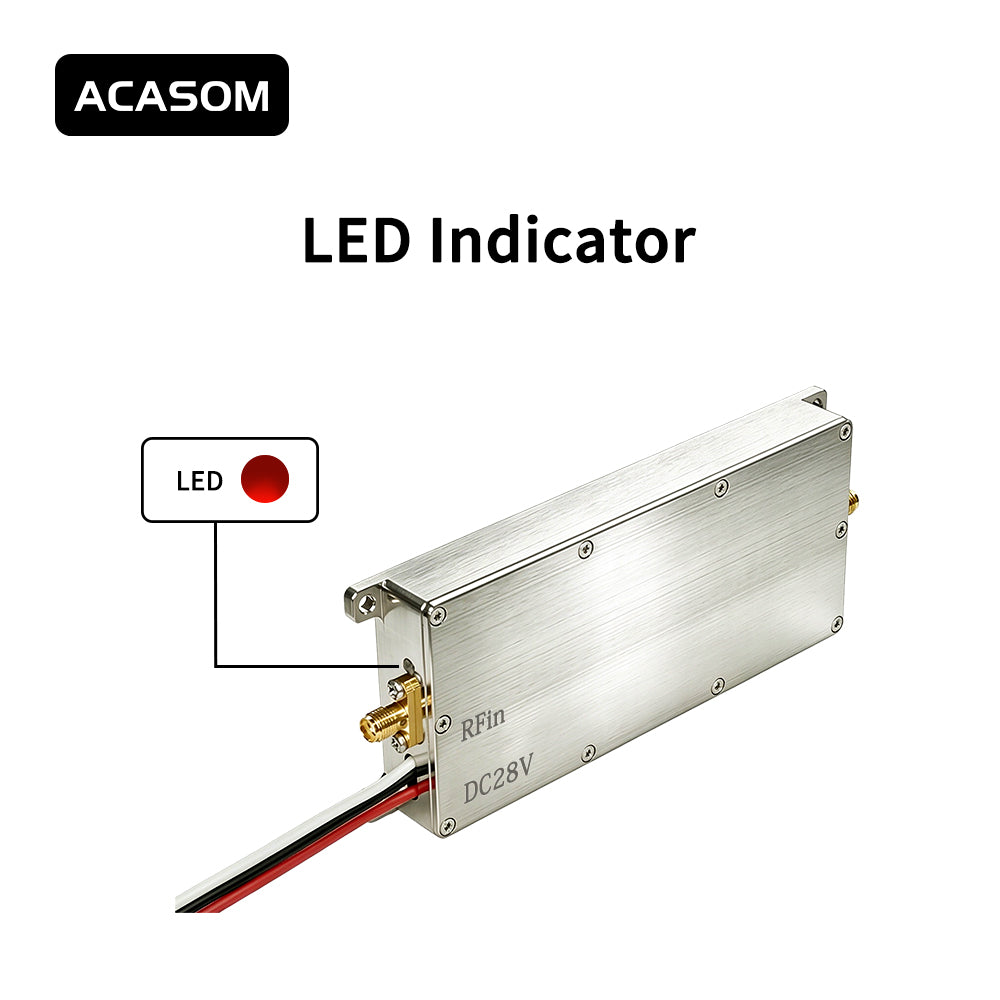

About this product
Covering the full 6000–7200MHz spectrum, including WiFi 6E/7 channels, 6GHz UNII-5/6/7/8 bands, audio & video transmission, point-to-point microwave links and emerging 7.2GHz wireless systems, delivers 47dBm (50W) clean output power and 40dB gain.
Compared with conventional amplifiers, it is built-in circulator to safeguard the RF circuit from reflected power caused by antenna mismatch or high VSWR, greatly improving reliability in field deployment.
Features
Wide-range 6000–7200MHz Broadband RF Module – Covers full frequency band for multi-band radio signal boosting.
Built-in circulator: shields RF circuit from reflected power / high VSWR, boosts field reliability
Impressive 40dB High Gain – Efficiently amplifies faint incoming radio signals to extend transmission distance.
Specifications
|
Items |
Specifications |
|||
|
Frequency Range |
6000–7200MHz |
|||
|
Output Power |
20W(43dBm) |
30W(45dBm) |
40W(46dBm) |
50W(47dBm) |
|
Model No. |
SPA607220S1 |
SPA607230S1 |
SPA607240S1 |
SPA607250S1 |
|
DC supply |
24V |
28V |
28V |
28V |
|
Current |
1.8A @24V |
2.4A @28V |
3.2A @28V |
3.6A @28V |
|
Gain(S21) |
40dB |
|||
|
RF Input Power Range |
-13-10dBm |
|||
|
Input Return Loss(S11) |
-15dB |
|||
|
Flatness |
±0.5dB |
|||
|
Efficiency |
45% |
|||
|
Operating Temperature |
-30°C～85°C |
|||
|
Storage Temperature |
-40°C～150°C |
|||
|
Operating Humidity |
＜95%RH |
|||
|
RF Connector |
SMA -Female |
|||
|
Power Socket |
20cm red/black wire |
|||
|
Shell Size |
132*53*17mm |
|||
|
Shell Material |
Aluminum |
|||
|
Net Weight |
210g |
|||
Attentions
1）The input power shall NOT exceed 10dBm to avoid damage.
2）Connect antenna and secure all cables before power-on,do not power on without antenna load.
3）Power supply recommended: 10W:24V@2A; 20W:24V@3A; 30W:28V@4A; 40W:28V@5A; 50W:28V@5A; 60W:28V@6A
4）Maintain good ventilation for heat disspation,a heat sink or cooling fan is recommended.
5）Never swap RFin /ANT ports,reversed wiring will damage the amplifier.
6）Keep away from heat sources, high humidity and combustible materials.
7）Power off immediately if overheating, strange smells or unusual noise occurs.
