Applications
Transport & logistics – boosts data and voice for fleet communication, port operations and rail signaling
Public venues & hospitality – stable coverage for offices, hotels, shopping malls, stadiums and large events
WiFi & mobile network enhancement – boosts hotspots, mobile transmitters and wireless base stations for wider coverage
Features
45% High Efficiency – cool-running design cuts wasted heat and lowers power consumption
Wide Temperature Range (-30°C to 85°C) – reliable outdoors and in harsh industrial environments
SMA RF Connector – simple, reliable integration with antennas and RF systems
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
400-500MHz |
|||||
|
Output Power |
10W(40dBm) |
20W(43dBm) |
30W(45dBm) |
40W(46dBm) |
50W(47dBm) |
60W(48dBm) |
|
Model No. |
SPA040510S1 |
SPA040520S1 |
SPA040530S1 |
SPA040540S1 |
SPA040550S1 |
SPA040560S1 |
|
DC supply |
24V |
24V |
24V |
28V |
28V |
28V |
|
Current |
1.1A @24V, 40dBm |
2.2A @24V, 40dBm |
2.8A @24V, 40dBm |
3.2A @28V, 40dBm |
3.6A @28V, 40dBm |
4.2A @28V, 40dBm |
|

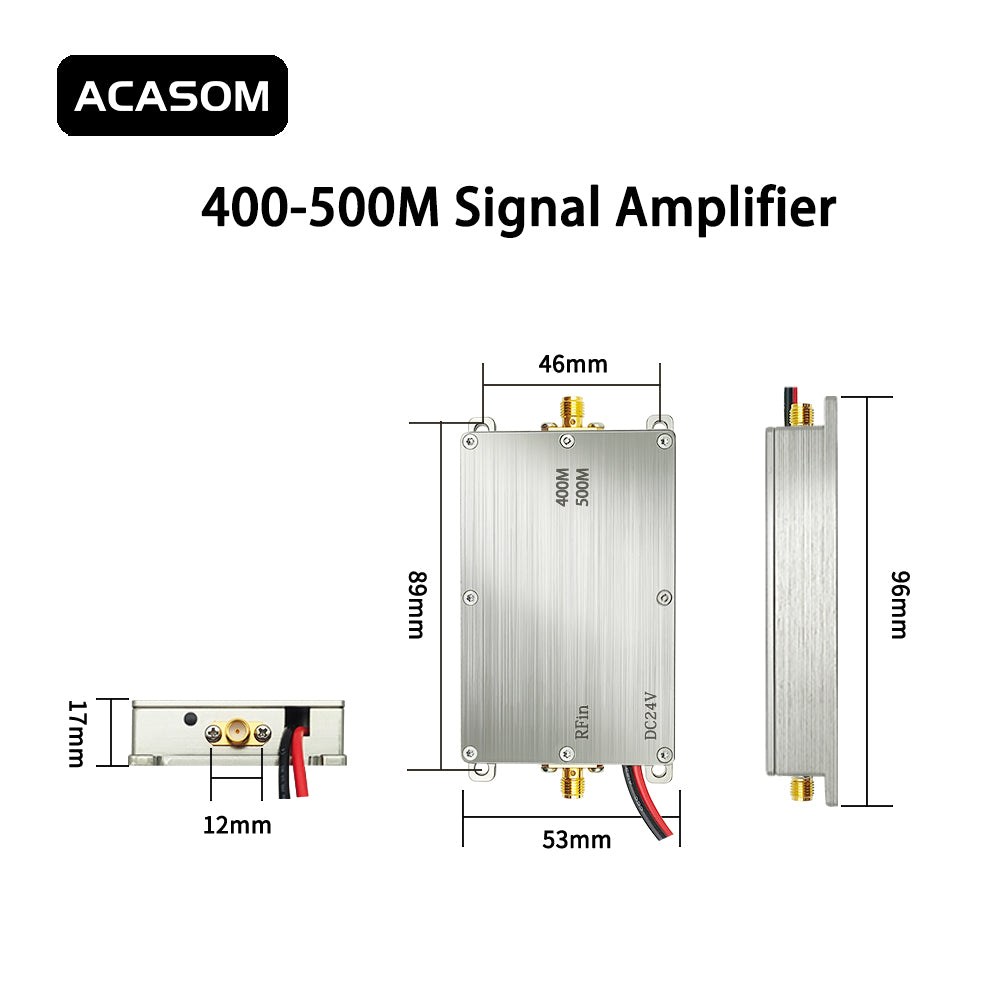

Shell Size |
96*53*17mm |
|||||
|
Net Weight |
0.13Kg |
|||||
|

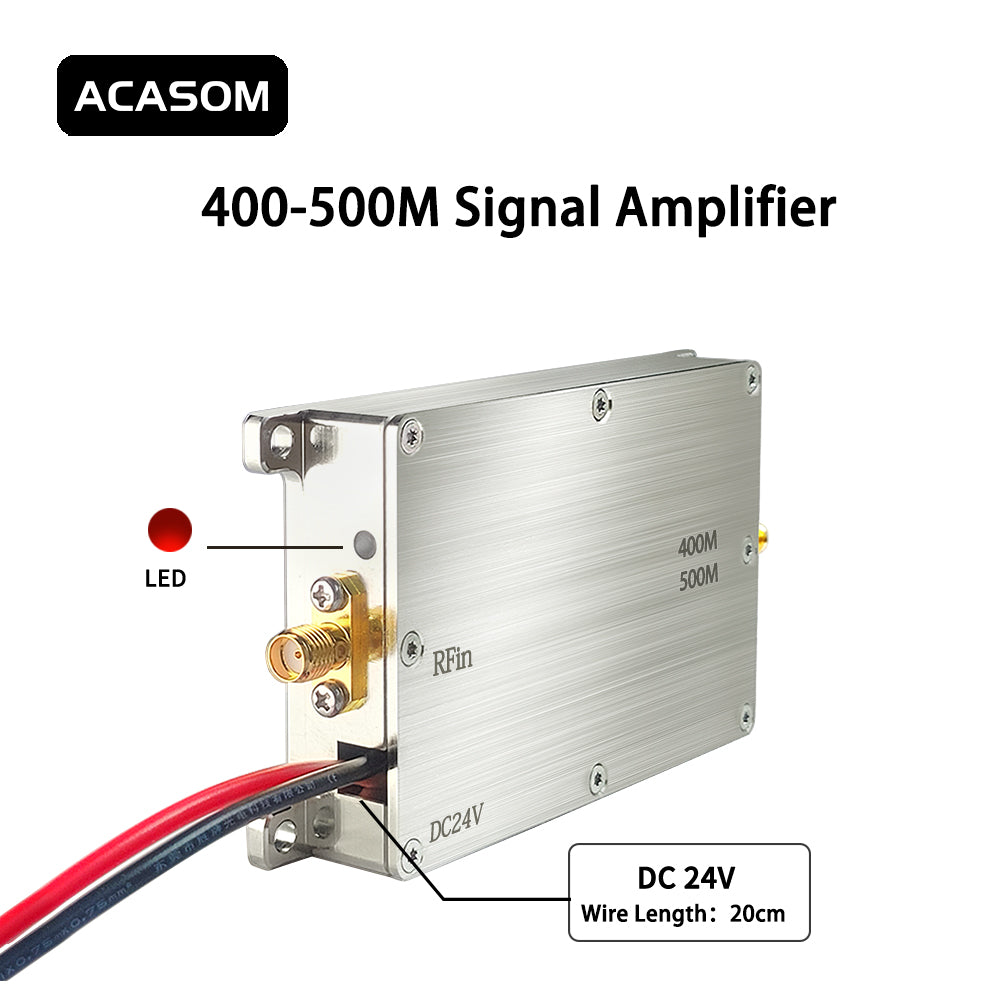

Power Socket |
20cm red/black wire |
|||||
|
Efficiency |
45%@40dBm |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|
Shell Material |
Aluminum |
|||||
|

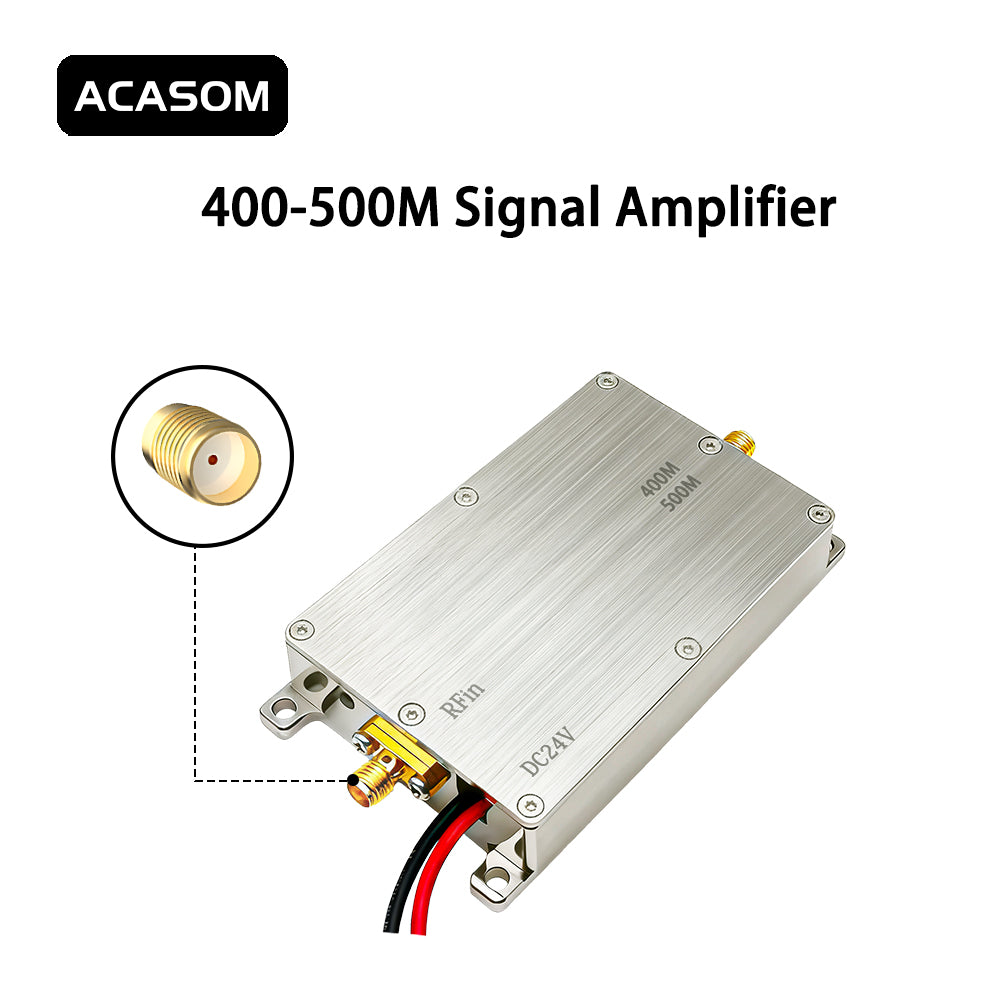

RF Connector |
SMA-Female |
|||||
|
Gain(S21) |
40dB |
|||||
|
Input Return Loss(S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|
LED State |
Red |
|||||
Attentions
1）The input power shall not exceed 10dBm to avoid damage.
2）Power supply range 24-28V, clean power source recommended：24V with 2A current，28V with 1.5A current
3）Keep good ventilation for heat dissipation，adding heat sink or radiator fan is recommend.
4）Comply with local radio spectrum regulatory requirements.
