Applications
Secure two-way voice & data – strengthens walkie-talkie and mobile radio links in factories, warehouses, campuses, and field teams
IoT & smart sensing – long-range data links for RFID readers, smart meters
Features
Low Input Return Loss (S11 ≤ -15dB) – well-matched input for stable, efficient signal transfer
Rugged Aluminum Housing – durable and compact, easy to mount on poles, brackets, or racks
40dB High Gain – amplifies weak input signals into clean, high-power output
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
600-700MHz |
|||||
|
Output Power |
10W(40dBm) |
20W (43 dBm) |
30W (45 dBm) |
40W (46 dBm) |
50W (47 dBm) |
60W (48 dBm) |
|
Model No. |
SPA060710S1 |
SPA060720S1 |
SPA060730S1 |
SPA060740S1 |
SPA060750S1 |
SPA060760S1 |
|
DC supply |
24V |
24V |
24V |
28V |
28V |
28V |
|
Current |
1.1A @24V, 40dBm |
2.2A @24V, 40dBm |
2.8A @24V, 40dBm |
3.2A @28V, 40dBm |
3.6A @28V, 40dBm |
4.2A @28V, 40dBm |
|

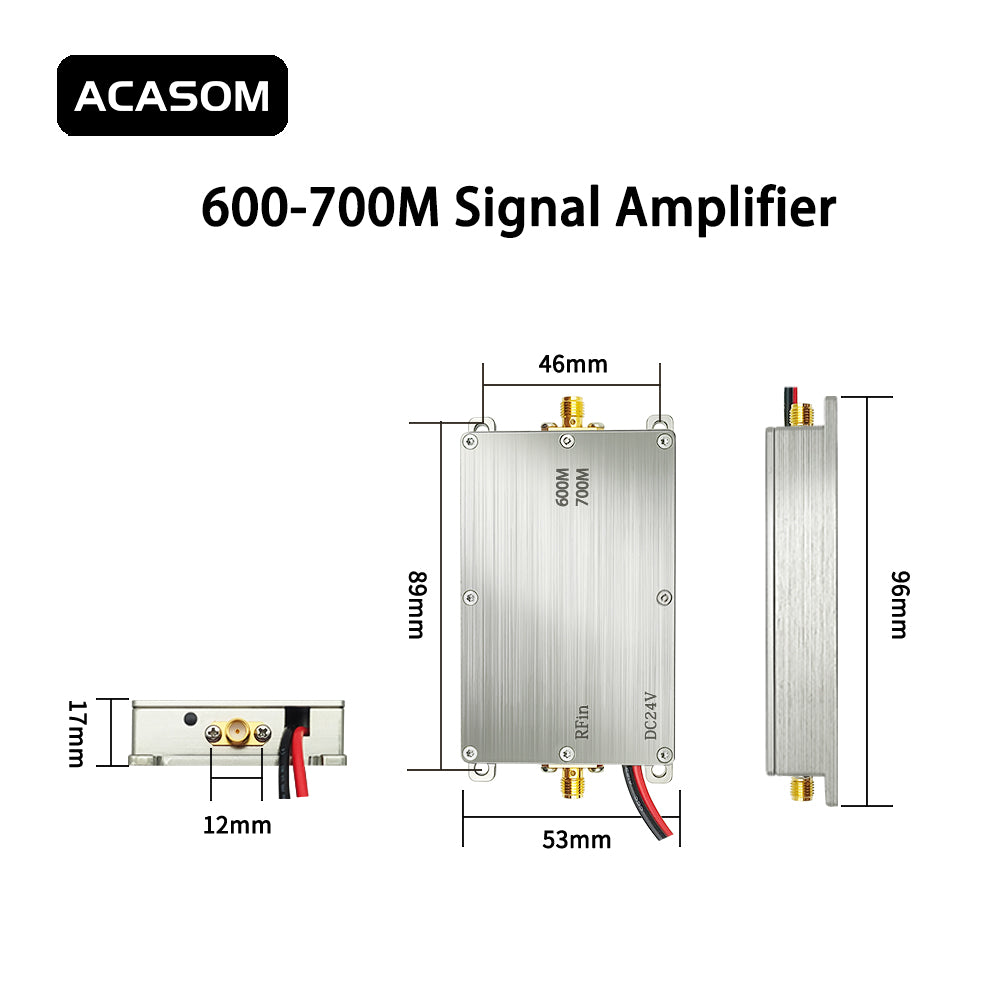

Shell Size |
96*53*17mm |
|||||
|
Net Weight |
0.13kg |
|||||
|
Power Socket |
20cm red/black wire |
|||||
|
Efficiency |
45%@40dBm |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|
Shell Material |
Aluminum |
|||||
|

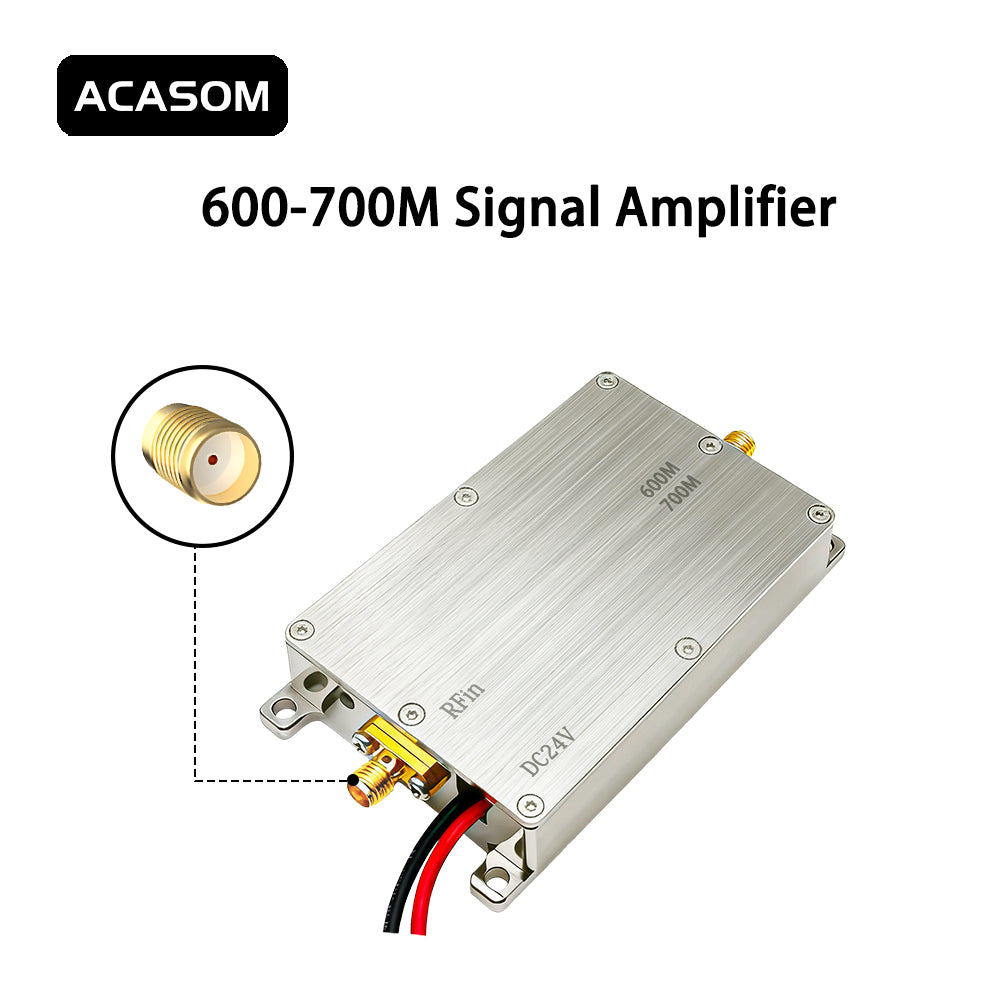

RF Connector |
SMA-Female |
|||||
|
Gain (S21) |
40 dB |
|||||
|
Input Return Loss (S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|

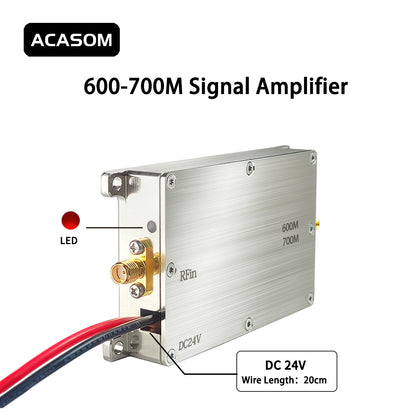

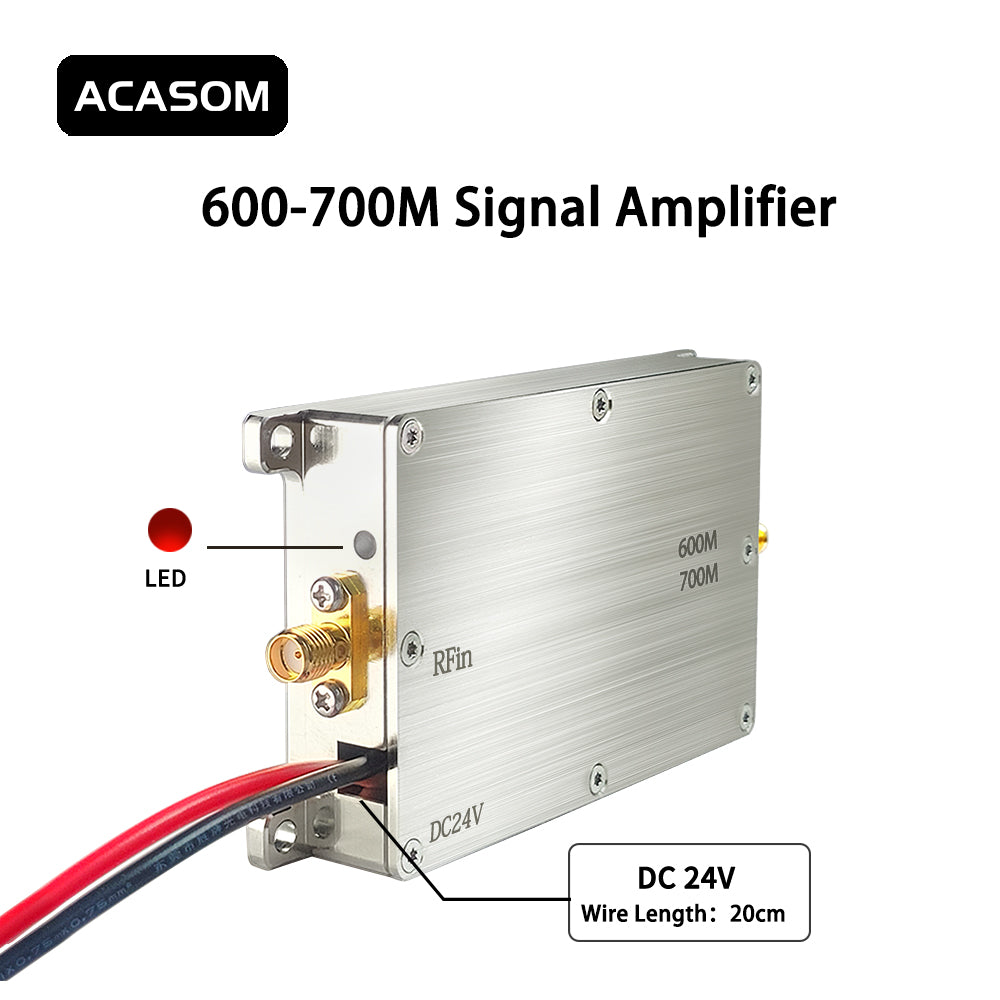

LED State |
Red |
|||||
Attentions
1）The input power shall not exceed 10 dBm to avoid damage.
2) Power supply range 24—28V, clean power source recommended: 24V with 2A current, 28V with 1.5A current
3)Keep good ventilation for heat dissipation, adding heat sink or radiator fan is recommend.
4)Comply with local radio spectrum regulatory requirements.
