Applications
Smart Home/IOT: RFID Reader, IOT digital transmission, control radar modules
Industrial/Control: Weather telemetry devices, buoy telemetry devices, testing instruments, industrial control modules
Features
High gain: 40dB, the product can still output 45dBm (30W) even with a 5dBm input signal.
Excellent signal flatness: ±0.5dB, ensuring stable power output.
Super high efficiency: ≥ 40% Generating less heat and reducing power consumption.
Wide temperature stability: Operating temperature range is -30℃ to 85℃, so it can run stably outdoors or in harsh industrial environments.
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
200-300MHz |
|||||
|
Output Power |
10W(40dBm) |
20W(43dBm) |
30W(45dBm) |
40W(46dBm) |
50W(47dBm) |
60W(48dBm) |
|
Model No. |
SPA020310S1 |
SPA020320S1 |
SPA020330S1 |
SPA020340S1 |
SPA020350S1 |
SPA020360S1 |
|
DC supply |
24V |
24V |
24V |
28V |
28V |
28V |
|
Current |
1.1A @24V |
2.2A @24V |
2.8A @24V |
3.2A @28V |
3.6A @28V |
4.2A @28V |
|
Shell Size |
96*53*17mm |
|||||
|
Net Weight |
0.13Kg |
|||||
|
Power Socket |
20cm red/black wire |
|||||
|
Efficiency |
45%@40dBm |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|
Shell Material |
Aluminum |
|||||
|

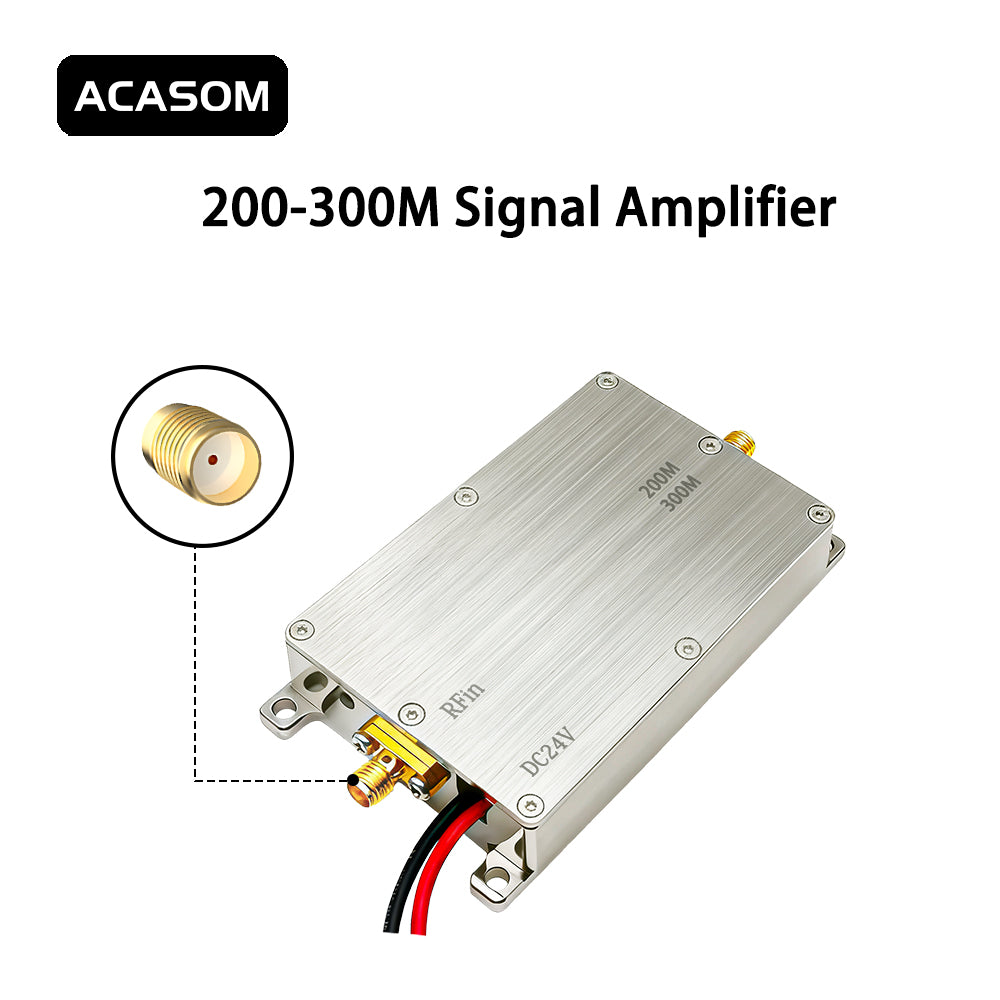

RF Connector |
SMA-Female |
|||||
|
Gain(S21) |
40dB |
|||||
|
Input Return Loss(S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|
LED State |
Red |
|||||
Attentions
1）The input power shall not exceed 10dBm to avoid damage.
2）Keep good ventilation for heat dissipation，adding heat sink or radiator fan is recommend.
3）Comply with local radio spectrum regulatory requirements.
