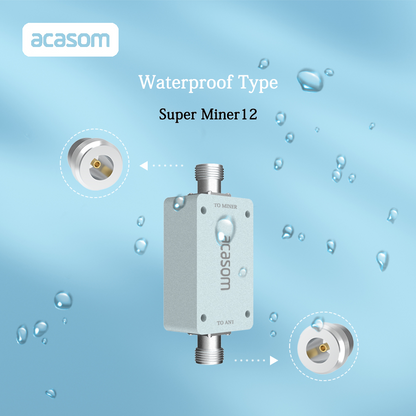

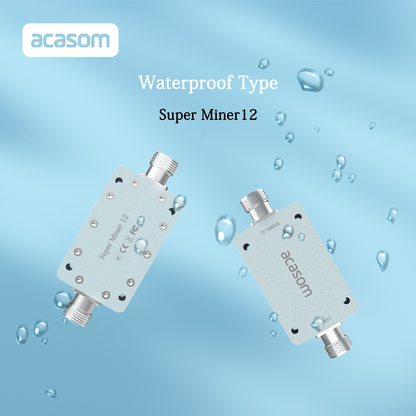

ACASOM new outdoor extender super miner12
This product has three improvements：
1、Noise Figure（NF）≤1.2dB
2、Three power supply modes： BiasTee/Adapter/USB
3、Variety of gain combinations can be realized: 17/6, 14/3, 11/0, etc（working with Super BiasTee）

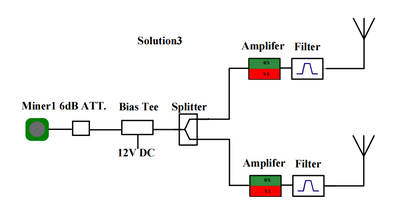

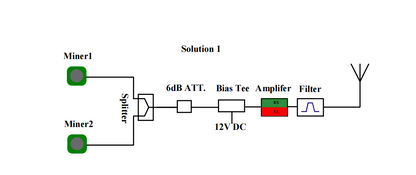

How to set the value of the super blaster?
1、If there is a long RF CABLE (over 5 meters) or power divider between the extender and the miner, it is recommended to set the super bias tee ATT=0dB;
2、 If there is nothing else between the extender and the hotspot directly, it is recommended to set the super bias tee ATT=6dB.
SPECIFICATION
|
Number |
Items |
Specifications |
|
1 |
Frequency Range |
902-928MHz |
|
2 |
Operating Voltage |
5-24V |
|
3 |
ReceivingGain |
17dB±1 |
|
4 |
Transmission Gain: |
6dB±1 |
|
5 |
Max Output Power(P1dB) |
|
|
6 |
Input Trigger Power |
Min:3dBmMax:20dBm |
|
7 |
EVM |
3%@26dBm |
|
8 |
Noise Figure |
＜1.2dB |
|
9 |
Current Supply |
430mA@Pout 30dBm 12V |
|
10 |
TX/RX Switch Time Delay |
＜1 us |
|
11 |
LED Indicator |
Transmitter: Green; Receiver: red |
|
12 |
OperatingTemperature |
-40℃～+70℃ |
|
13 |
StorageTemperature |
-40℃～+150℃ |
|
14 |
Operating Humidity |
Up to 95% rel. humidity |
|
15 |
RF Connector |
Input: SMA-Female; Output: RP-SMA-Female |
|
16 |
Power Socket |
2.5*0.7mm adpter/biastee/USB |
|
17 |
Shell Size |
64.5*34.5*10mm |
|
18 |
Shell Material |
Aluminum |
|
19 |
Net Weight |
0.5Kg |

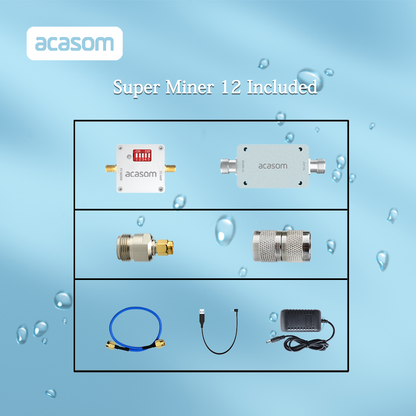

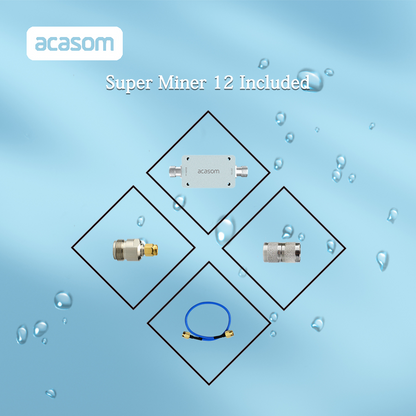

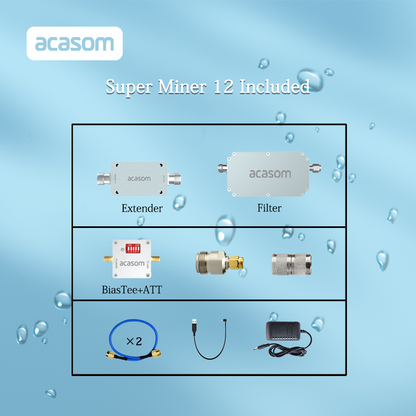

INCLUDED
138SET:
- 1PCS* Extender
- 2PCS* RG402 Cable (20CM)
- 1PCS* Bias Tee
- 1PCS* USB Adapter
- 1PCS *EU Power Plug
198SET:
- 1PCS* Extender
- 2PCS* RG402 Cable (20CM)
- 1PCS* Bias Tee
- 1PCS* USB Adapter
- 1PCS *EU Power Plug
- 1PCS* RF Adpter（N MALE /RP SMA Male）
- 1PCS* Cavity Filter
