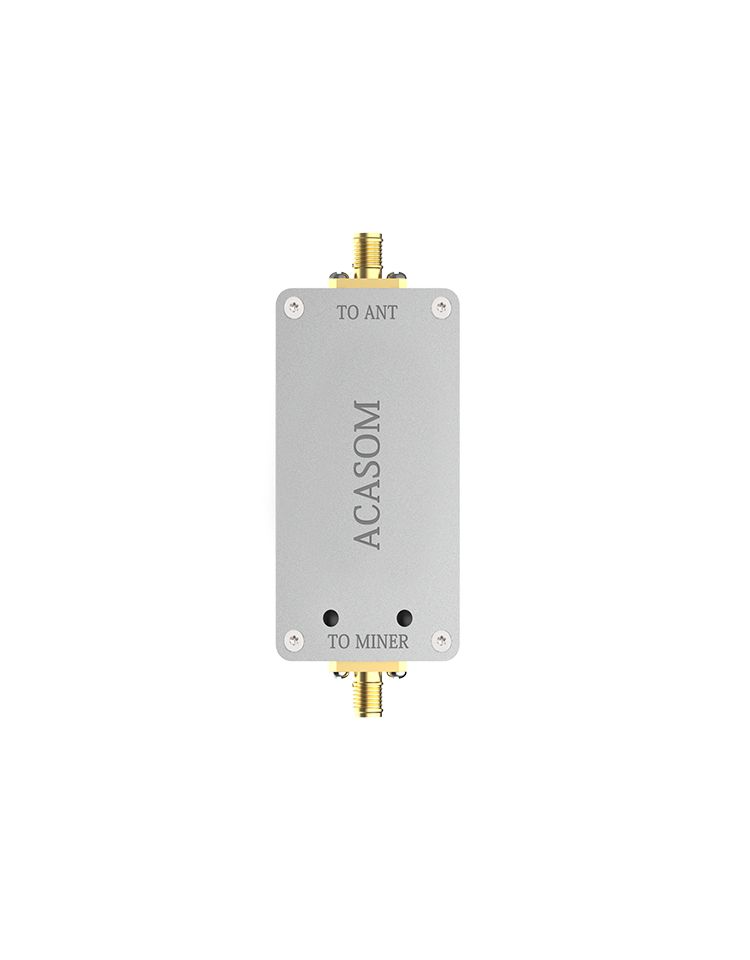

868MHz Helium hotspot extender 868MHz extender saw filter Miner More Witness HNT

AY ATTENTION:

How to choose the gain of Rx and Tx?
1、If there is a long RF CABLE (over 5 meters) or power divider between the extender and the hotspot, it is recommended to use the combination of RX = 17, TX = 6;
2、 If there is nothing else between the extender and the hotspot directly, it is recommended to use RX =10, TX =0.
3、If you want to test the impact of different values RX/TX on the system, it is recommended to use the combination of RX = 17, TX = 6, and 3dB/6dB attenuator to adjust.
4、If you want to buy other gains of RX/TX combinations, please contact us

FEATURES

2.0dB ultra-low noise

Wide 6V to 18V operating input range

2.5*0.7mm DC

SPECIFICATION

Number	Items	Specifications
1	Frequency Range	863-870MHz
2	Operating Voltage	6-18V
3	ReceivingGain	17dB±1
4	Transmission Gain:	6dB±1
5	Max Output Power(P1dB)	30dBm(1W)
6	Input Trigger Power	Min:6dBm Max:20dBm
7	EVM	3%@27dBm
8	Noise Figure	＜2.0dB
9	Current Supply	300mA@Pout 30dBm 12V
10	TX/RX Switch Time Delay	＜1 us
11	LED Indicator	Transmitter: Green; Receiver: red
12	OperatingTemperature	-40℃～+70℃
13	StorageTemperature	-40℃～+150℃
14	Operating Humidity	Up to 95% rel. humidity

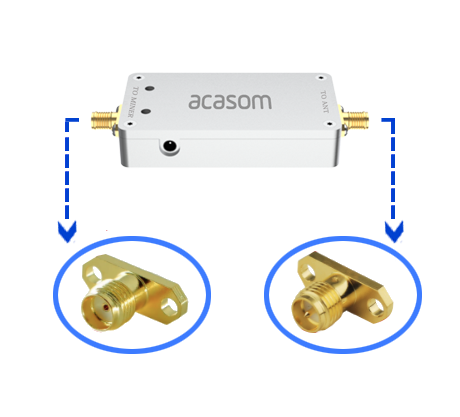

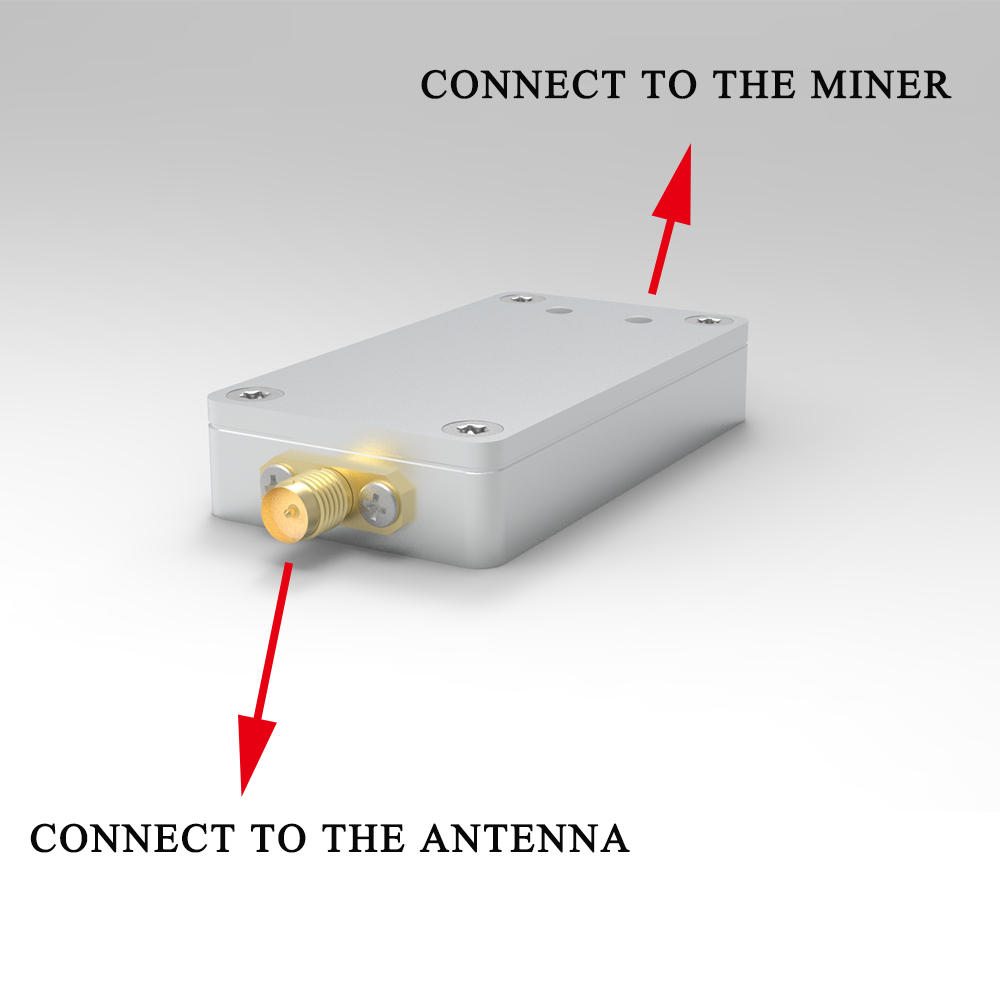

15	RF Connector	Input: SMA-Female; Output: RP-SMA-Female
16	Power Socket	2.5*0.7mm DC
17	Shell Size	64.5*34.5*10mm
18	Shell Material	Aluminum
19	Net Weight	0.05Kg

INCLUDED

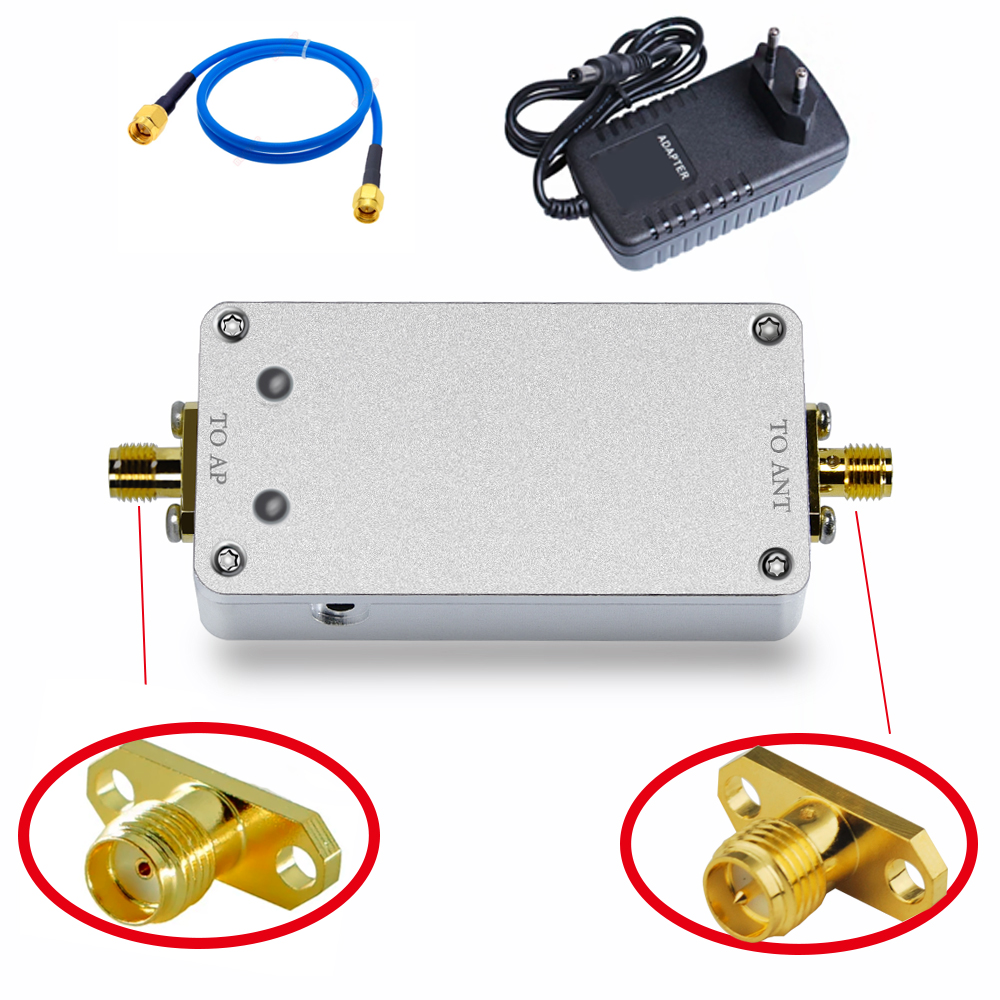

•  1PCS* AMPLIFIER
• 1PCS* DC POWER PLUG

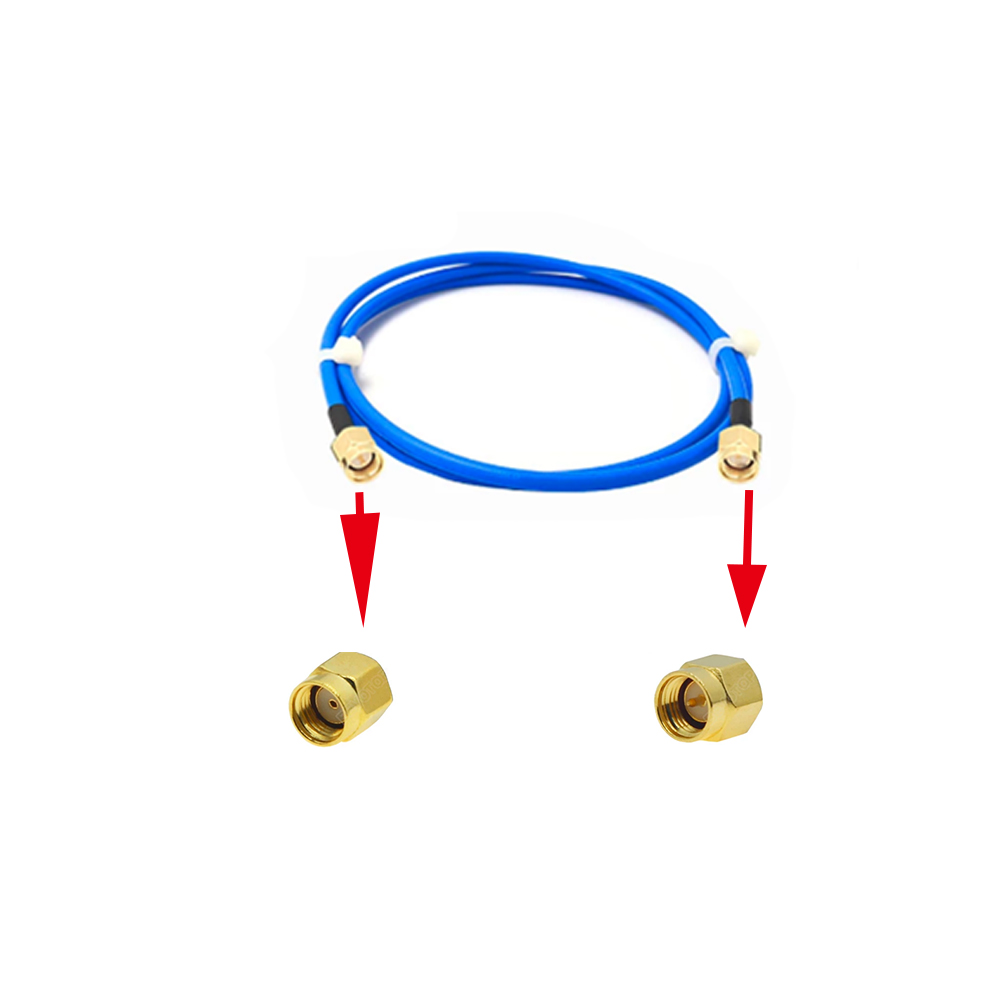

•  1PCS*RG402 20CM Coaxial Cable 50ohm SMA Male to RP SMA MALE
