Application
Wireless Transmission: WiFi cameras, HDMI video transceivers and wireless microphones
IoT & Smart Devices: RFID readers, IoT data links and radar control modules
Industrial Measurement & Control: Weather telemetry, buoy telemetry, test instruments and industrial control
Features
Excellent signal flatness: ±0.5dB, ensuring stable power output.
Super high efficiency: ≥ 40% Generating less heat and reducing power consumption.
Wide temperature stability: Operating temperature range is -30°C to 85°C, so it can run stably outdoors or in harsh industrial environments.
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
3000-3200MHz |
|||||
|
Output Power |
10W(40dBm) |
20W(43dBm) |
30W(45dBm) |
40W(46dBm) |
50W(47dBm) |
60W(48dBm) |
|
Model No. |
SPA303210S1 |
SPA303220S1 |
SPA303230S1 |
SPA303240S1 |
SPA303250S1 |
SPA303260S1 |
|

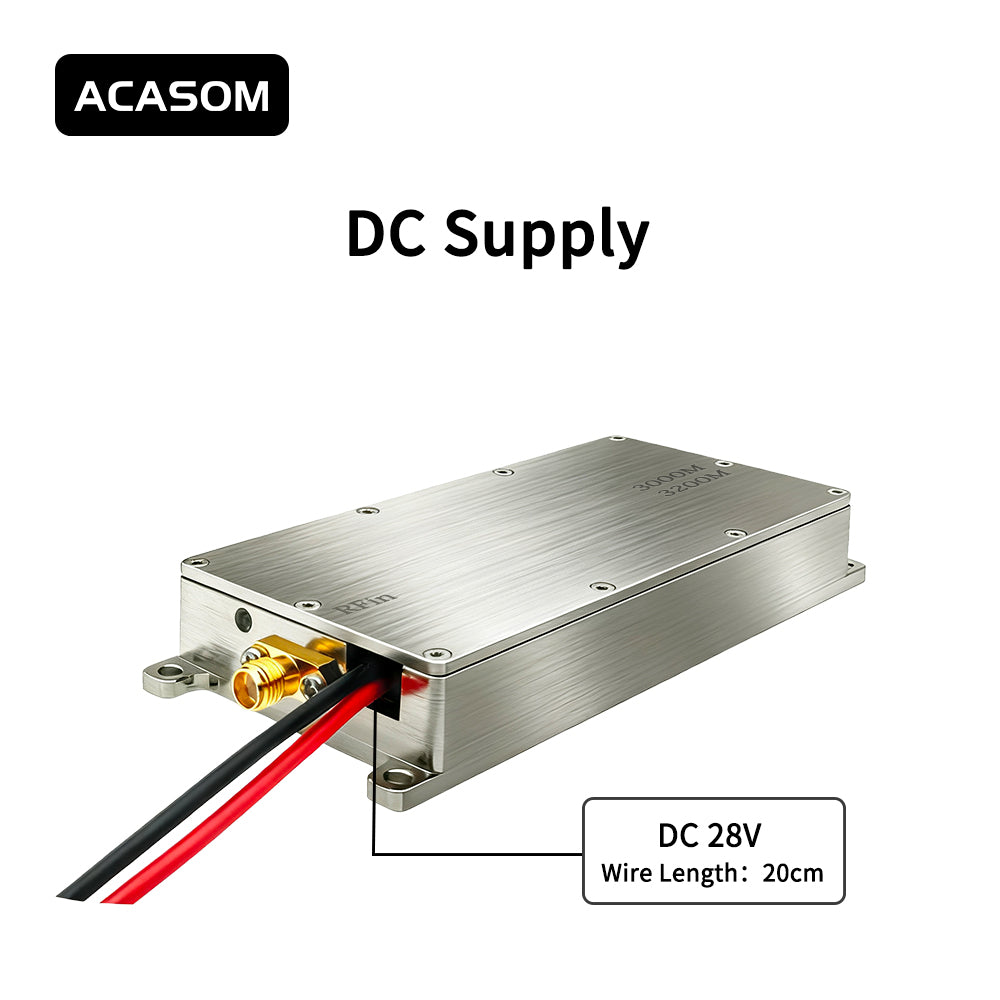

DC supply |
24V |
24V |
24V |
28V |
28V |
28V |
|
Current |
1.5A @24V |
1.8A @24V |
2.4A @28V |
3.2A @28V |
3.6A @28V |
4.2A @28V |
|
Gain(S21) |
40dB |
|||||
|
RF Input Power Range |
-13-10dBm |
|||||
|
Power Socket |
20cm red/black wire |
|||||
|
Efficiency |
45% |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|
Shell Material |
Aluminum |
|||||
|
RF Connector |
SMA -Female |
|||||
|
Input Return Loss(S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|
Shell Size |
132*53*17mm |
|||||
|
Net Weight |
210g |
|||||
Attentions
1）Keep good ventilation for heat dissipation，adding heat sink or radiator fan is recommend.
2）Comply with local radio spectrum regulatory requirements.
