Applications
Network communication: WiFi Routers, Repeaters, CPE, Wireless Cards, Optical Modems, etc.
Remote control signals: unmanned boats, drones, robotic dogs, remote-controlled robots
Audio/video&Aerial photography: WiFi cameras, video transmission modules, HDMI video transceivers, wireless microphones
Industrial/automation: ETC, WiFi car systems, in-vehicle wireless monitoring, industrial control modules
Features
High output power: 36dBm (4W) greatly boosting long-distance wireless signals.
Ultra-low noise: <2.5dB allowing stable transmission even with weak signals.
Wide voltage range: 6~16V compatible with various power supply scenarios.
Specifications
|
Items |
Specifications |
||||||
|
Output Power |
4W(36dBm) |
||||||
|
Frequency Range |
350-450MHz |
450-550MHz |
860-930MHz |
2.4-2.485GHz |
5.15-5.35GHz |
5.725-5.85GHz |
6.0-7.2GHz |
|
Model No. |
DPA030404S1 |
DPA040504S1 |
DPA080904S1 |
DPA242504S1 |
DPA515304S1 |
DPA575804S1 |
DPA607204S1 |
|
DC Supply |
6-16 V |
6-16 V |
6-16 V |
6-16 V |
6-16 V |
6-16 V |
7-36V |
|
Receiving Gain |
18 dB |
||||||
|
Transmission Gain: |
18 dB |
||||||
|
Input Trigger Power |
Min:3dBm Max:20dBm |
||||||
|
EVM |
3%@27dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
||||||
|
Noise Figure |
＜2.5dB |
||||||
|
TX/RX Switch Time Delay |
＜1 us |
||||||
|

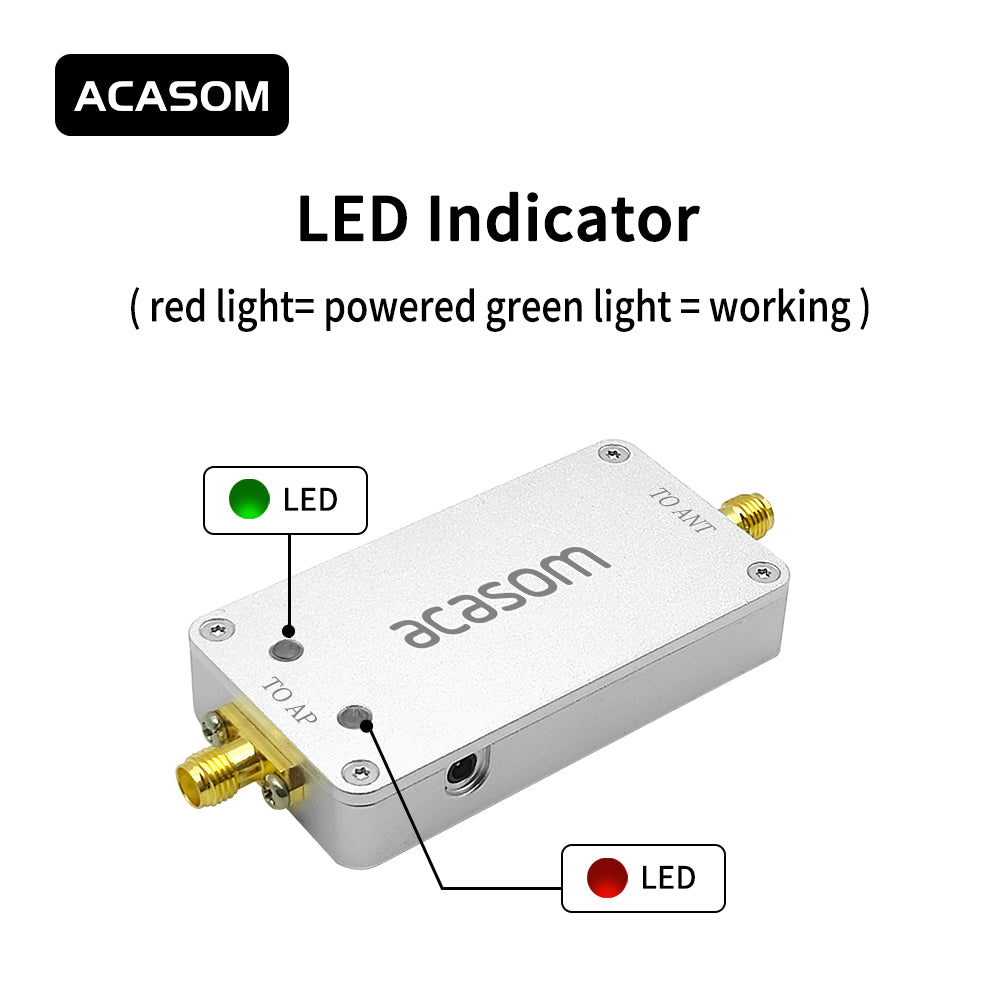

LED Indicator |
Red light:Powered; Green light:working |
||||||
|
Operating Temperature |
-30°C～+70°C |
||||||
|
Storage Temperature |
-40°C～+150°C |
||||||
|
Operating Humidity |
Up to 95% rel. humidity |
||||||
|

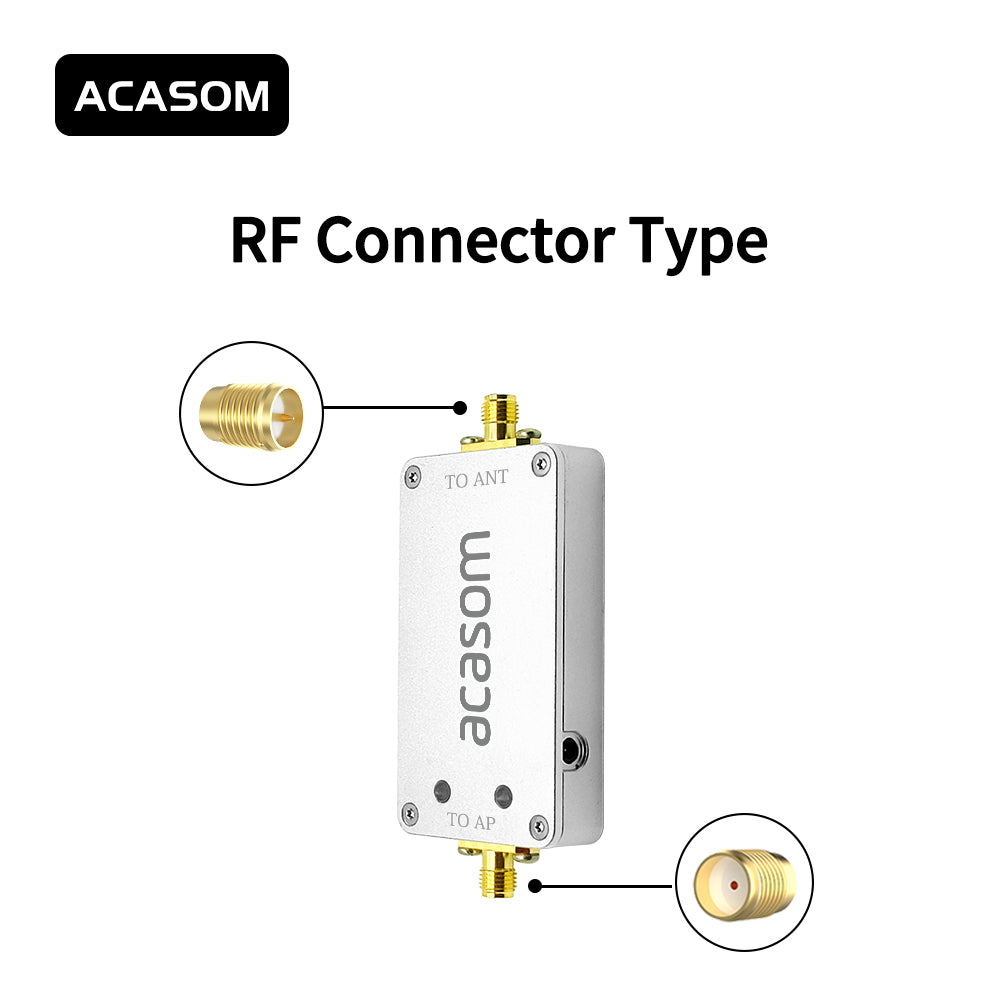

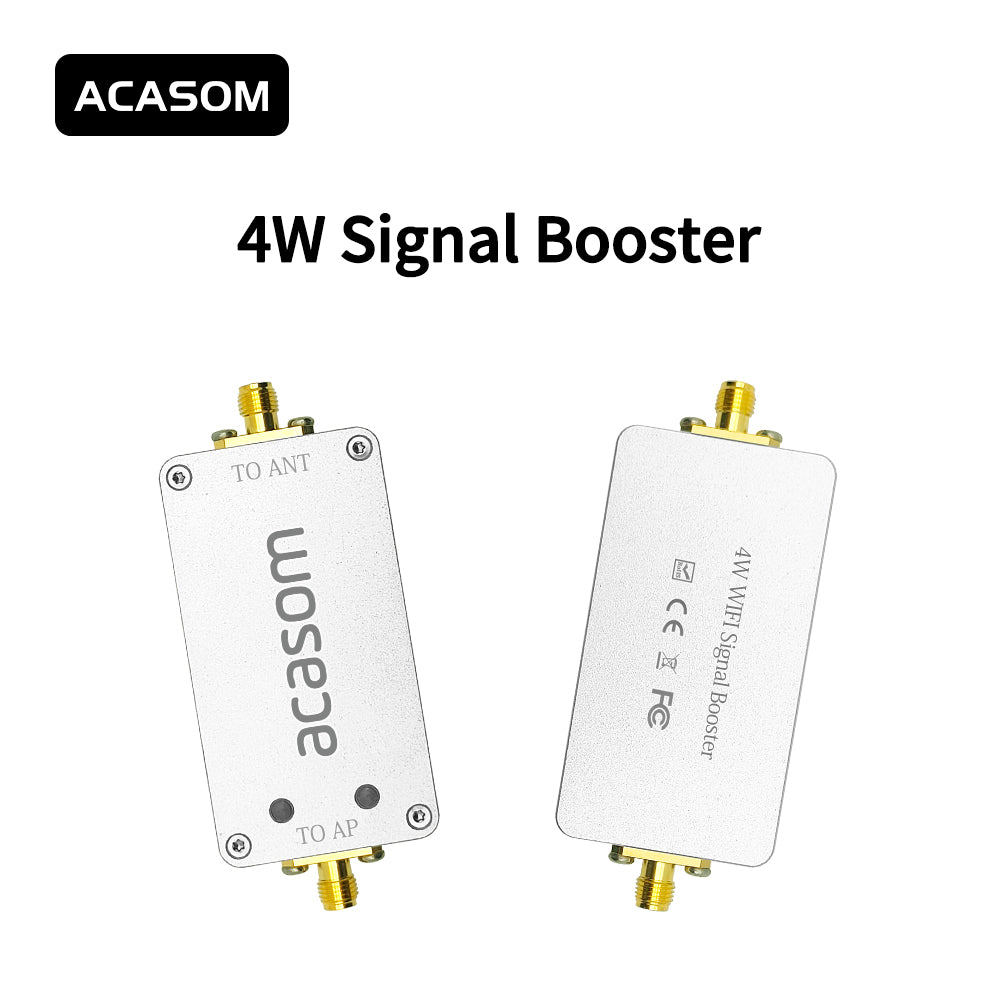

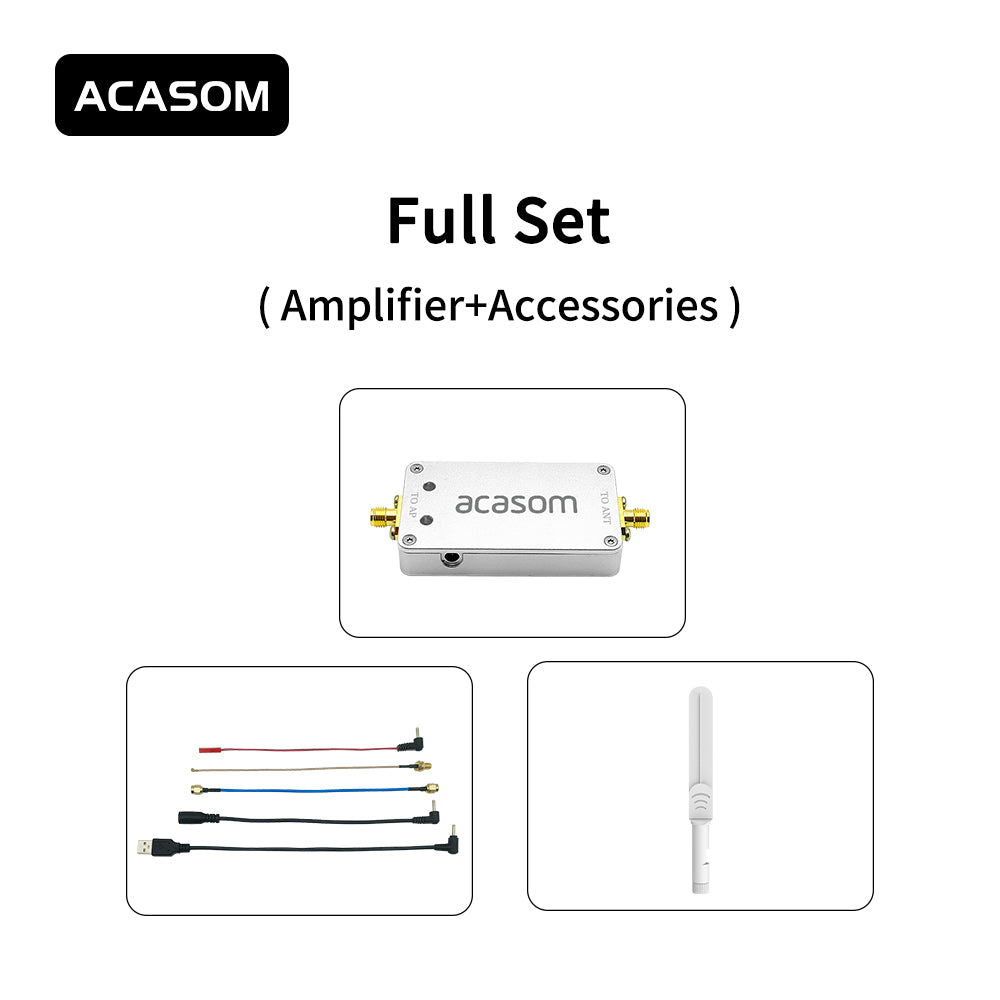

RF Connector |
Input: SMA-Female; Output: SMA-Male |
||||||
|

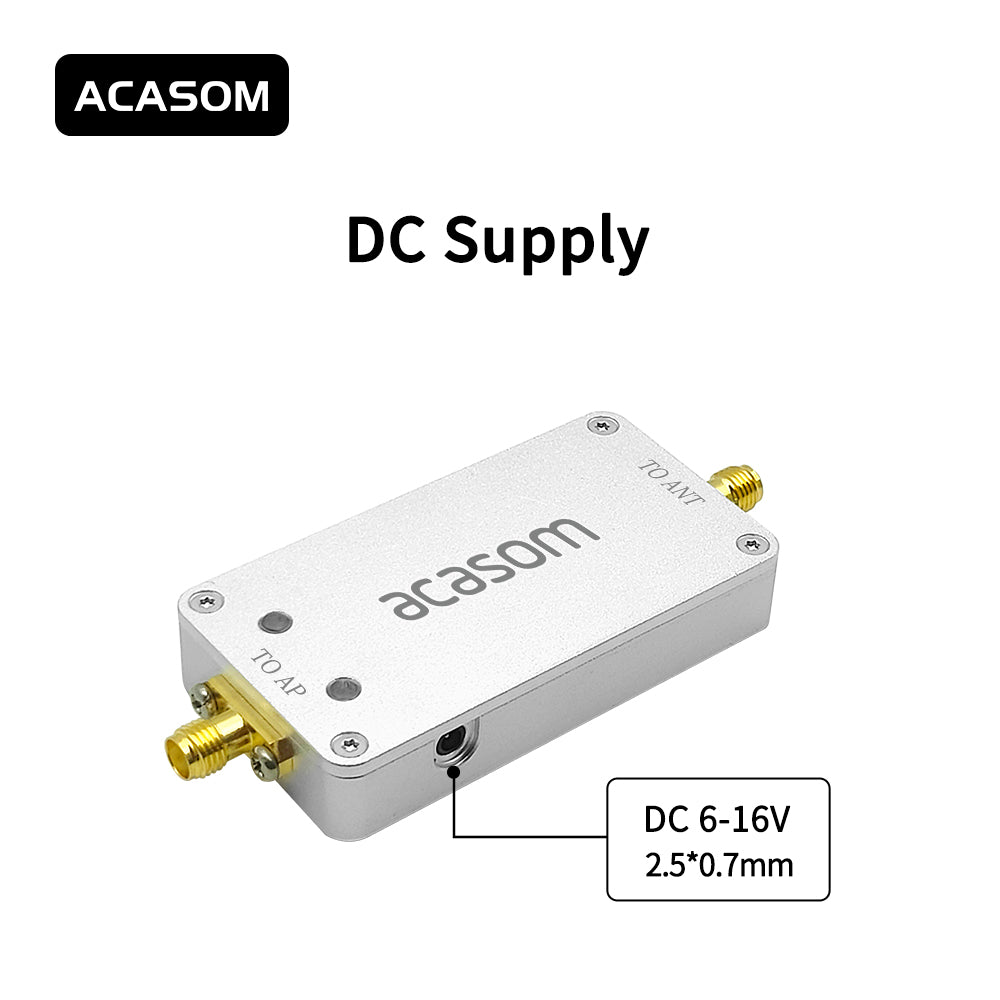

Power Socket |
2.5*0.7mm DC( default ) |
||||||
|

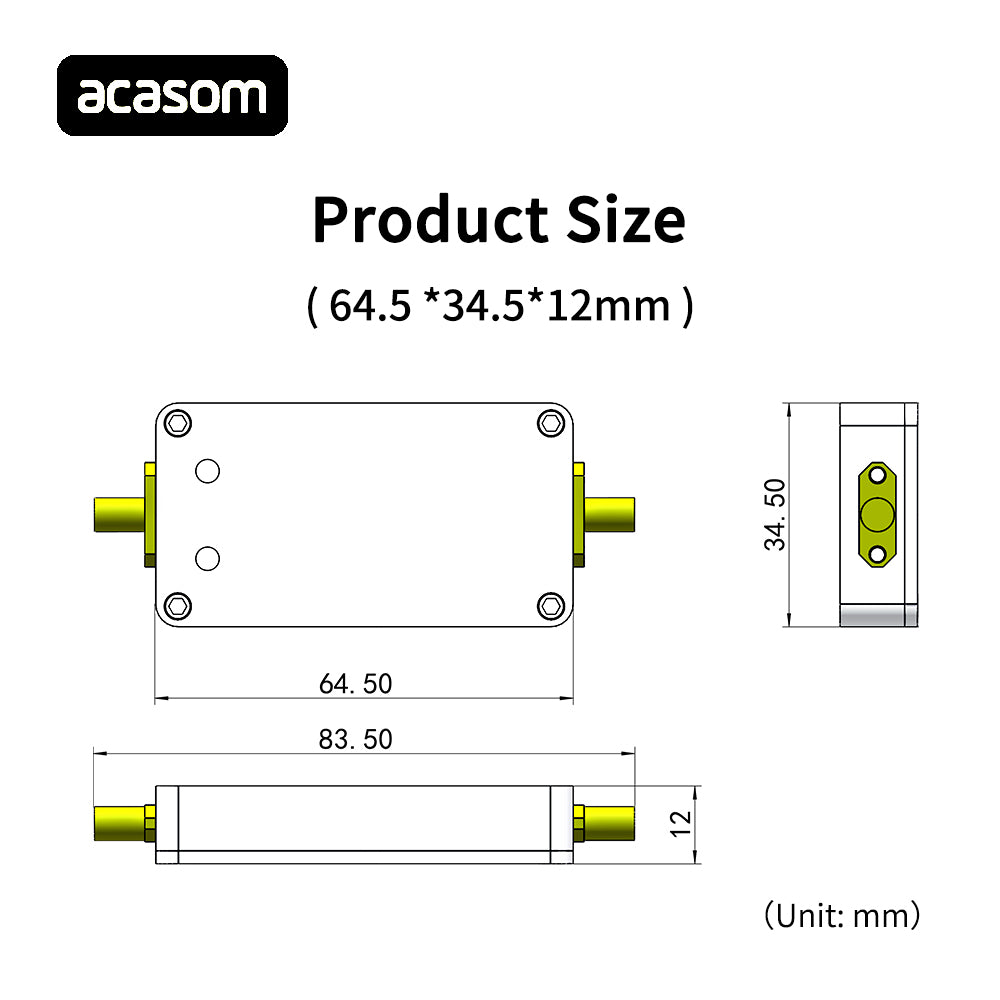

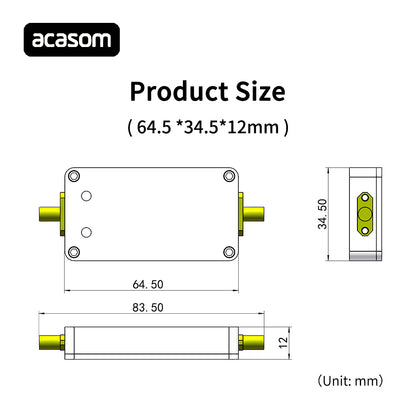

Shell Size |
64.5*34.5*12mm |
||||||
|
Shell Material |
Aluminum |
||||||
|
Net Weight |
70g |
||||||
Attentions
1）The input power shall NOT exceed 20dBm to avoid damage.
2）Connect antenna and secure all cables before power-on,do not power on without antenna load.
3）Power supply recommended: 10W:24V@2A; 20W:24V@3A; 30W:28V@4A; 40W:28V@5A; 50W:28V@5A; 60W:28V@6A.
4）Maintain good ventilation for heat disspation,a heat sink or cooling fan is recommended.
5）Never swap RFin /ANT ports,reversed wiring will damage the booster.
