About this product

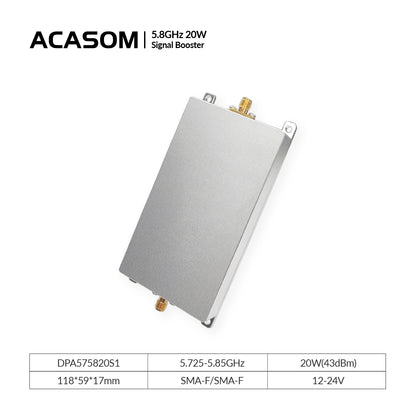

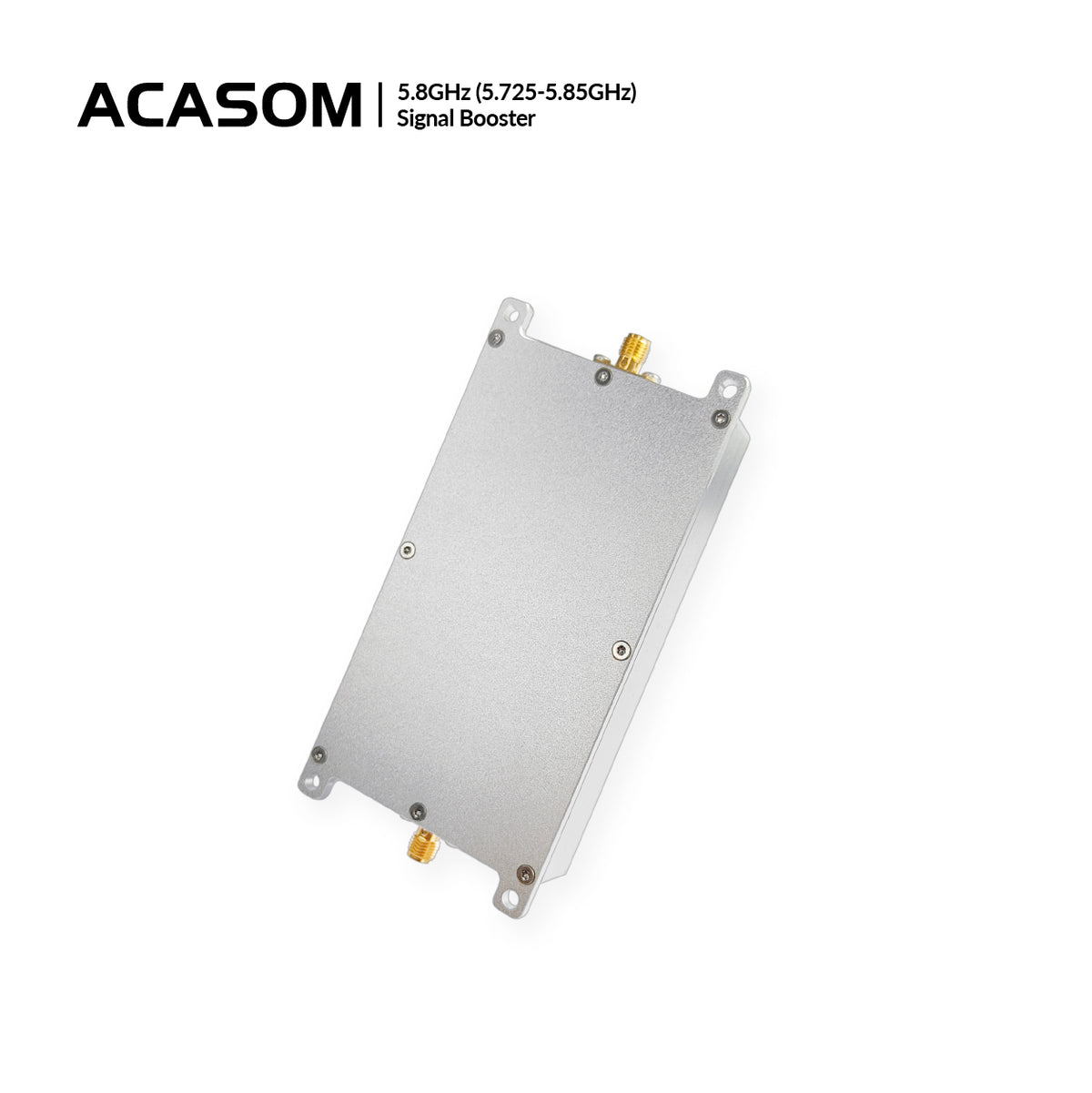

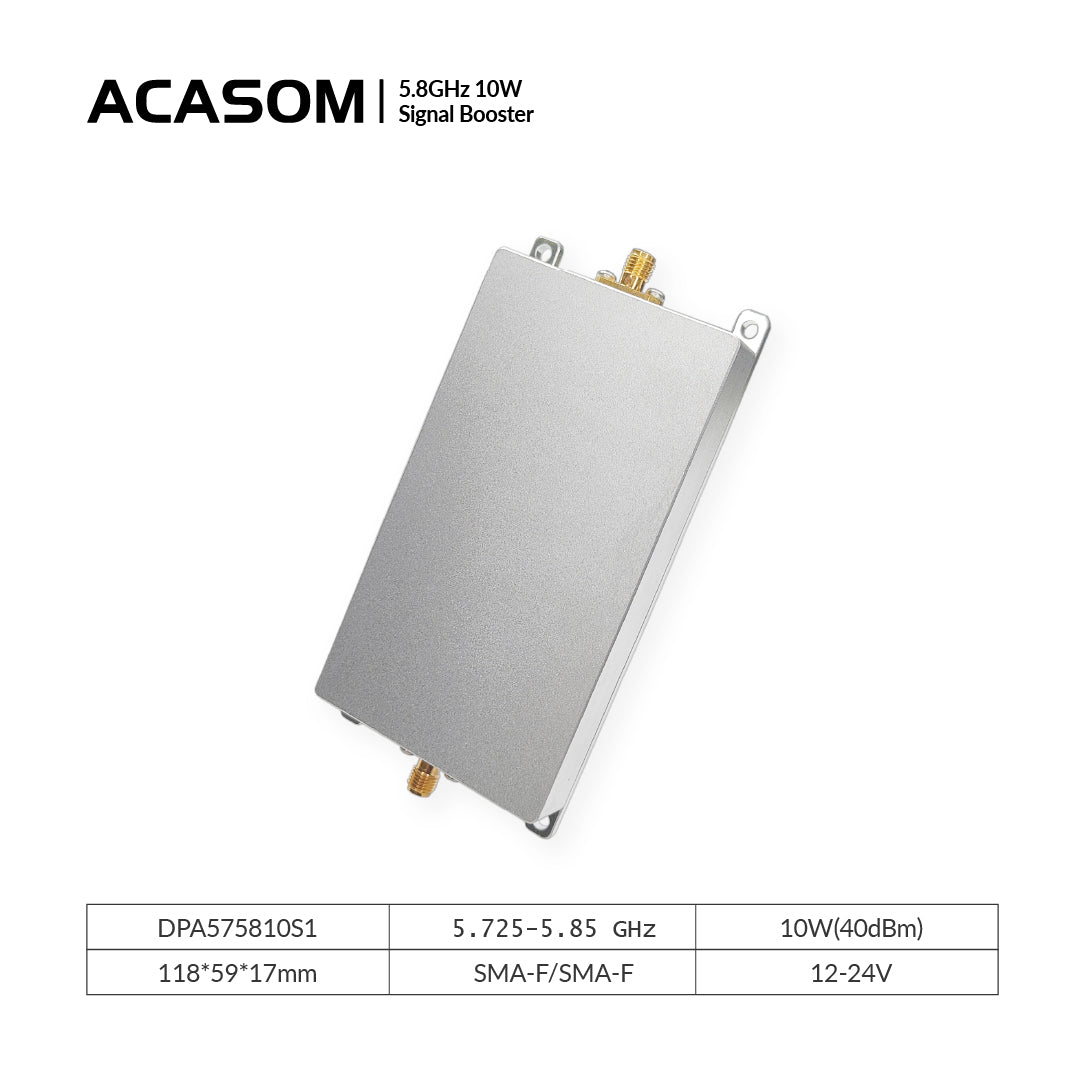

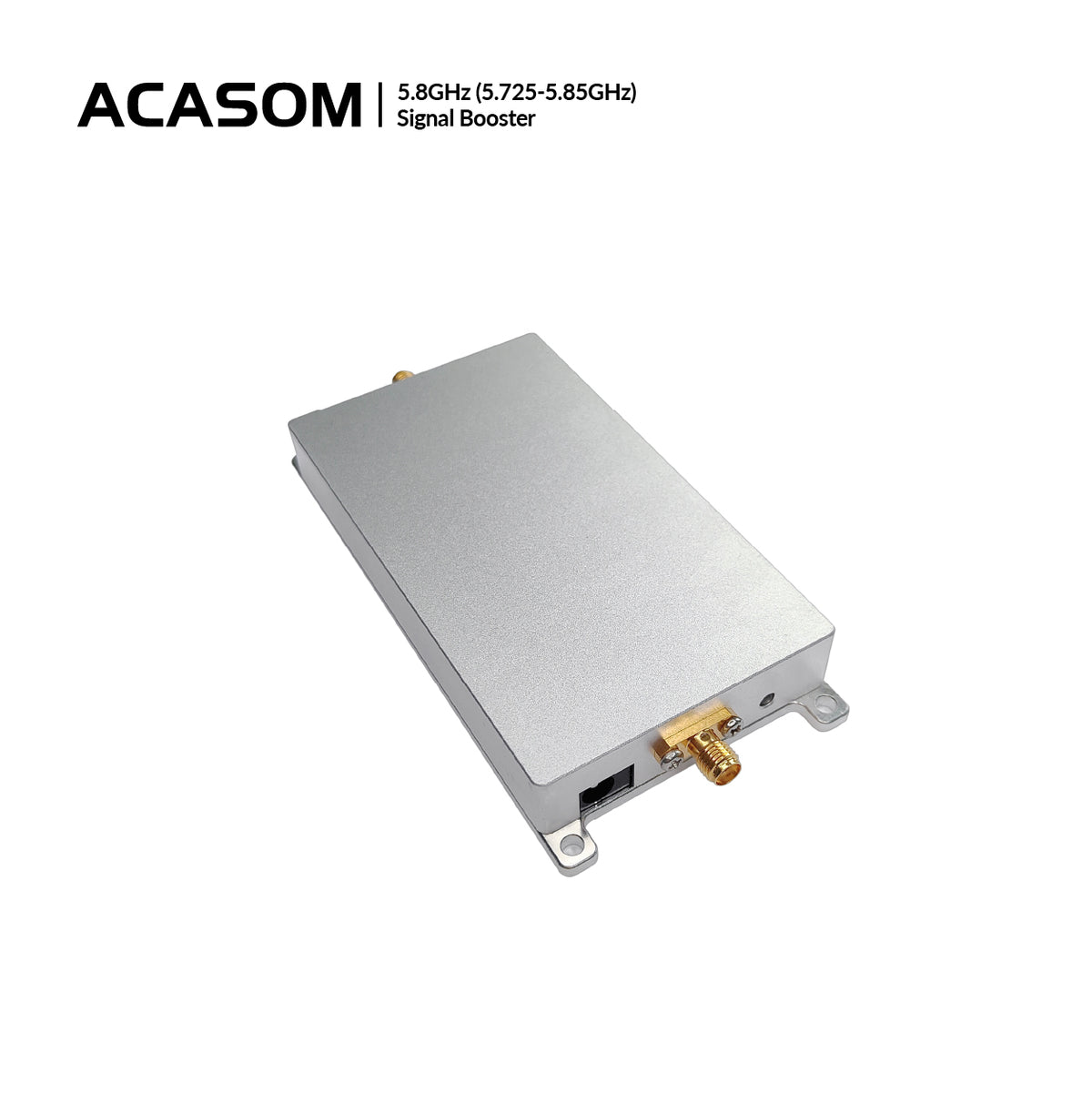

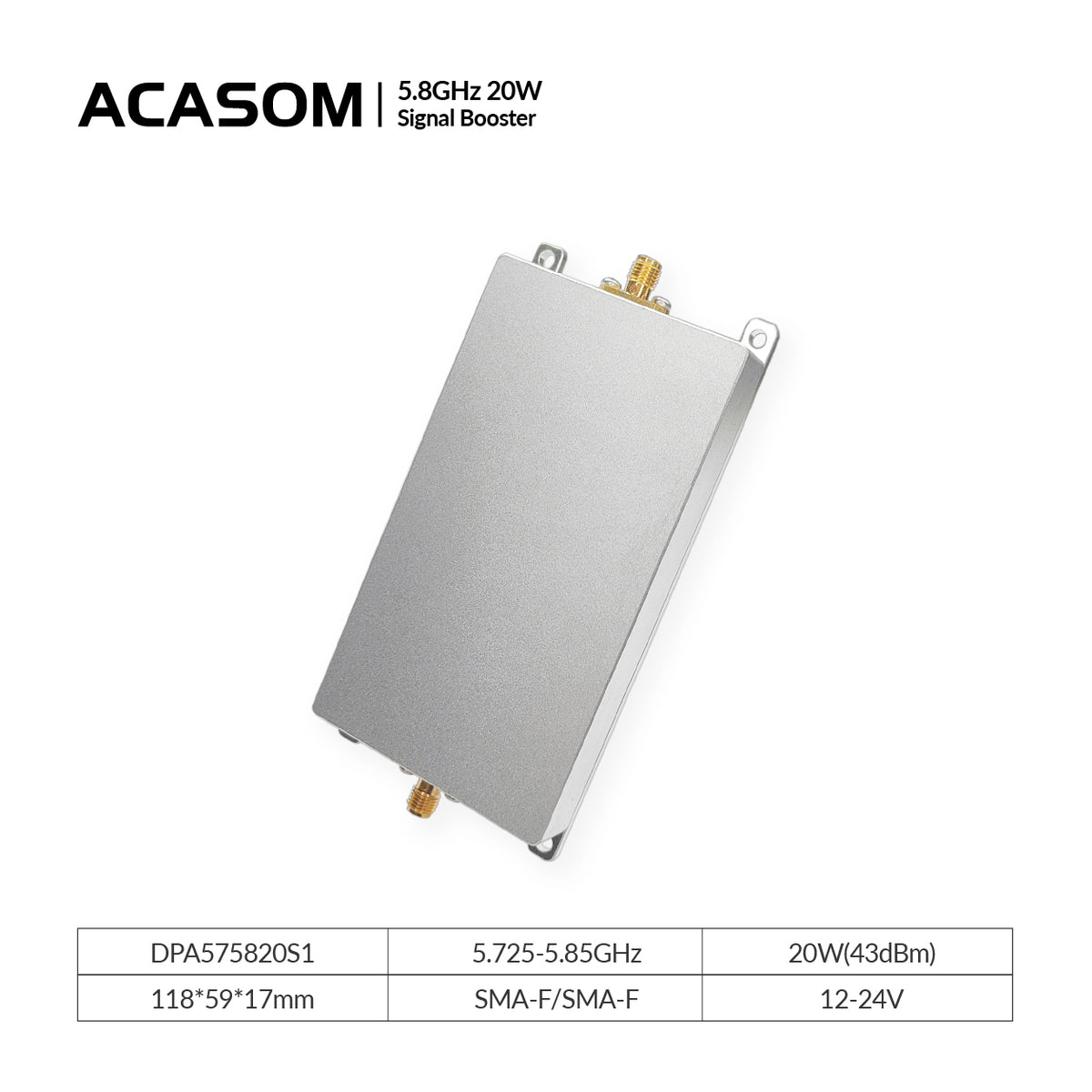

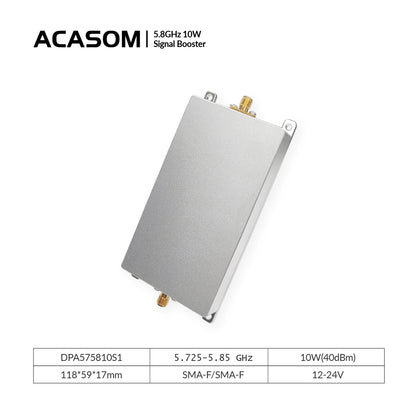

This high-performance RF signal booster designed for long-range wireless communication and C-band transmission systems. Featuring low-noise design, high linearity amplification and fast TX/RX switching technology.This booster significantly enhances signal strength, transmission distance and communication reliability in complex environments.The device supports plug-and-play operation and is suitable for telemetry systems, industrial wireless communication, long-range data transmission.
Features
Maximum output power up to 40dBm (40W)
Ultra-low noise figure ≤2.5dB
High TX/RX gain for long-range transmission
Fast TX/RX switching time ≤1μs
Specification
|
Items |
Specifications |
|
|
Frequency Range |
5.725-5.85 GHz |
|
|
Output Power |
10W(40dBm) |
20W(43dBm) |
|
Model No. |
DPA575810S1 |
SPA575820S1 |
|
DC Supply |
12-24 V |
|
|
Receiving Gain |
18 dB |
|
|
Transmission Gain: |
18 dB |
|
|
Noise Figure |
＜2.5dB |
|
|
TX/RX Switch Time Delay |
＜1 μs |
|
|
Operating Temperature |
-30°C～+70°C |
|
|
Storage Temperature |
-40°C～+150°C |
|
|
Operating Humidity |
Up to 95% |
|
|
RF Connector |
Input: SMA-Female; Output: SMA-Female |
|
|
Power Socket |
5.5*2.1mm DC( default ) |
|
|
Shell Size |
118*59*17mm |
|
|
Shell Material |
Aluminum |
|
|
Net Weight |
200g |
|
Attentions
1）The input power shall NOT exceed 20dBm to avoid damage.
2）Connect antenna and secure all cables before power-on,do not power on without antenna load.
3）Power supply recommended: 10W:24V@2A; 20W:24V@3A.
4）Maintain good ventilation for heat disspation,a heat sink or cooling fan is recommended.
5）Never swap RFin /ANT ports,reversed wiring will damage the booster.
