Applications
Secure two-way voice & data – strengthens walkie-talkie and mobile radio communication in factories, warehouses, campuses and field teams
IoT & smart sensing – drives long-range data links for RFID readers, smart meters, sensors and control radar modules
Remote field & industrial instrumentation – powers reliable transmission for weather stations, buoy telemetry, test equipment and industrial control modules in harsh sites
Features
40dB Gain – amplifies weak input signals into clean, high-power output up to 60W (48dBm)
±0.5dB Gain Flatness – uniform output across the full 200-300MHz band, no dropped channels at band edges

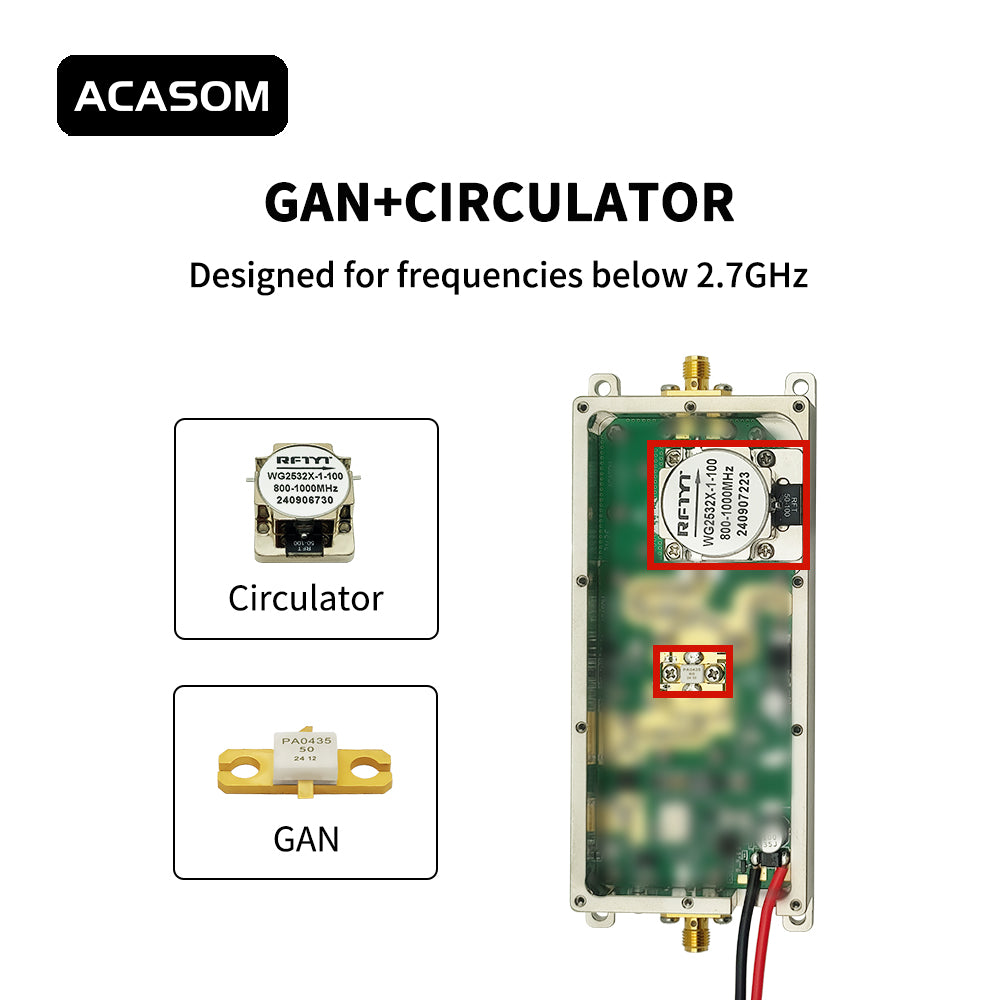

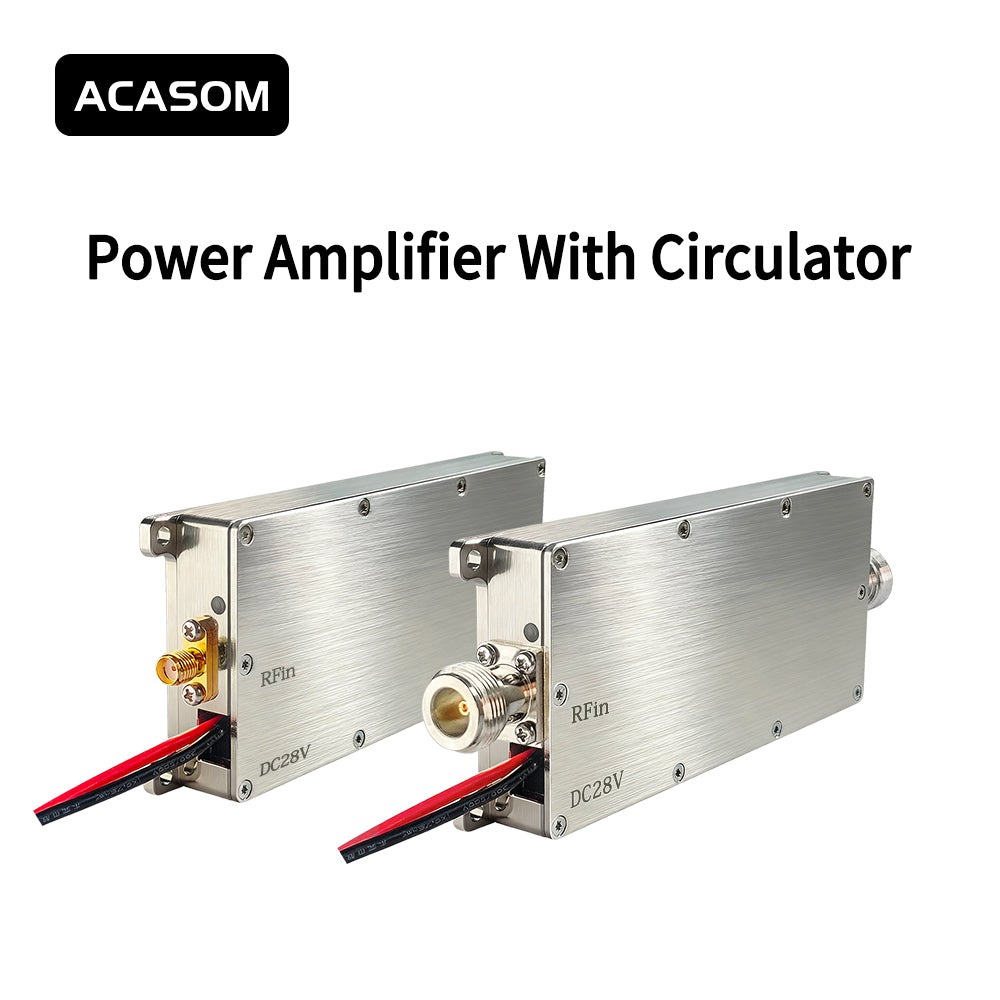

Easy Integration & Protection – built-in circulator for load protection, rugged aluminum housing, SMA/N connectors and simple red/black DC wiring
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
200-300MHz |
|||||
|
Output Power |
10W(40dBm) |
20W(43dBm) |
30W(45dBm) |
40W(46dBm) |
50W(47dBm) |
60W(48dBm) |
|
SMA Type Model No. |
SPA020310SC1 |
SPA020320SC1 |
SPA020330SC1 |
SPA020340SC1 |
SPA020350SC1 |
SPA020360SC1 |
|
N Type Model No. |
SPA020310NC1 |
SPA020320NC1 |
SPA020330NC1 |
SPA020340NC1 |
SPA020350NC1 |
SPA020360NC1 |
|
DC supply |
24V |
24V |
24V |
28V |
28V |
28V |
|
Current |
1.1A @24V, 40dBm |
2.2A @24V, 40dBm |
2.8A @24V, 40dBm |
3.2A @28V, 40dBm |
3.6A @28V, 40dBm |
4.2A @28V, 40dBm |
|
Gain(S21) |
40dB |
|||||
|

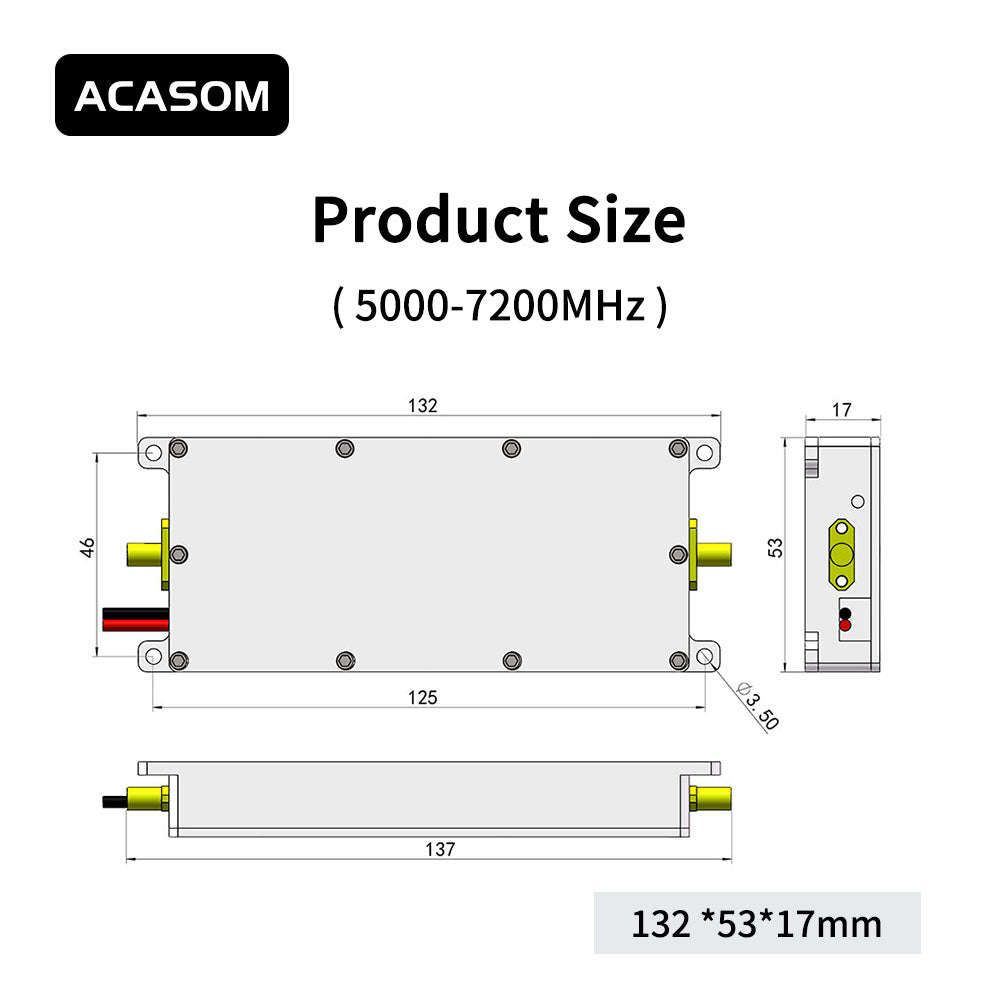

Shell Size |

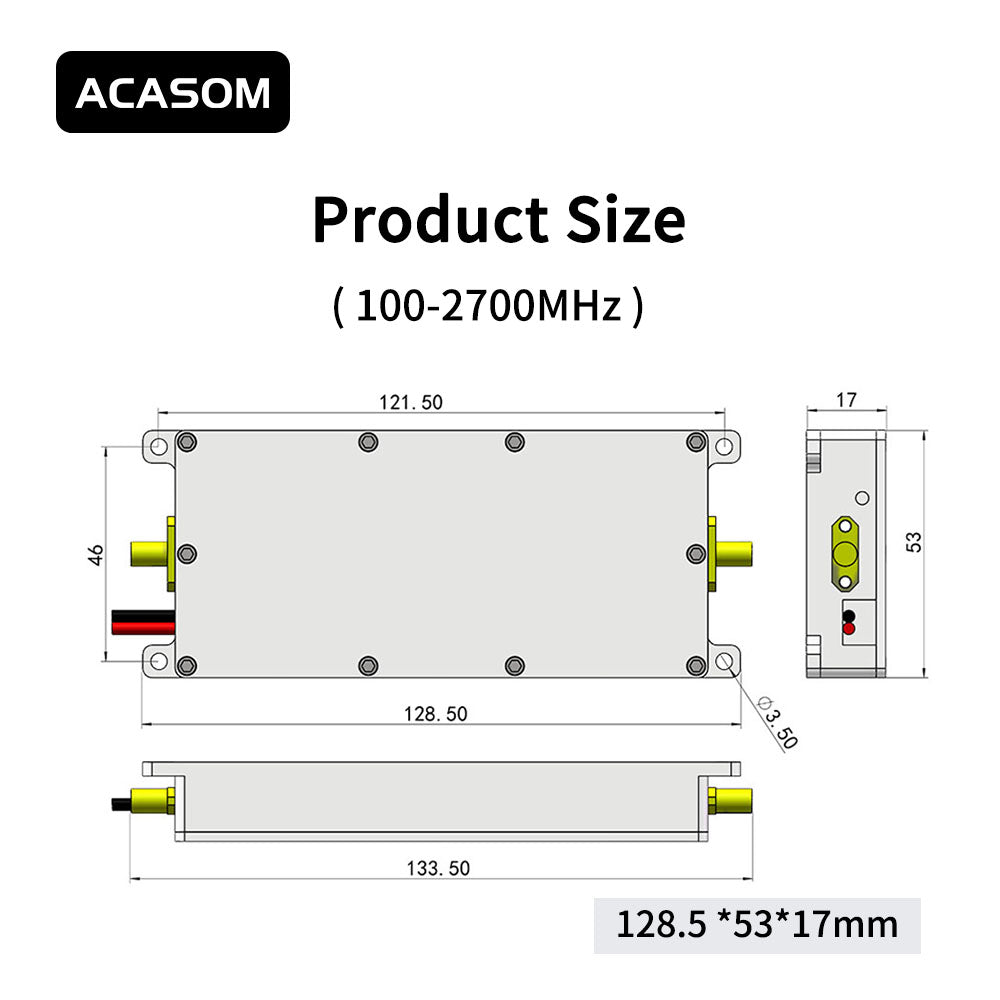

128.5*53*17mm/132*53*17mm |
|||||
|
Net Weight |
0.26Kg |
|||||
|
Power Socket |

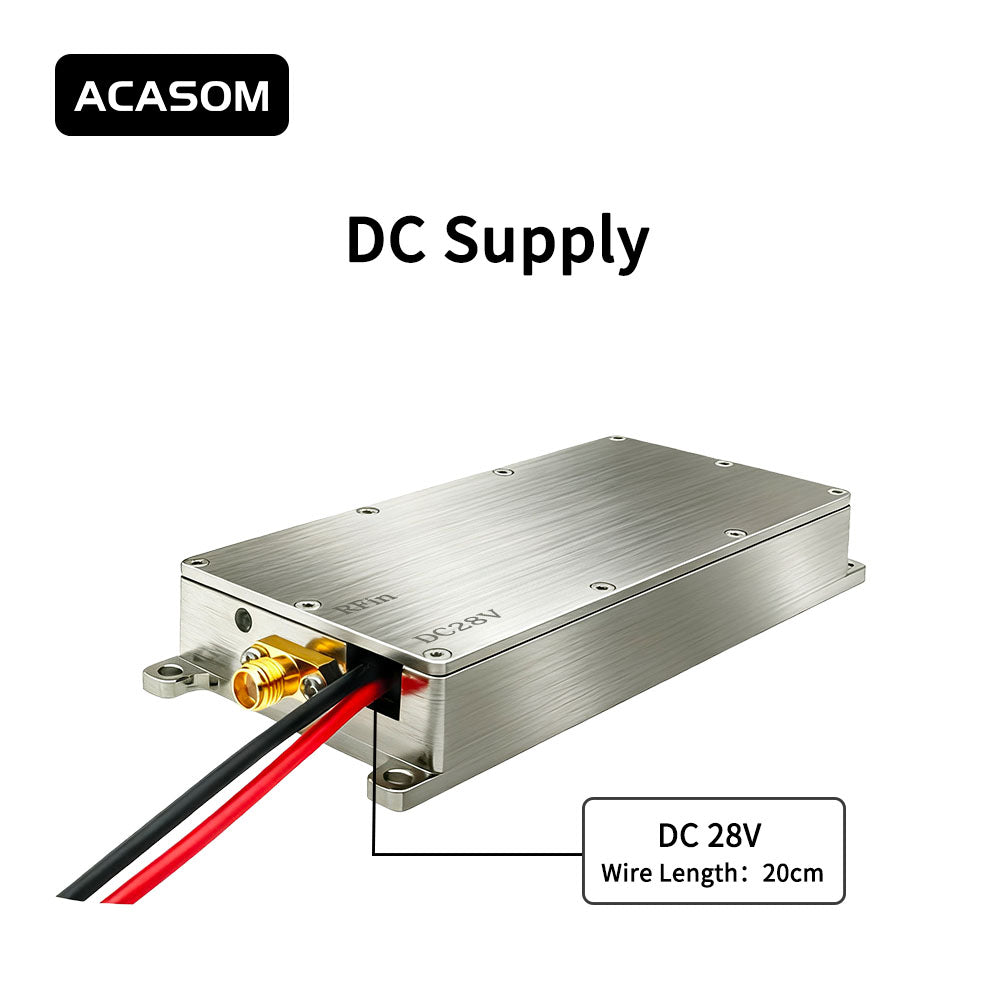

20cm red/black wire |
|||||
|
Efficiency |
45%@40dBm |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|
Shell Material |
Aluminum |
|||||
|
RF Connector |

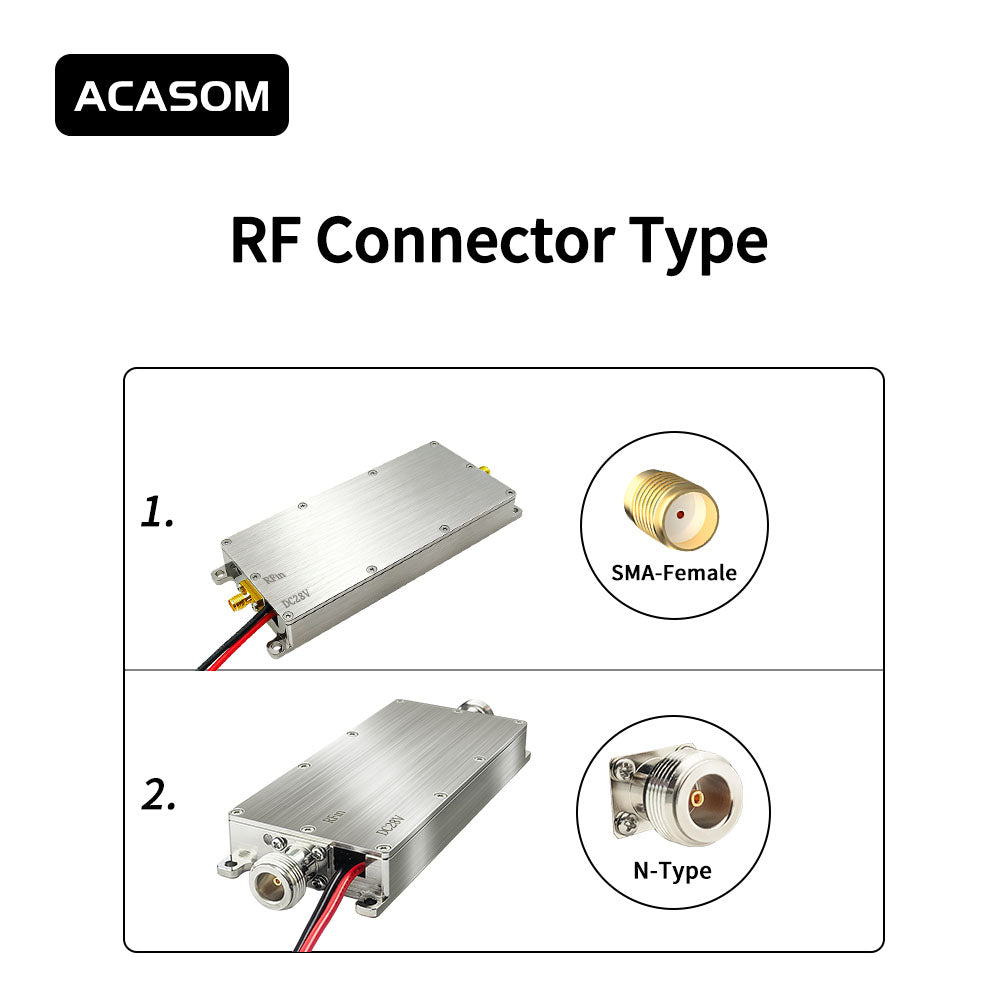

SMA Type / N Type |
|||||
|
Input Return Loss(S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|

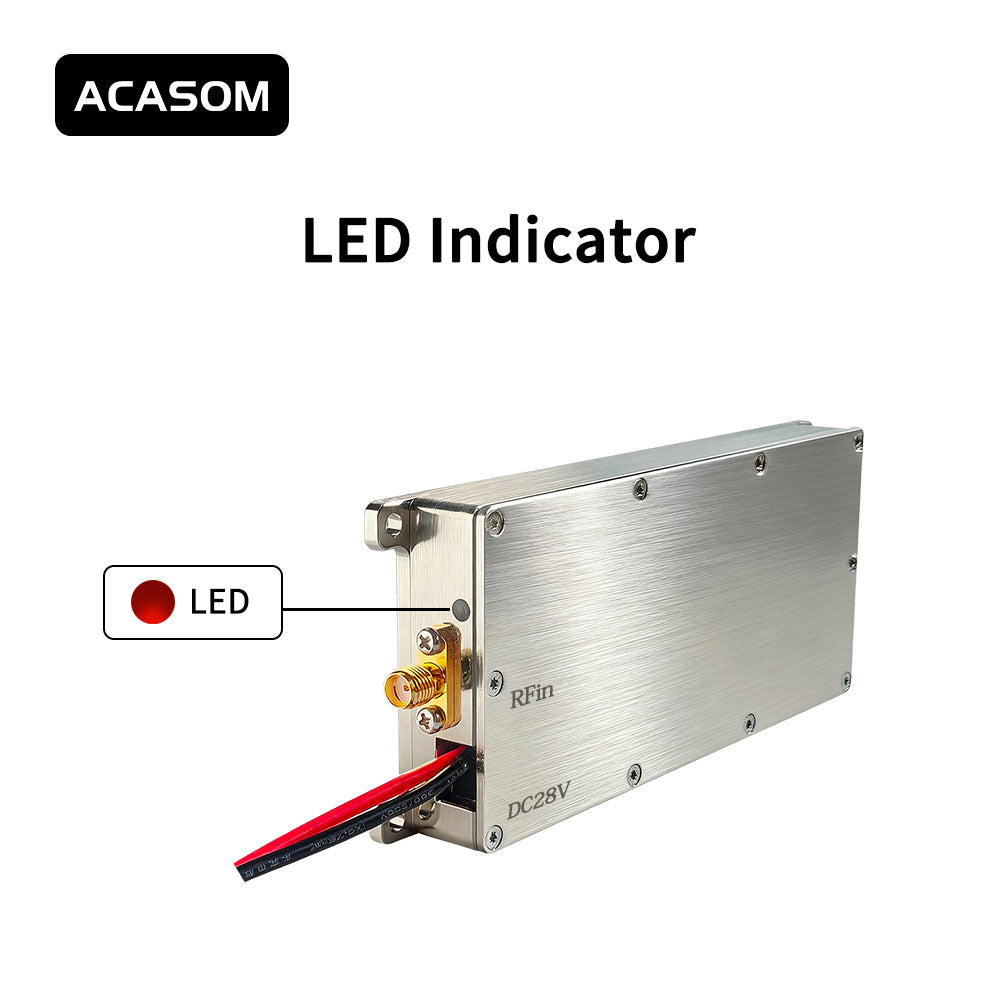

LED State |
Red |
|||||
Attentions
1）The input power shall not exceed 10dBm to avoid damage.
2）Always connect antenna before power on, never power on without antenna load.
3）Power supply range 24-28V, clean power source recommended：24V with 2A current，28V with 1.5A current
4）Keep good ventilation for heat dissipation，adding heat sink or radiator fan is recommend.
5）Comply with local radio spectrum regulatory requirements.
