Applications
Audio＆video – WiFi cameras, HDMI video transceivers, wireless microphones etc.
IoT & smart sensing – long-range data links for RFID readers, smart meters, sensors and control radar modules
Remote field & industrial instrumentation – reliable transmission for weather

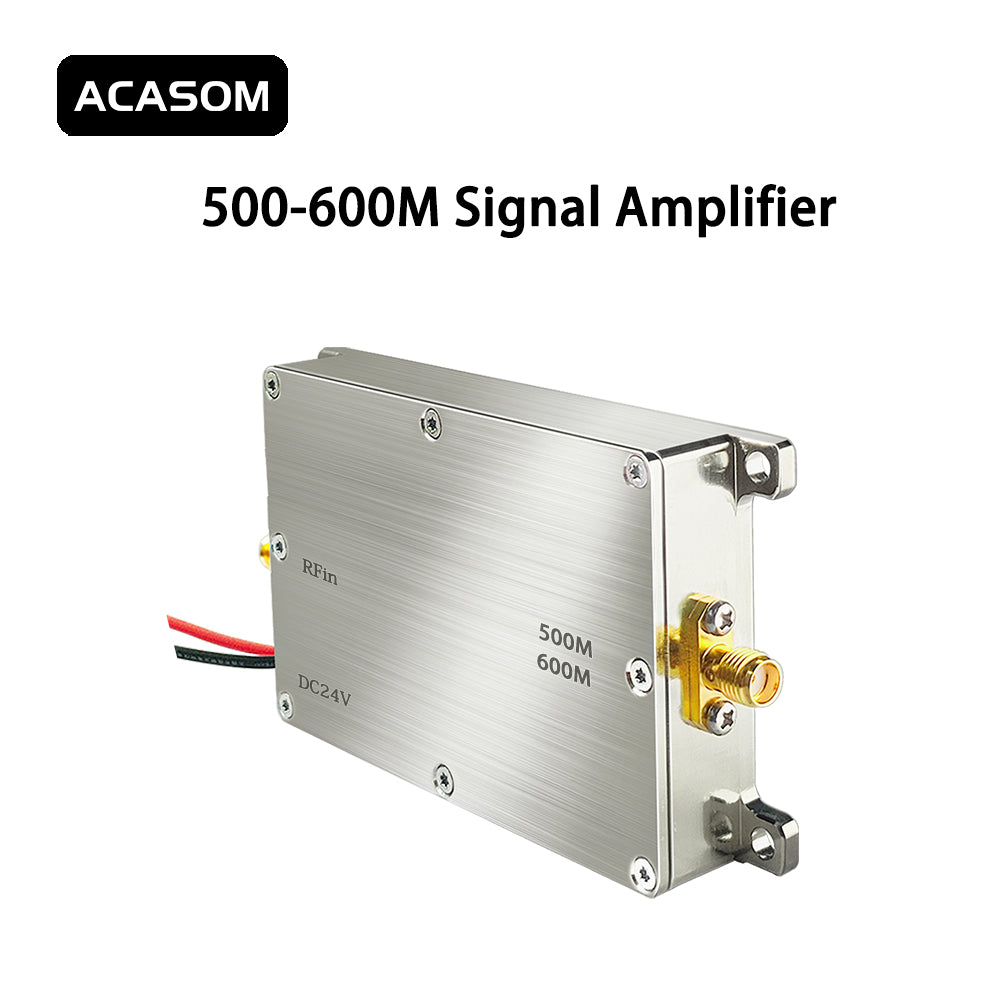

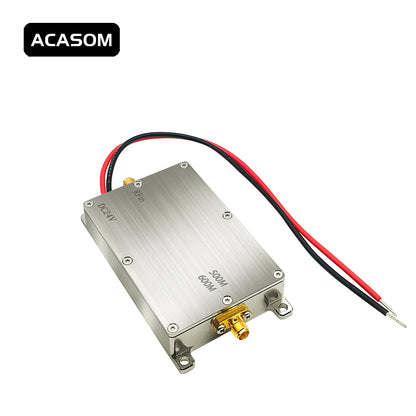

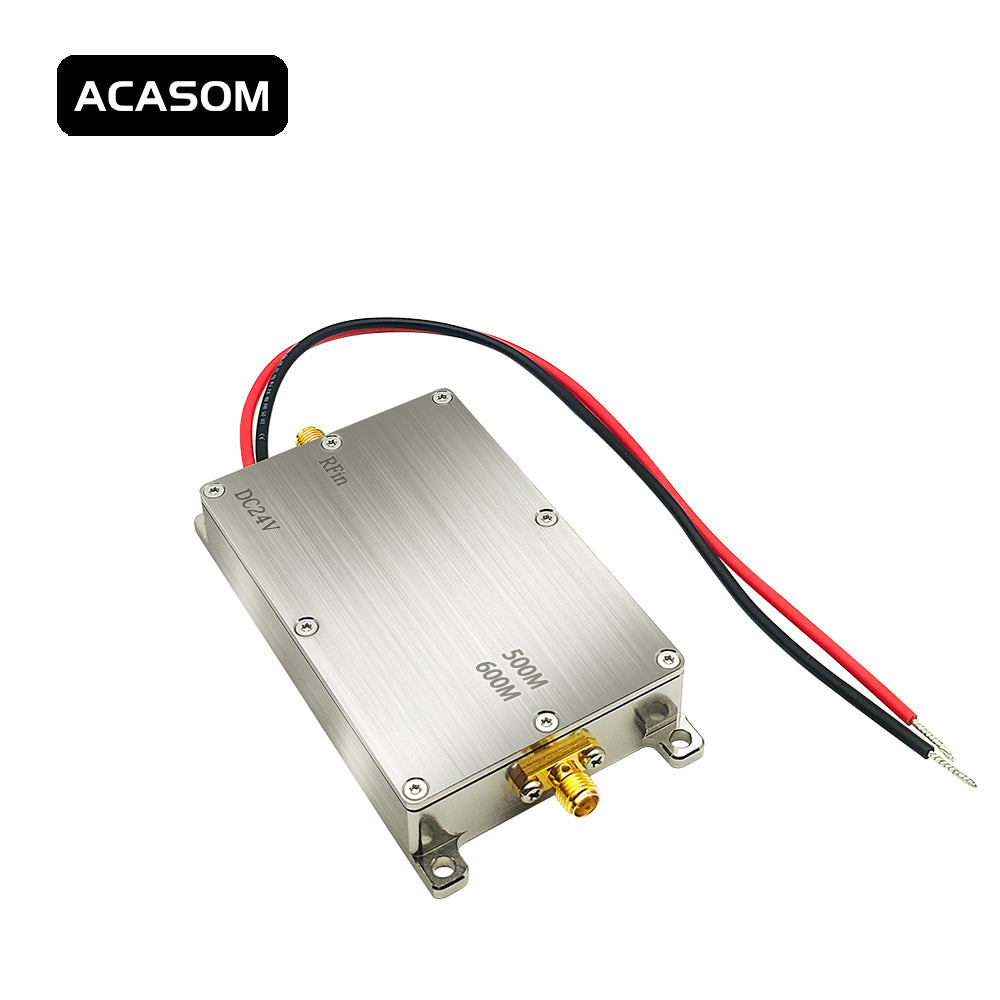

Features
40dB High Gain – amplifies weak input signals into clean, high-power output up to 60W (48dBm)
±0.5dB Gain Flatness – uniform output across the full 500-600MHz band, no dropped channels at band edges

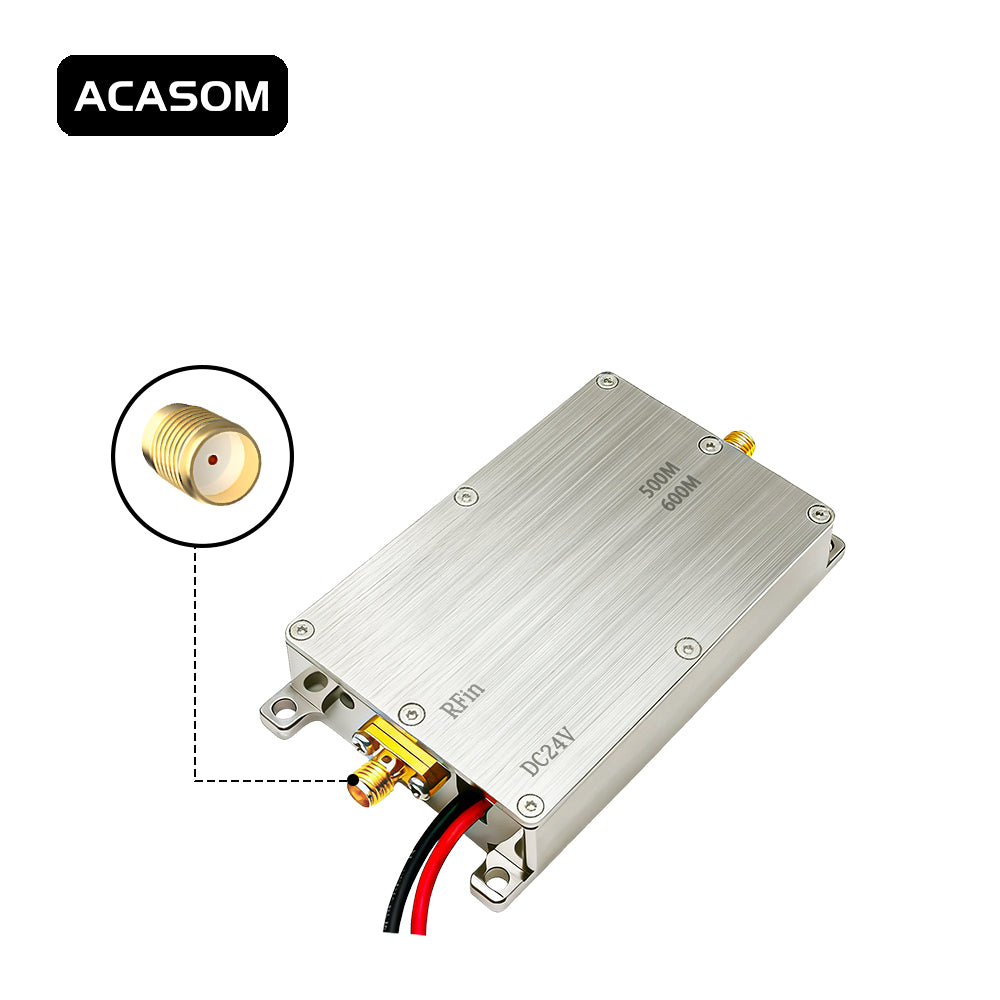

SMA RF Connector – simple, reliable integration with antennas and RF systems
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
500-600MHz |
|||||
|
Output Power |
10W(40dBm) |
20W(43dBm) |
30W(45dBm) |
40W(46dBm) |
50W(47dBm) |
60W(48dBm) |
|
Model No. |
SPA050610S1 |
SPA050620S1 |
SPA050630S1 |
SPA050640S1 |
SPA050650S1 |
SPA050660S1 |
|
DC supply |
24V |
24V |
24V |
28V |
28V |
28V |
|
Current |
1.1A @24V, 40dBm |
2.2A @24V, 40dBm |
2.8A @24V, 40dBm |
3.2A @28V, 40dBm |
3.6A @28V, 40dBm |
4.2A @28V, 40dBm |
|

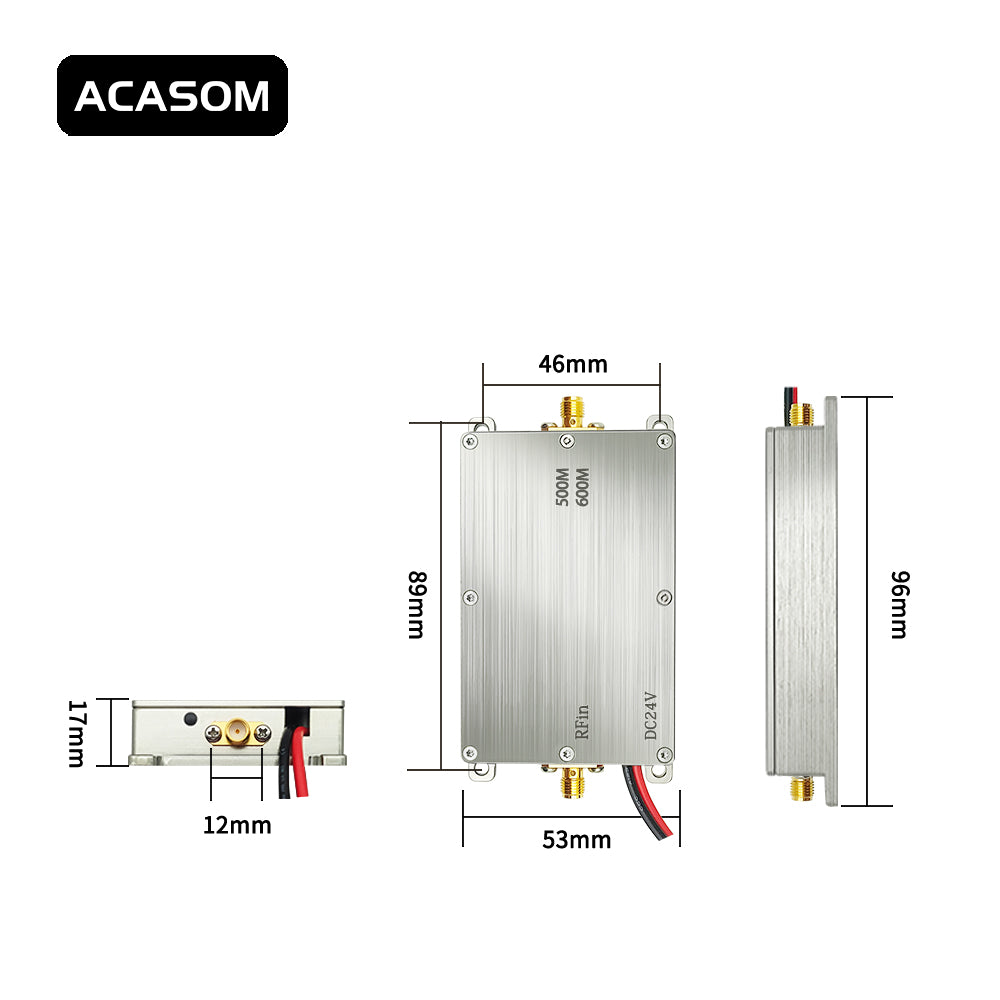

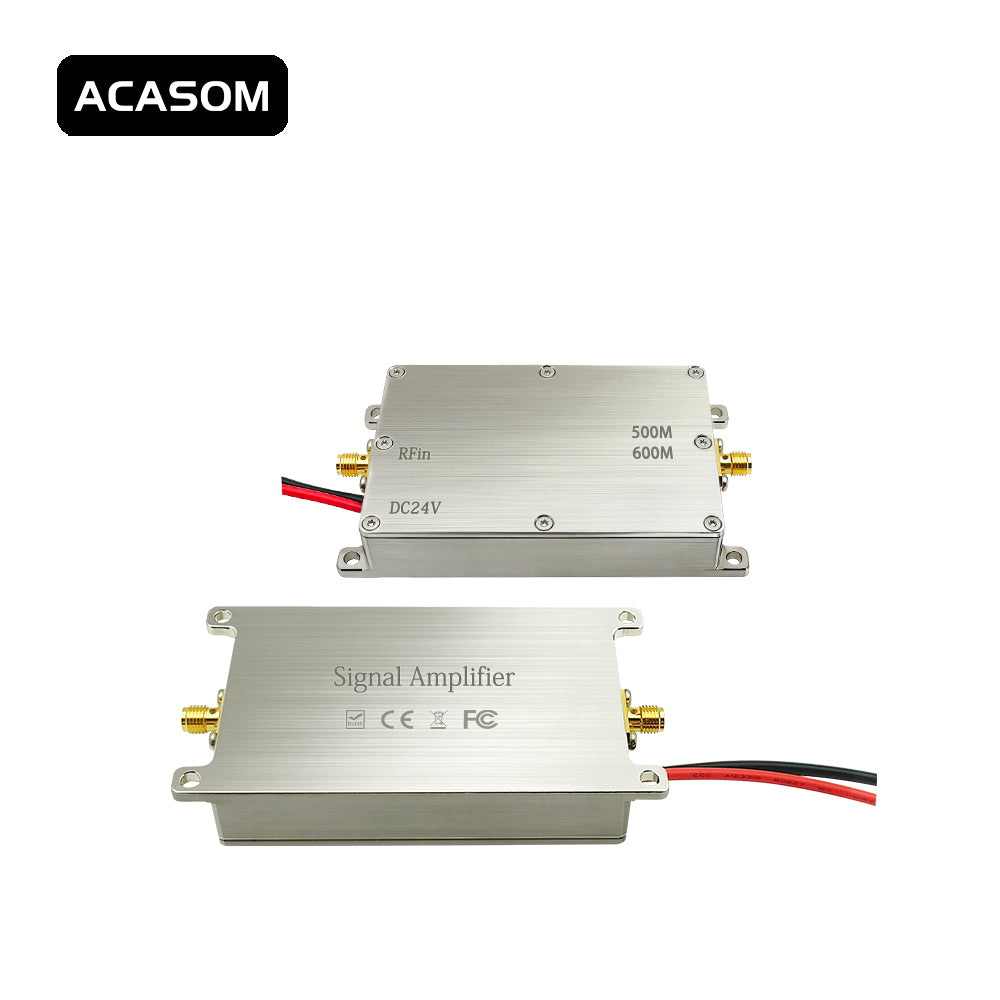

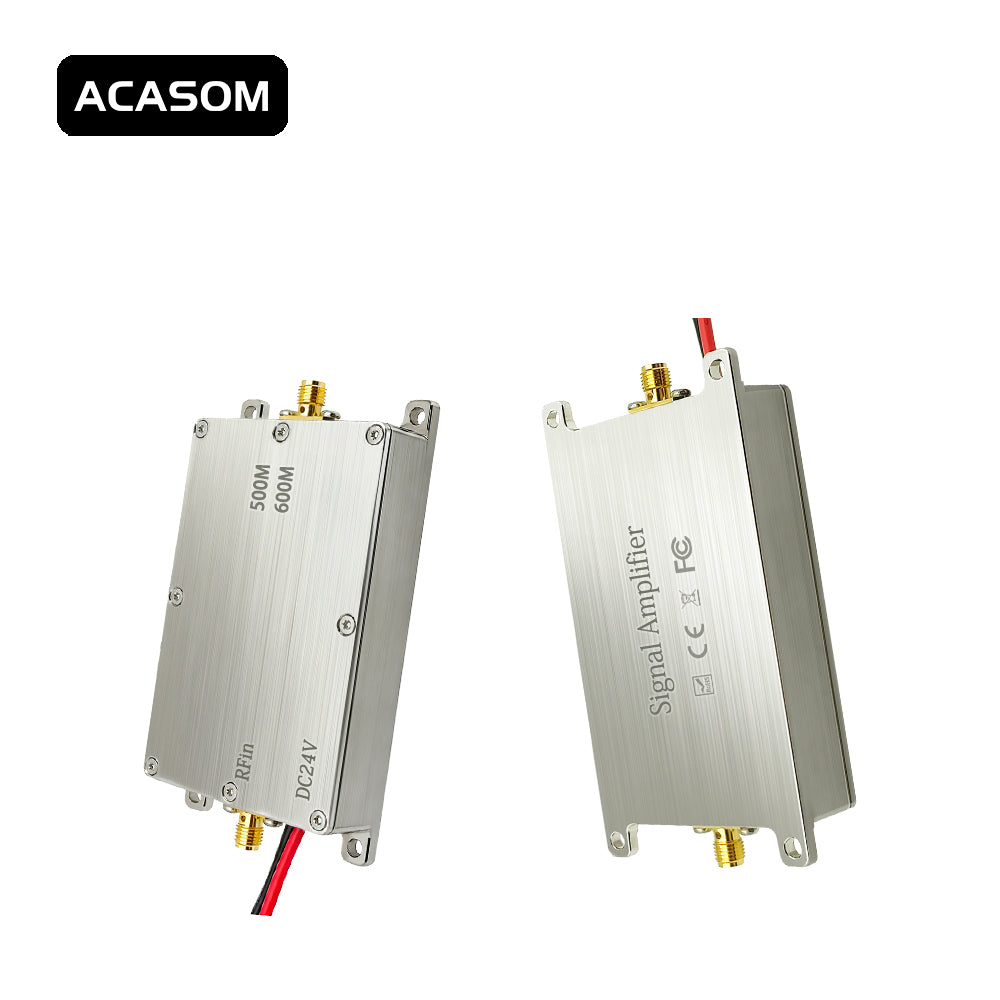

Shell Size |
96*53*17mm |
|||||
|
Net Weight |
0.13Kg |
|||||
|
Power Socket |
20cm red/black wire |
|||||
|
Efficiency |
45%@40dBm |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|
Shell Material |
Aluminum |
|||||
|
RF Connector |
SMA-Female |
|||||
|
Gain(S21) |
40dB |
|||||
|
Input Return Loss(S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|

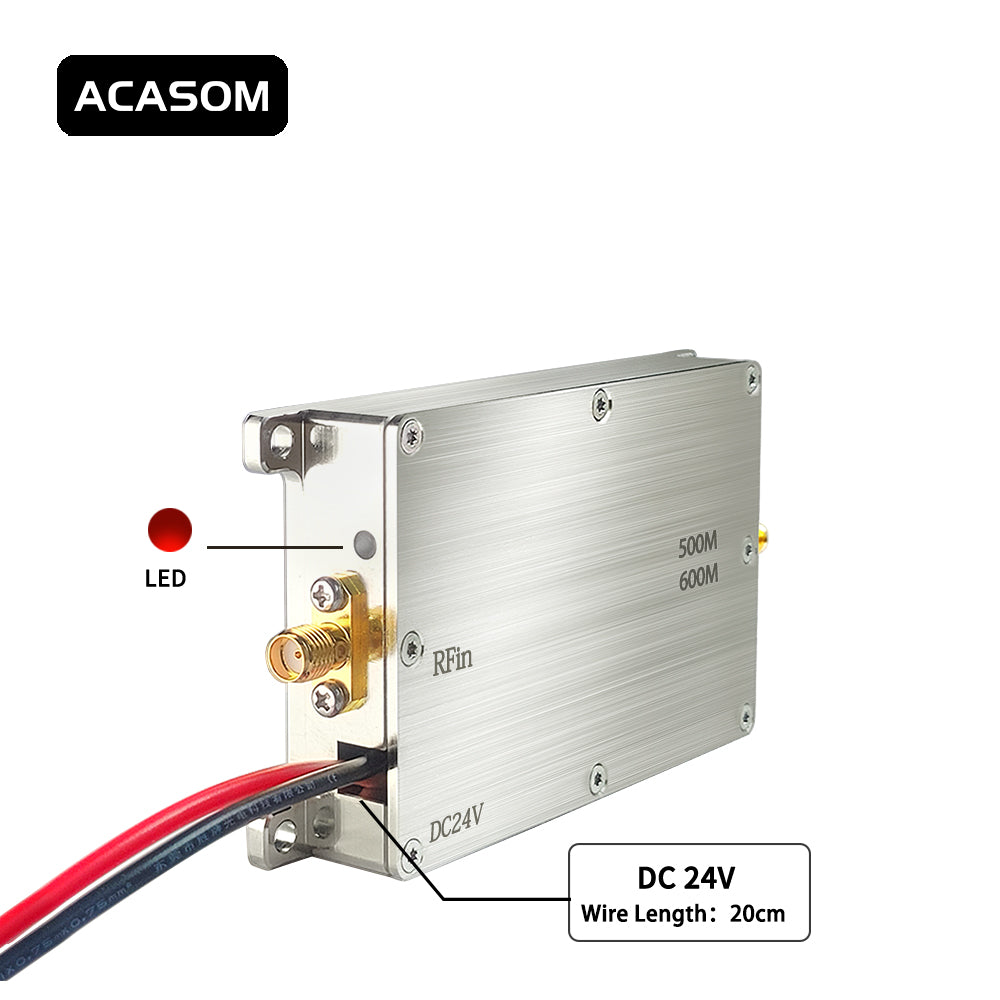

LED State |
Red |
|||||
Attentions
1）The input power shall not exceed 10dBm to avoid damage.
2）Keep good ventilation for heat dissipation，adding heat sink or radiator fan is recommend.
3）Comply with local radio spectrum regulatory requirements.
