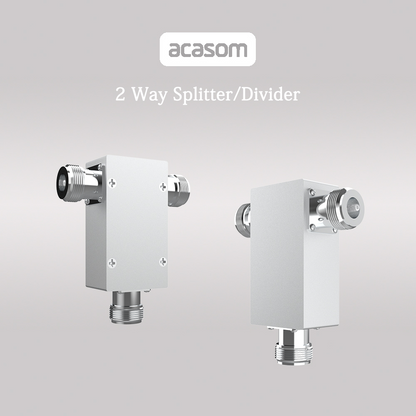

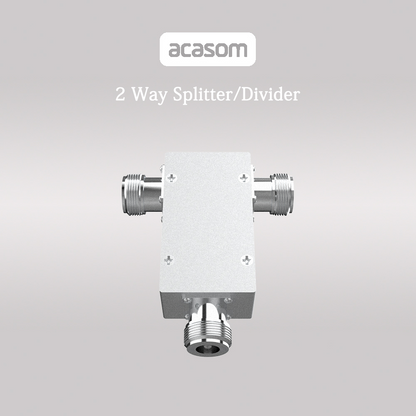

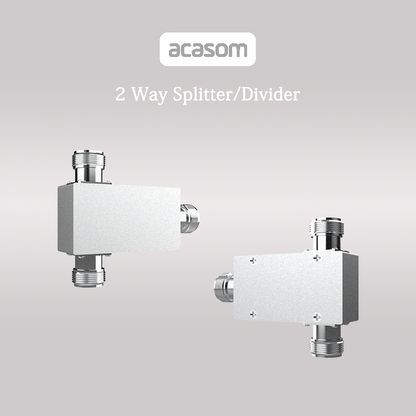

ACASOM IOT 600-6000MHz Microstrip Line Power Divider/Splitter
Working Band: 600-6000MHz
FEATURES
Lower insertion loss ≤0.5dB
High isolation ≥25dB
High power
DC pass
SPECIFICATION
|
Number |
Items |
Specifications |
|
1 |
Frequency Band |
600-6000MHz |
|
2 |
Output ports |
2-ways |
|
3 |
Insertion Loss |
≤0.5dB |
|
4 |
Ripple |
≤0.2dB |
|
5 |
Return Loss |
≤1.5: 1 |
|
6 |
Isolation |
≥25dB |
|
7 |
Amplitude Balance |
0.2dB |
|
8 |
Phase Balance |
3° |
|
9 |
Impedance |
50 Ohms |
|
10 |
PowerHanding |
50W |
|
11 |
Operating Temperature |
-40℃～75℃ |
|
12 |

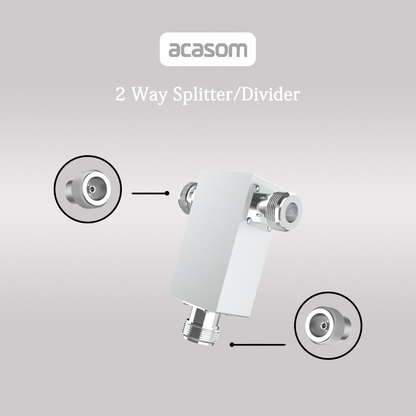

RF Connector |
N- Female |
|
13 |
Surface Finish |
White Paint |
|
14 |

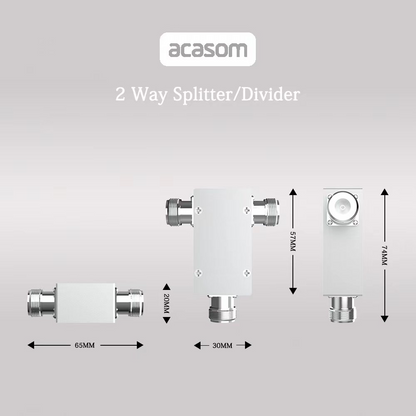

Dimensions |
- |
|
15 |
0 |
0.27Kg |
INCLUDED
1* PCS Power Divider
