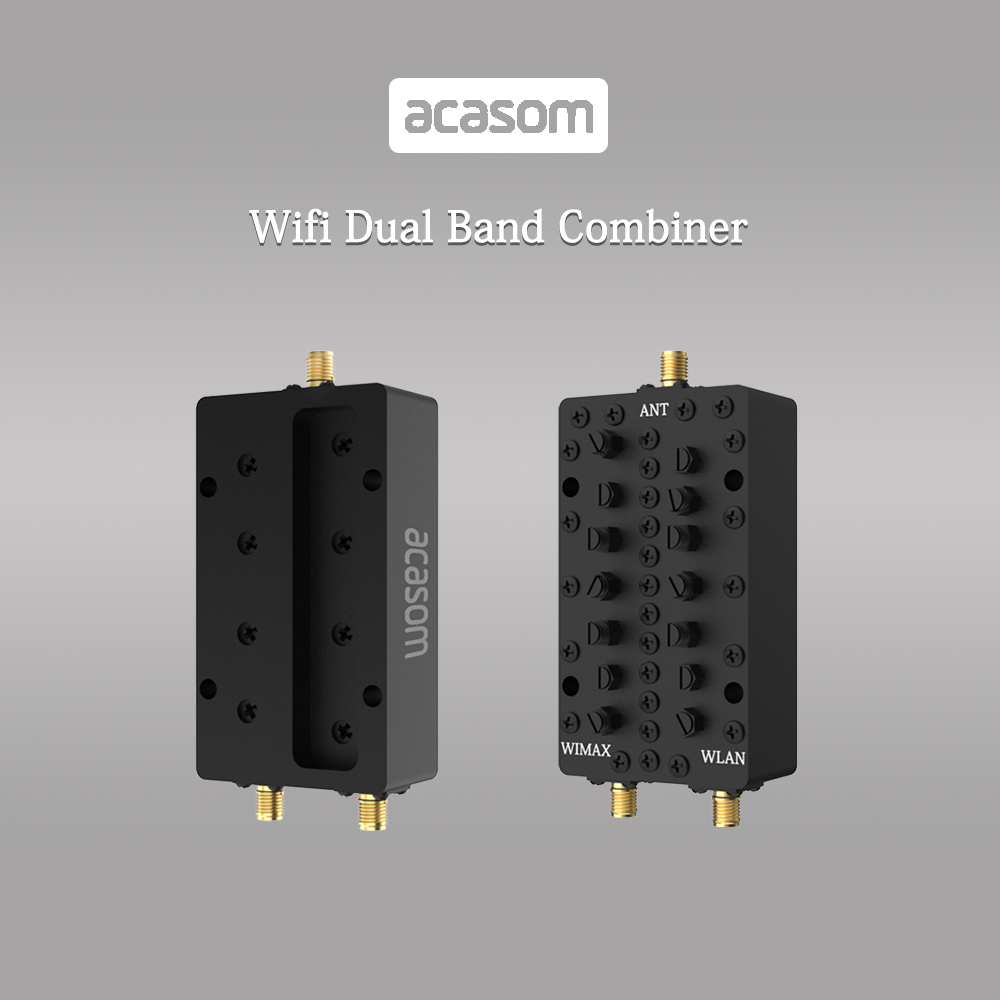

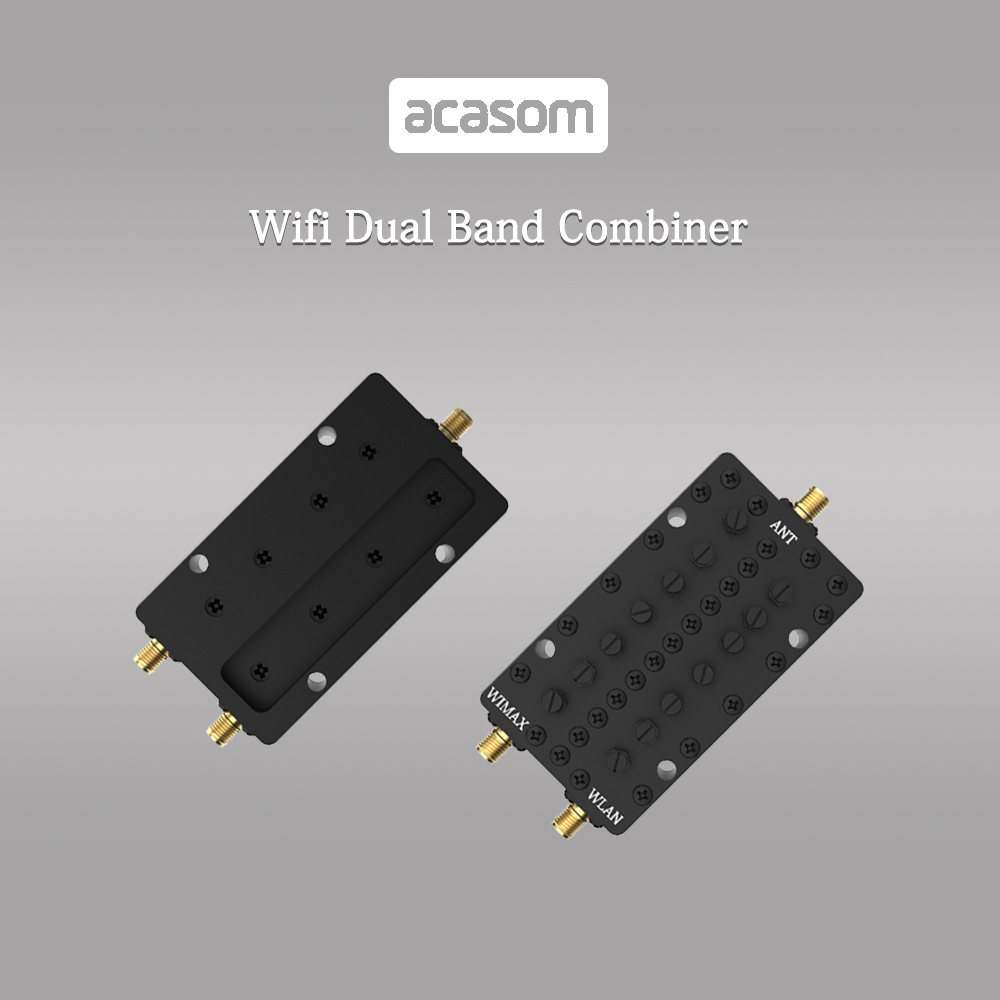

2.4 5.8GHz WIFI 2 Band Cavity Diplexer SMA Dual Band Combiner/Multiplexer/Cavity Diplexer 2 way cavity duplexer
2.4 5.8GHz WIFI 2 Band Cavity Diplexer SMA Dual Band Combiner/Multiplexer/Cavity Diplexer 2 way cavity duplexer
Regular price
$55.00USD
Regular price
Sale price
$55.00USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

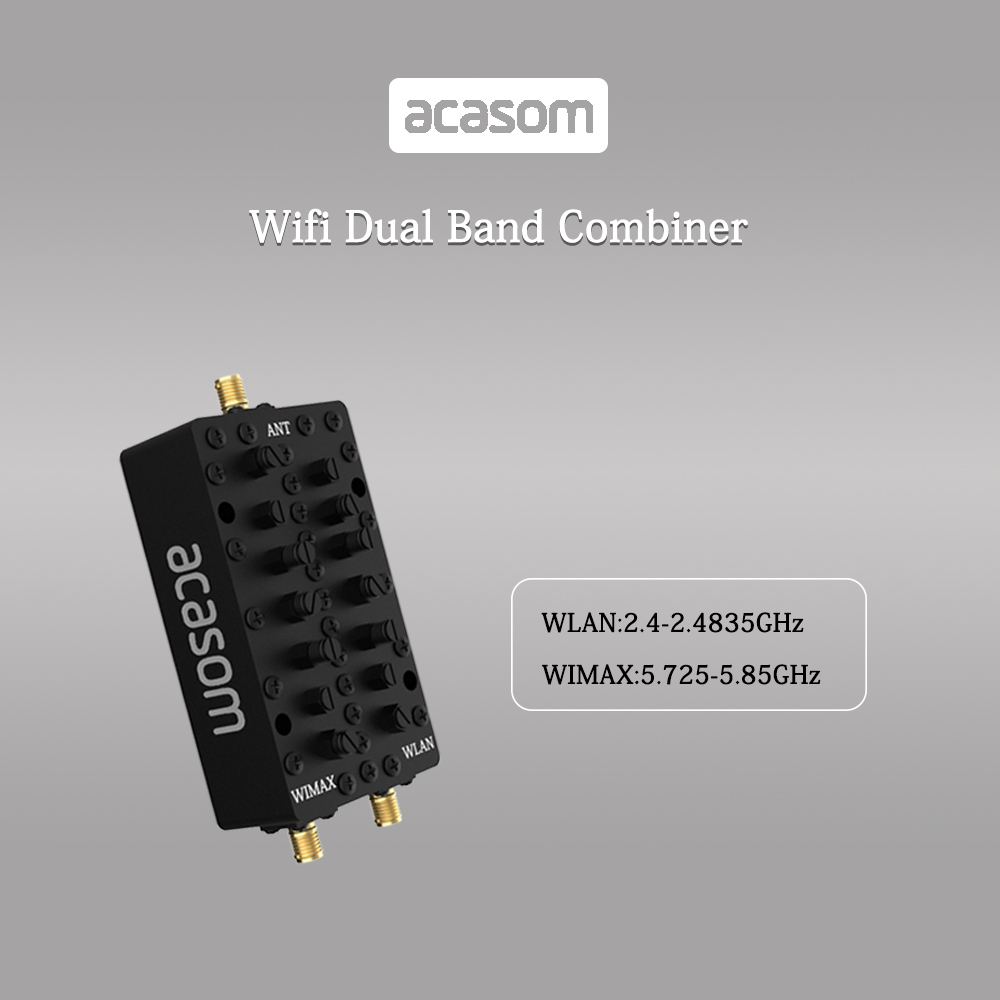

ACASOM WIFI Two Band Cavity Diplexer/Combiner 2.4GHz and 5.8GHz
Working Band1: 2.4-2.4835GHz
Working Band2: 5.725GHz-5.85GHz
Out of Band Rejection：≥85dB
DESCRIPTION
The WIFI 2 band cavity diplexer combines 2.4-2.5GHz and 5.725-
5.85GHz, and uses dual-band WIFI wireless networks. This
the component has ultra-low insertion loss and a good out-of-band
suppression at 100MHz from a distance of side frequency.
FEATURES
- Out of Band Rejection：≥85dB
- Ultra Low Insertion Loss：≤0.3dB
|
SPECIFICATIONS |
||
|
Port |
2.4G |
5G |
|
Frequency range(MHz) |
2400~2483.5 |
5725~5850 |
|
Insertion loss |
≤0.5 |
≤0.5 |
|
Fluctuation range |
≤0.3dB |
≤0.3dB |
|
SWR |
≤1.25 |
≤1.25 |
|
Maximum input power |
≥100W |
≥100 W |
|
Out-of-band inhibition degree(dB) |
≥90@5725~5850 MHz |
≥90@2400～2483.5 MHz |
|
Inputlmpedance |
50Ω |
|
|

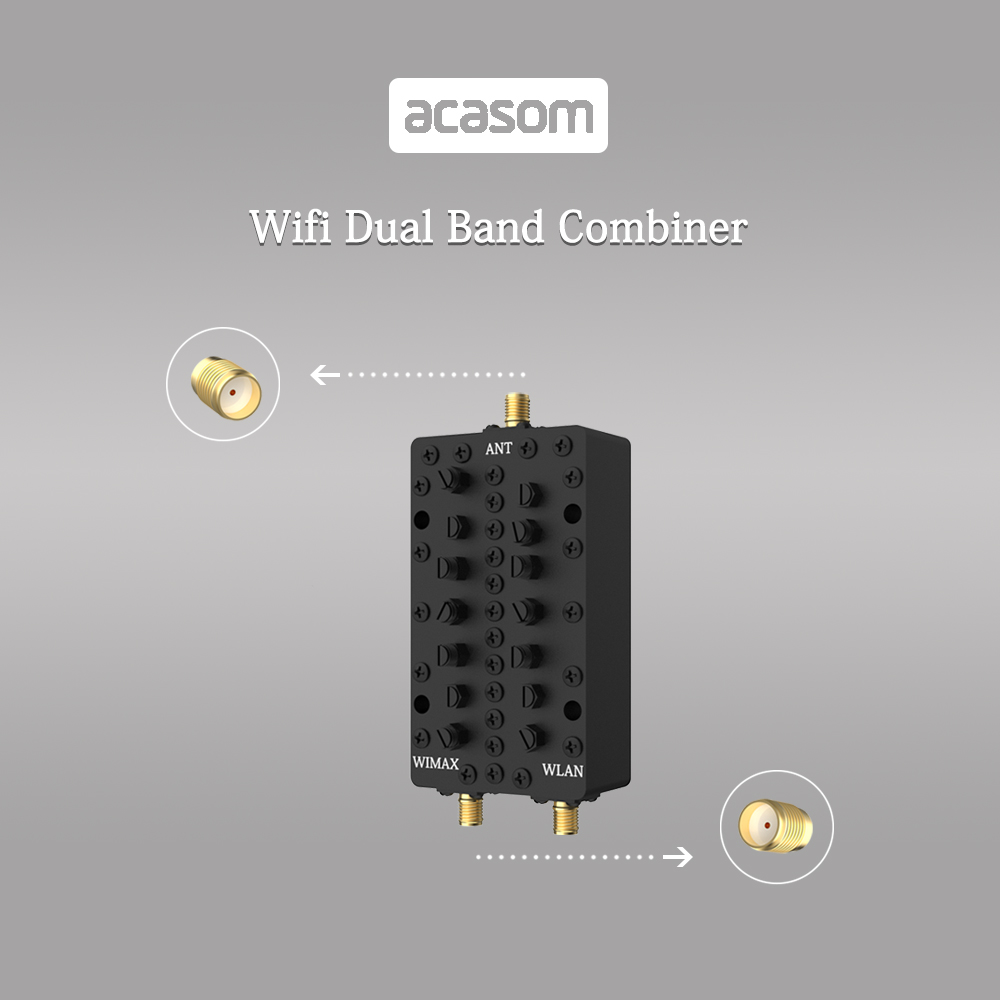

connector |
SMA-F |
|
|
color |
black |
|
INCLUDED
1* PCS Cavity Combiner
