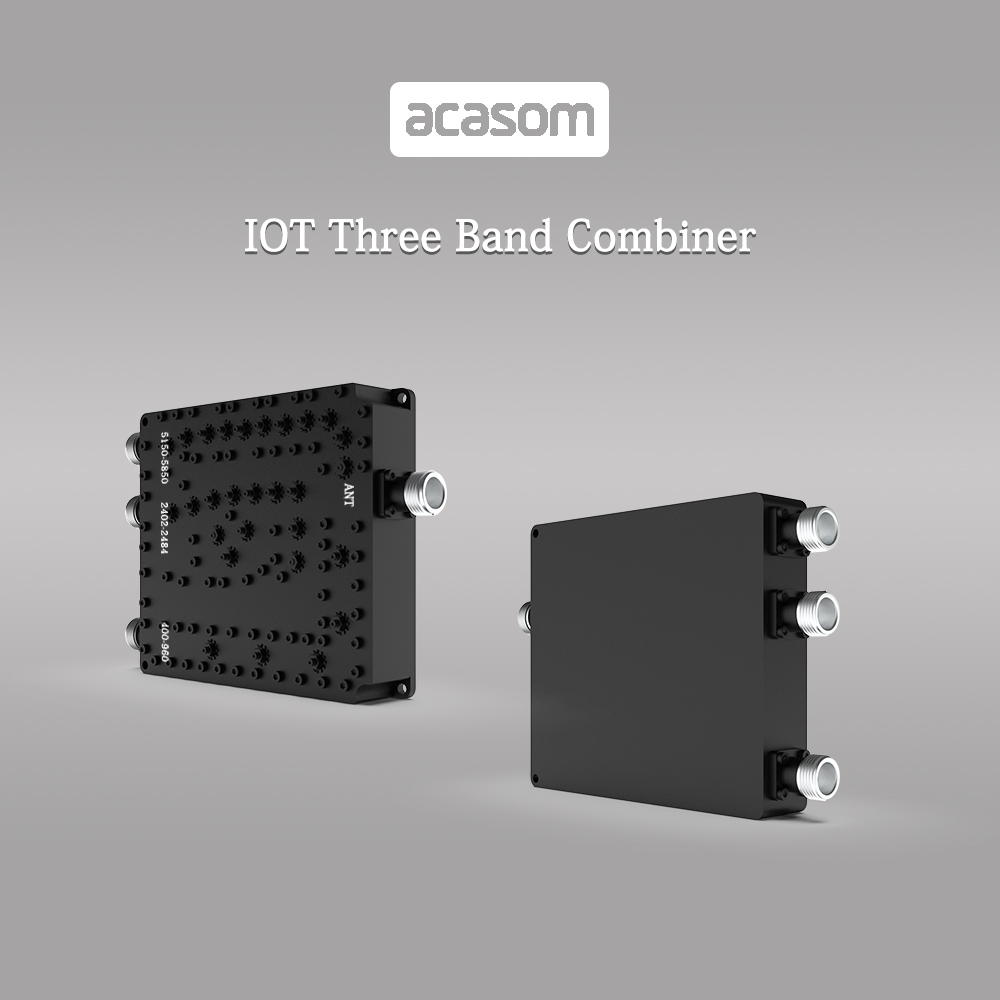

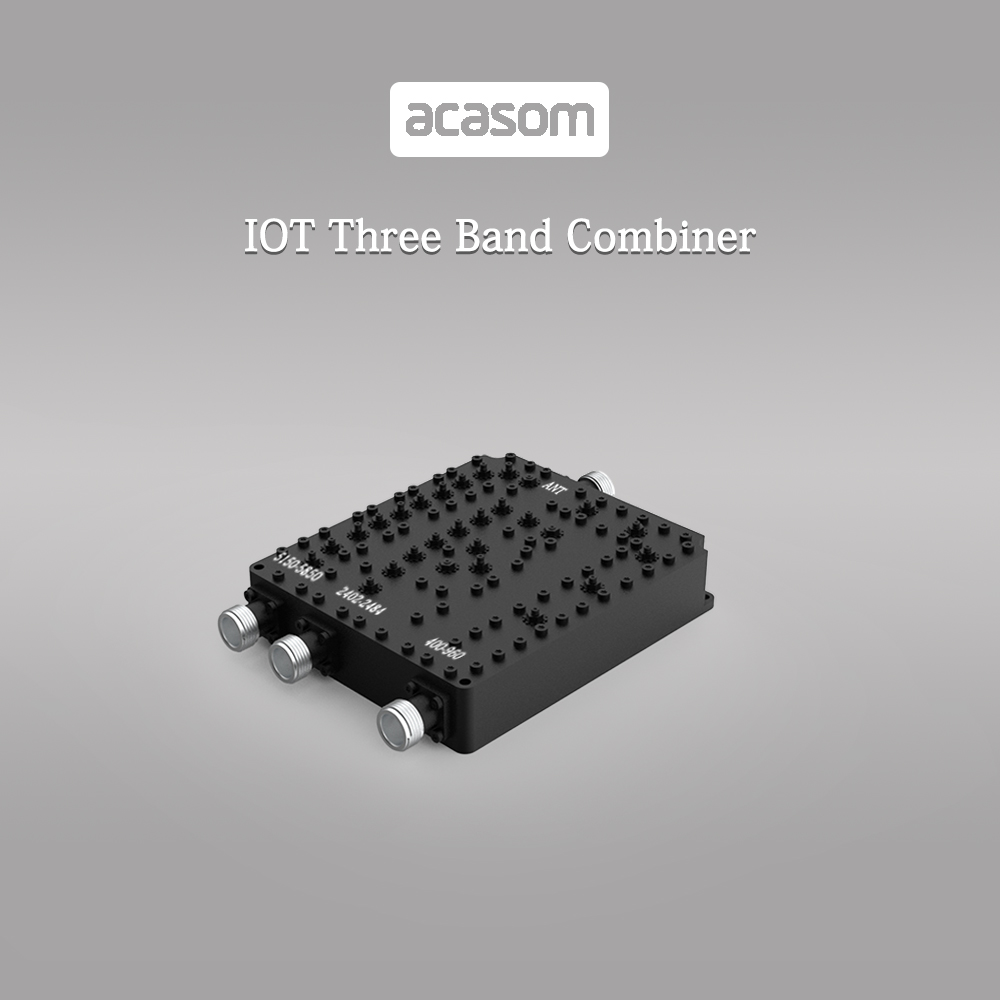

400MHz/2.4GHz/5.8GHz 3 Band Cavity Diplexer Combiner Multiplexer For WiFi IOT Wireless Communication

ACASOM  IOT Four Band Cavity Diplexer/Combiner

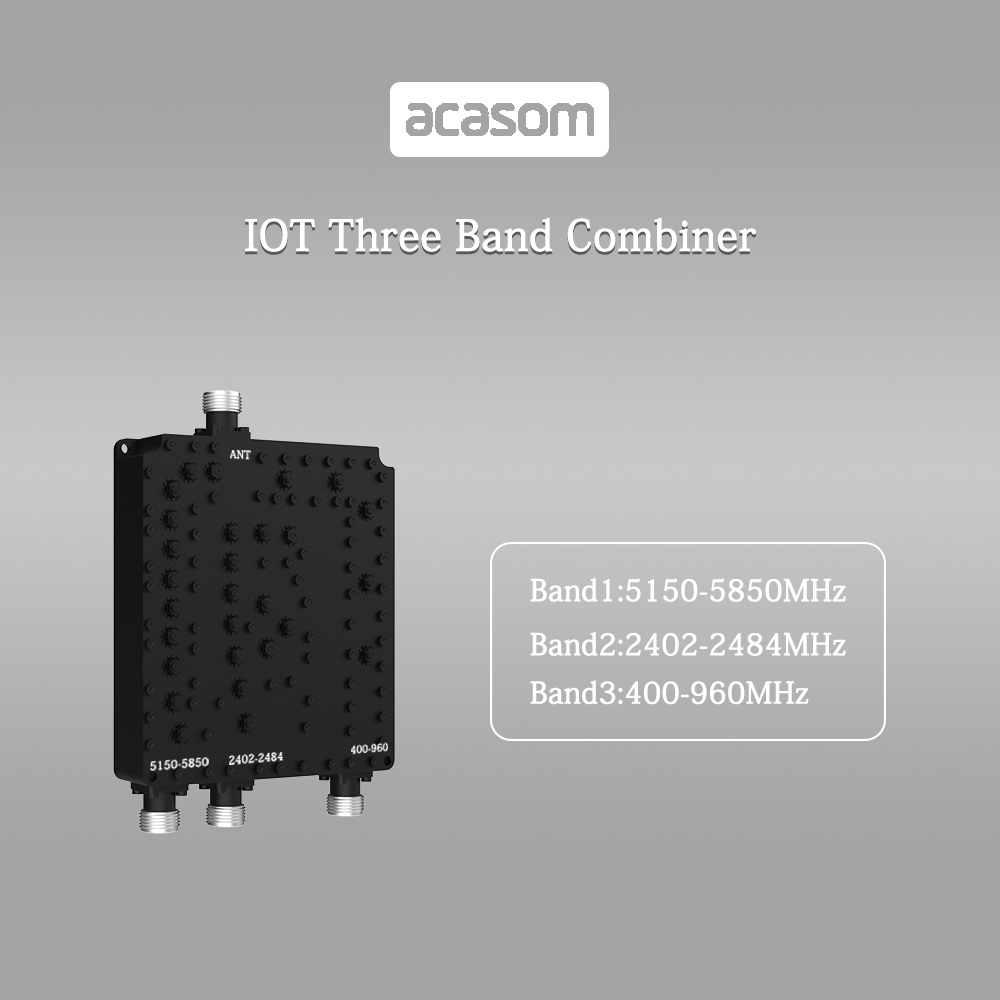

Working Band1:  5150-5850MHz

Working Band2:  2400-2484MHz

Working Band3:  400-960MHz

Out of Band Rejection：≥85dB

DESCRIPTION

The IOT 3 bands cavity diplexer combines 400-960MHz, 2400-2484, 5150-5850MHz, and uses for WIFI and IOT wireless

network. This component has ultra-low insertion loss and a good out-of-

band suppression at other bands from a distance of side frequency.

FEATURES

• Out of Band Rejection：≥85dB

• Ultra Low Insertion Loss (0.3 dB nominal)

• Industrial Grade

• Reduce Interference and Improve Performance


INCLUDED

1* PCS Cavity Combiner
