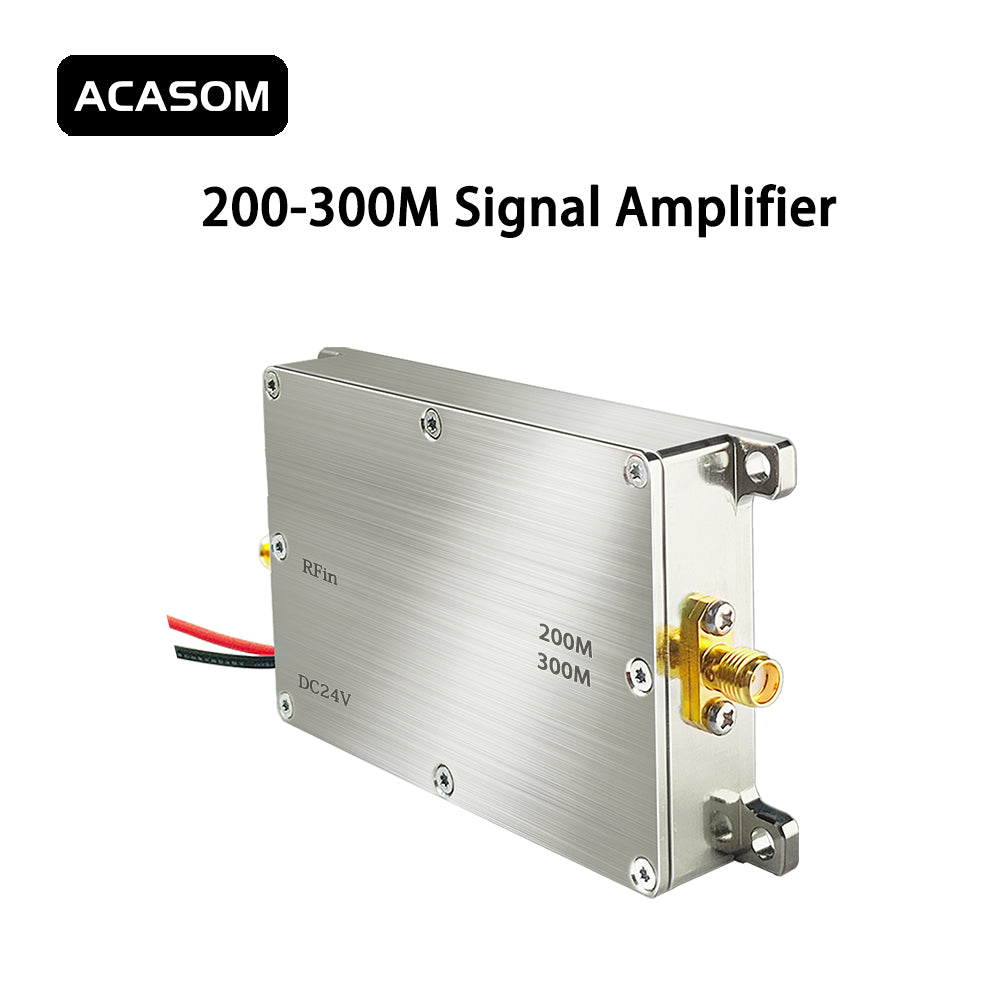

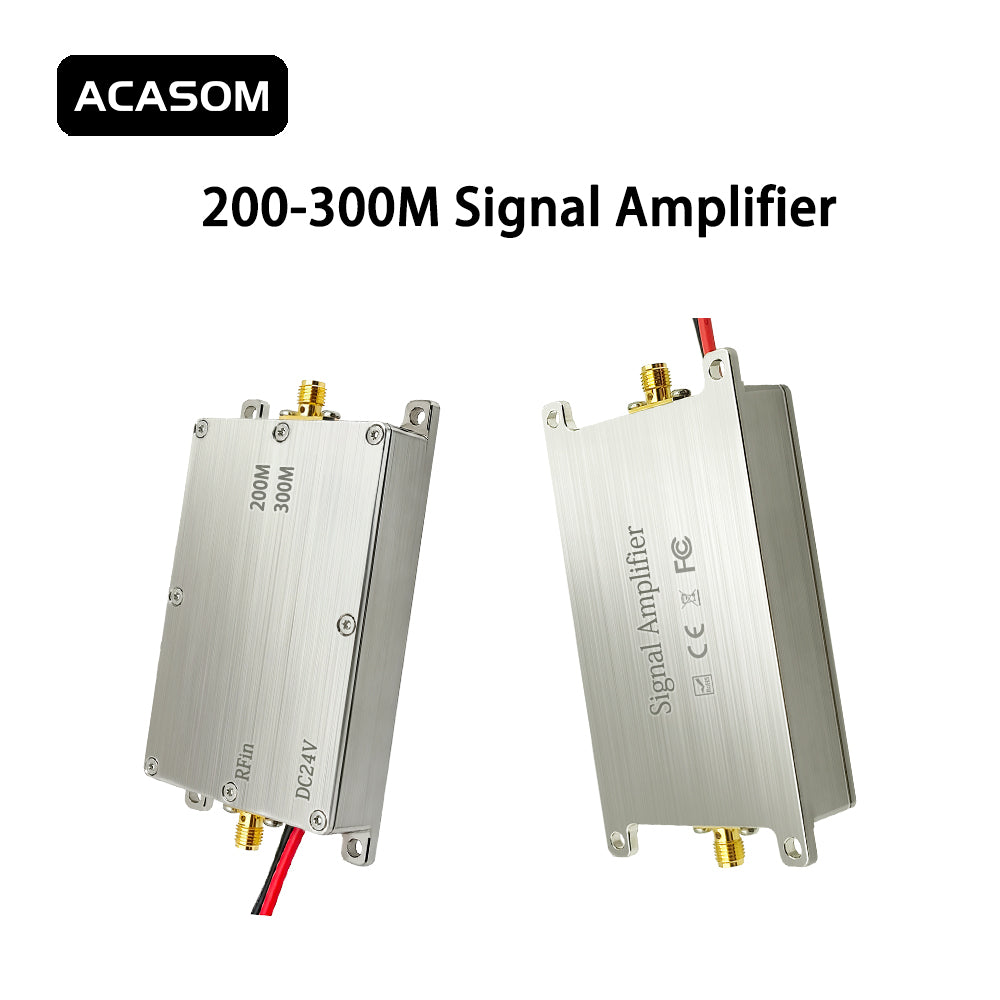

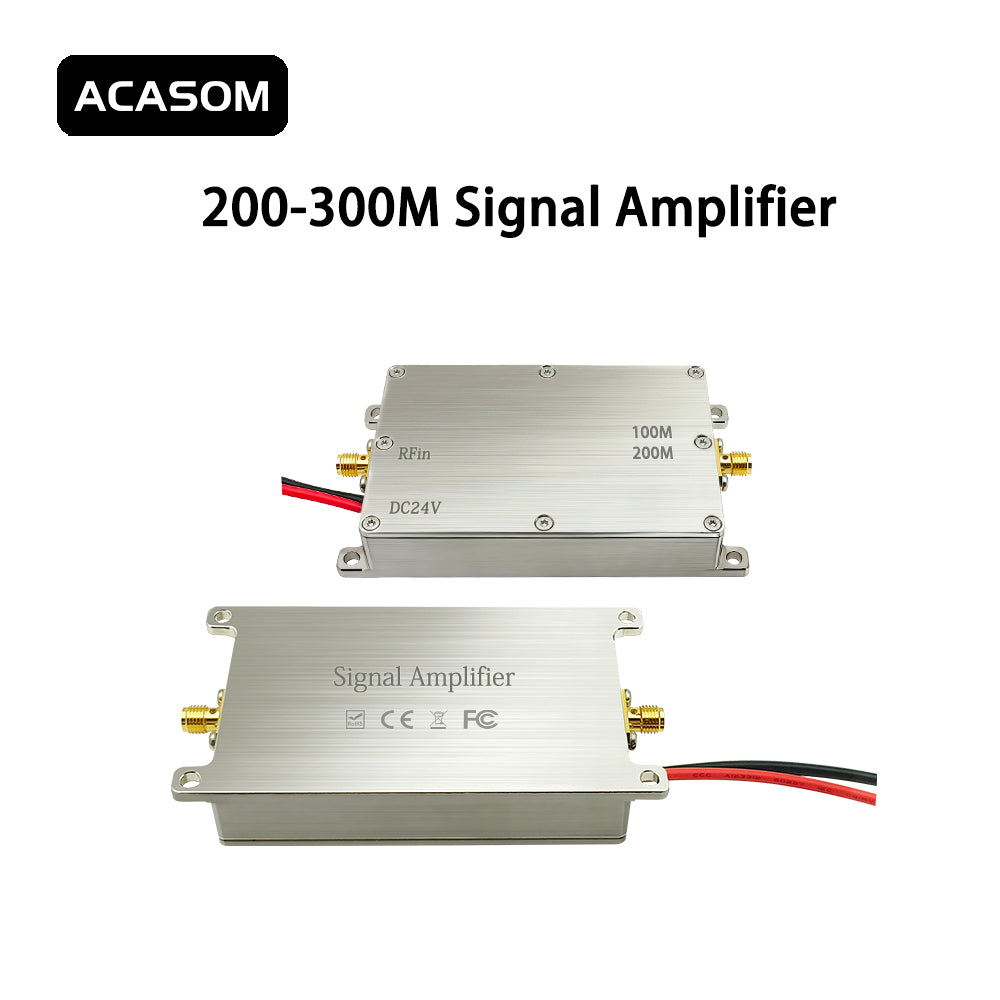

Applications
Broadcast Devices: FM broadcast, beacon devices, wireless call base stations, walkie-talkies, etc.
Audio＆video: WiFi cameras, HDMI video transceivers, wireless microphones
Smart Home/IOT: RFID Reader, IOT digital transmission, control radar modules
Features
High gain: 40dB, the product can still output 47dBm (50W) even with a 7dBm input signal.
Excellent signal flatness: ±0.5dB, ensuring stable power output.
Super high efficiency: ≥ 40% Generating less heat and reducing power consumption.
Wide temperature stability: Operating temperature range is -30℃ to 85℃, so it can run stably outdoors or in harsh industrial environments.
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
200-300MHz |
|||||
|
Output Power |
10W(40dBm) |
20W(43dBm) |
30W(45dBm) |
40W(46dBm) |
50W(47dBm) |
60W(48dBm) |
|
Model No. |
SPA020310S1 |
SPA020320S1 |
SPA020330S1 |
SPA020340S1 |
SPA020350S1 |
SPA020360S1 |
|
DC supply |
24V |
24V |
24V |
28V |
28V |
28V |
|
Current |
1.1A @24V |
2.2A @24V |
2.8A @24V |
3.2A @28V |
3.6A @28V |
4.2A @28V |
|
Gain(S21) |
40dB |
|||||
|

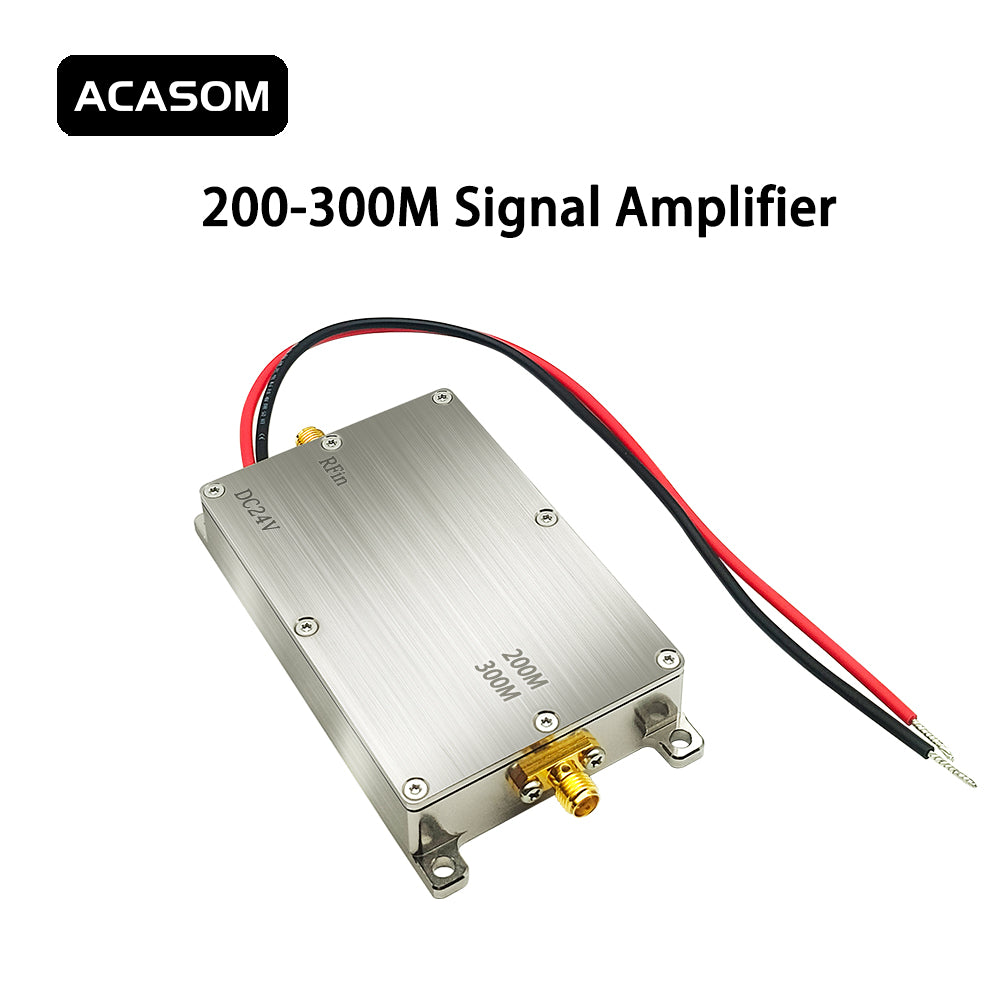

Power Socket |

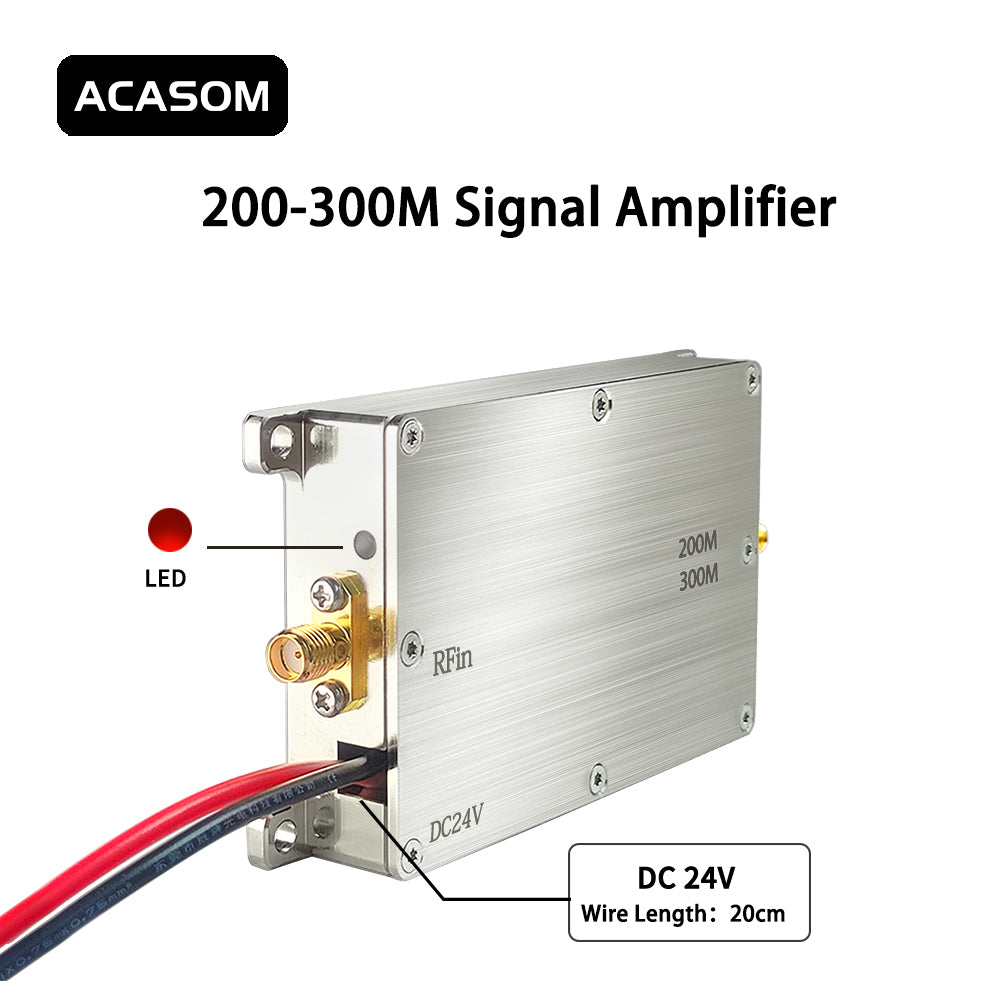

20cm red/black wire |
|||||
|
Efficiency |
45% |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|
Shell Material |
Aluminum |
|||||
|

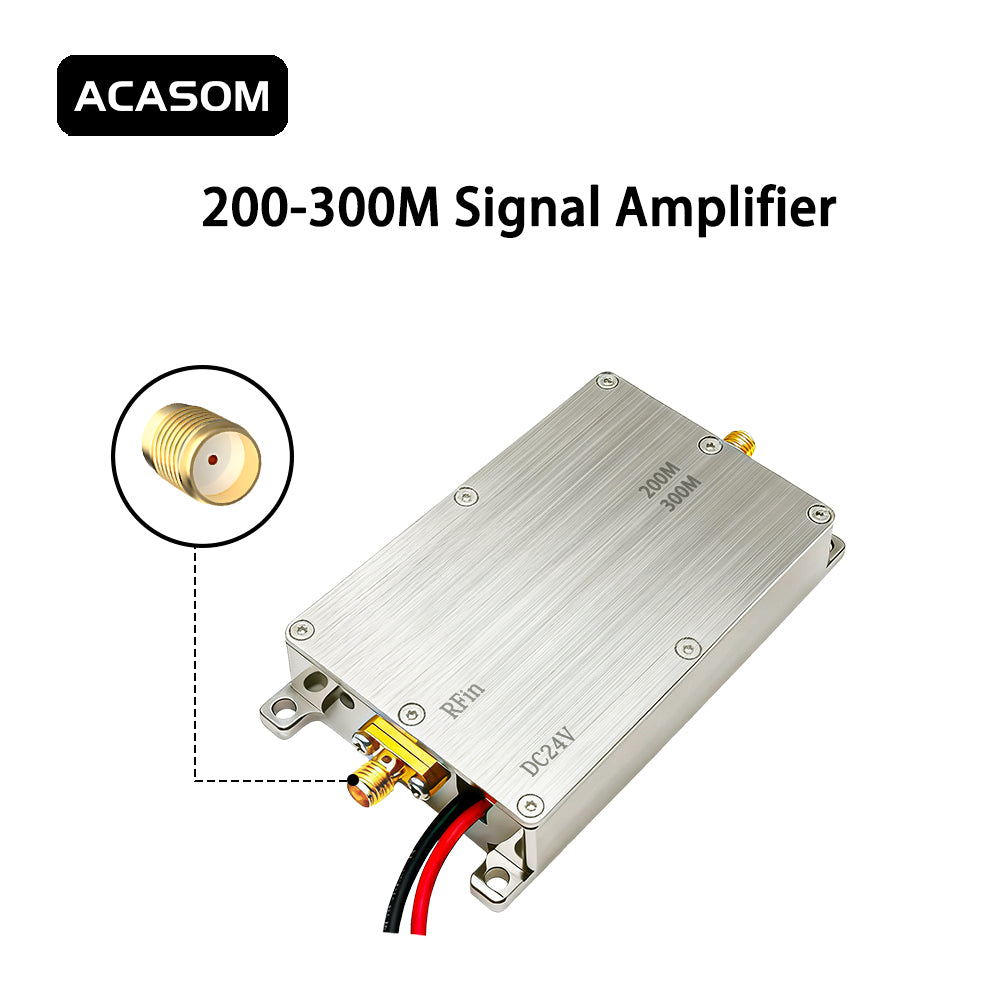

RF Connector |
SMA-Female |
|||||
|
Shell Size |

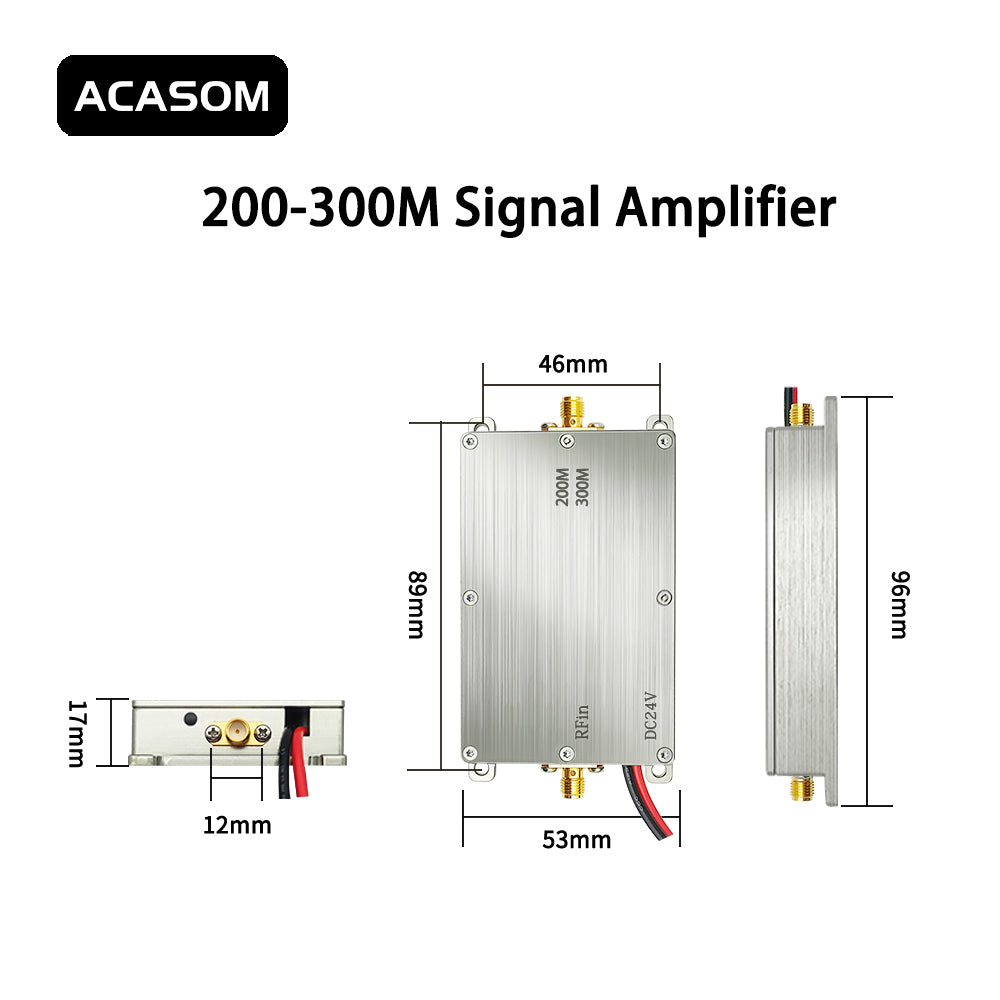

96*53*17mm |
|||||
|
Net Weight |
0.13Kg |
|||||
|
Input Return Loss(S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|
LED State |
Red |
|||||
Attentions
1）The input power shall not exceed 10dBm to avoid damage.
2）Keep good ventilation for heat dissipation，adding heat sink or radiator fan is recommend.
3）Comply with local radio spectrum regulatory requirements.
