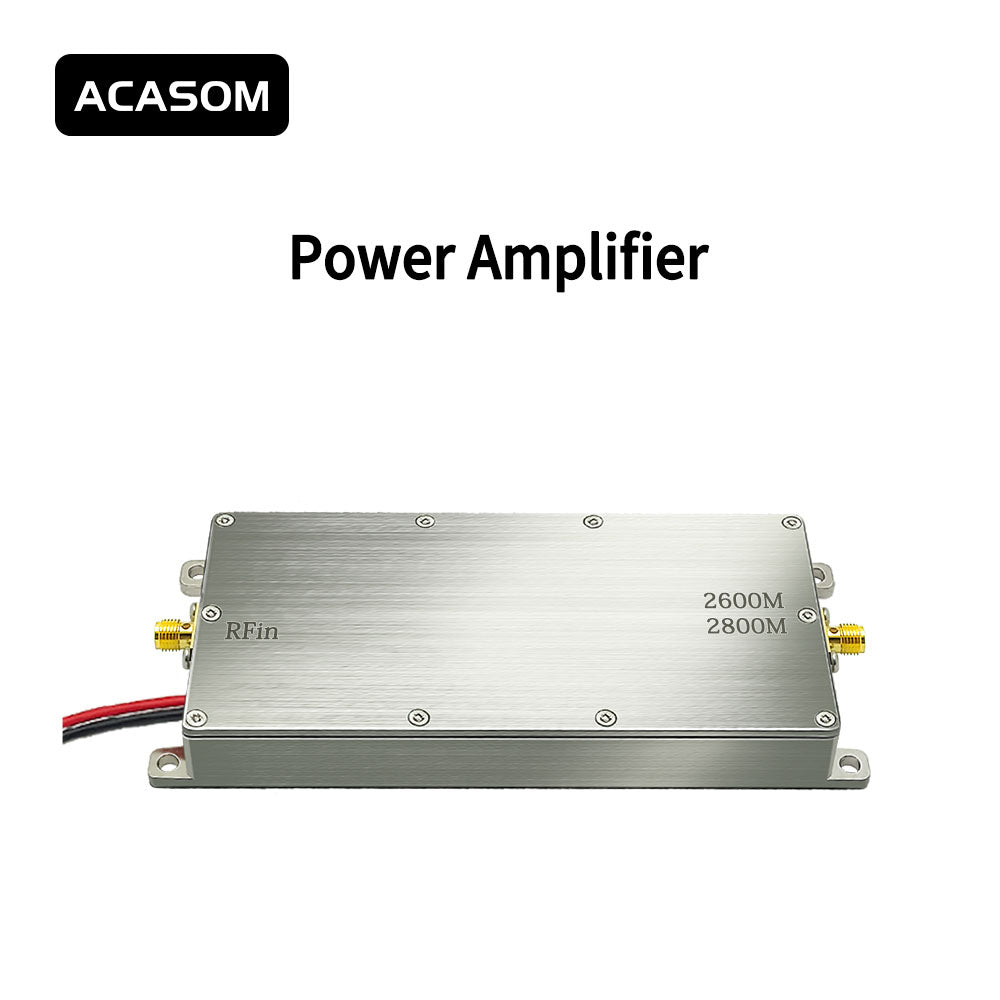

About this product

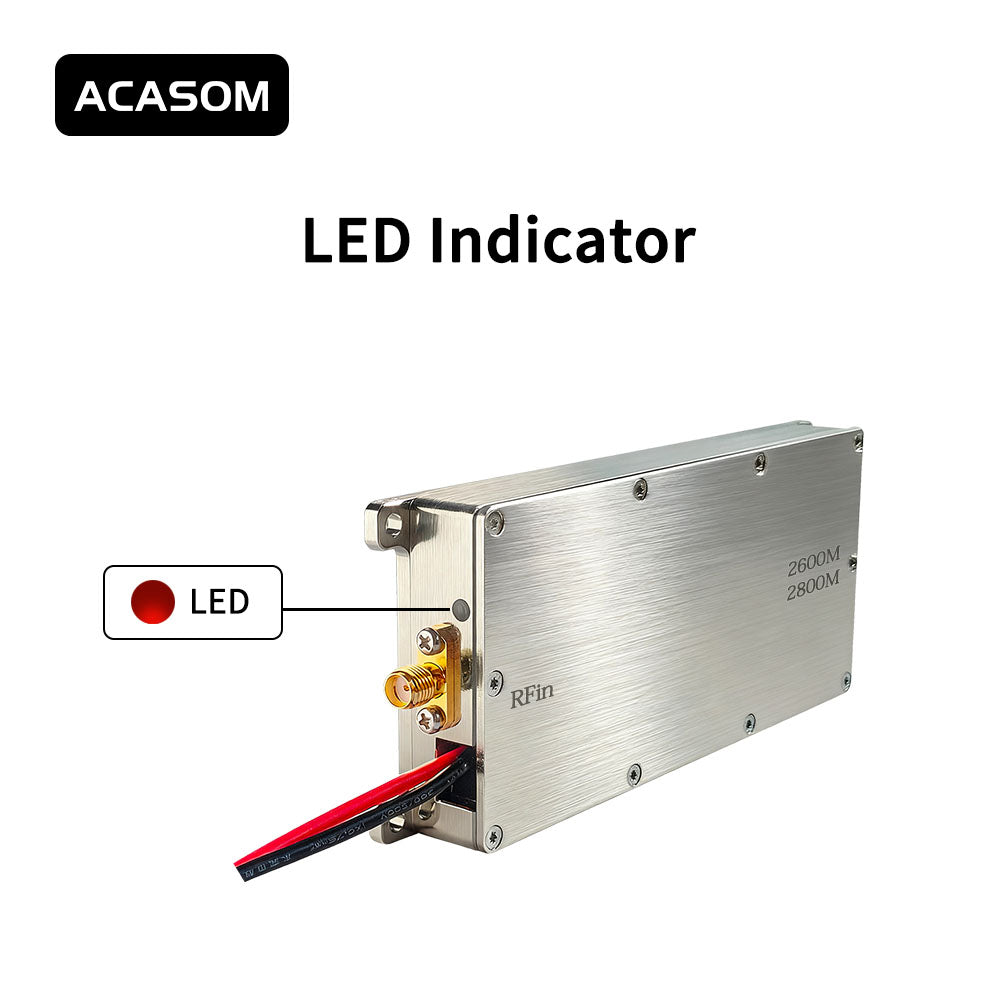

This RF power amplifier operates in the 2600–2800MHz band with high output of 47dBm (50W). It delivers stable high gain and good efficiency to boost RF transmitting signals.
Built with an aluminum shell for reliable heat dissipation, this compact transmit module comes with SMA-female connector and 20cm red/black power wires for straightforward setup. It maintains consistent performance across a wide temperature range, perfectly designed for long-range transmission, telemetry and industrial wireless links.
Features
Excellent signal flatness: ±0.5dB, ensuring stable power output.
Super high efficiency: ≥ 40% Generating less heat and reducing power consumption.
Wide temperature stability: Operating temperature range is -30°C to 85°C, so it can run stably outdoors or in harsh industrial environments.
Specifications
|
Items |
Specifications |
|||||
|
Frequency Range |
2600-2800MHz |
|||||
|
Output Power |
10W(40dBm) |
20W(43dBm) |
30W(45dBm) |
40W(46dBm) |
50W(47dBm) |
60W(48dBm) |
|
Model No. |
SPA262810S1 |
SPA262820S1 |
SPA262830S1 |
SPA262840S1 |
SPA262850S1 |
SPA262860S1 |
|

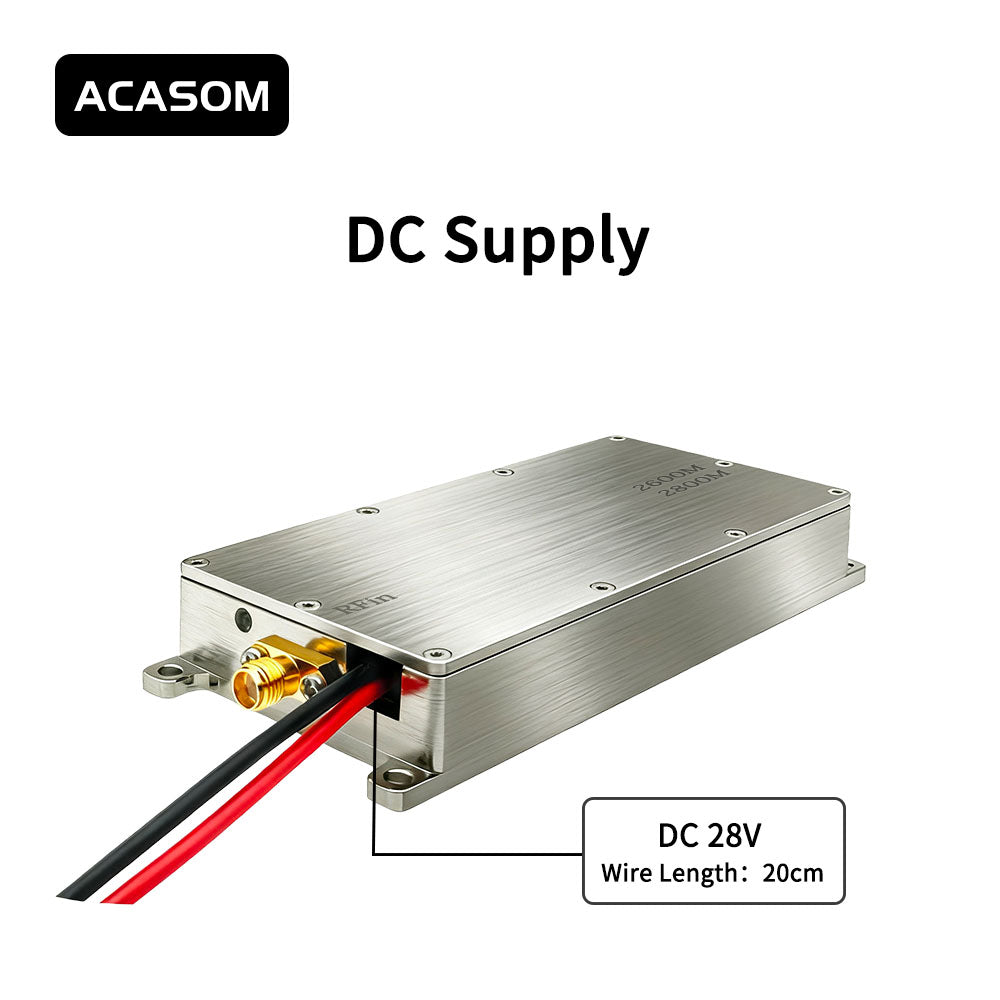

DC supply |
24V |
24V |
24V |
28V |
28V |
28V |
|
Current |
1.5A @24V |
1.8A @24V |
2.4A @28V |
3.2A @28V |
3.6A @28V |
4.2A @28V |
|
Gain(S21) |
40dB |
|||||
|
RF Input Power Range |
-13-10dBm |
|||||
|
Power Socket |
20cm red/black wire |
|||||
|
Efficiency |
45% |
|||||
|
Operating Temperature |
-30°C～85°C |
|||||
|
Storage Temperature |
-40°C～150°C |
|||||
|
Operating Humidity |
＜95%RH |
|||||
|
Shell Material |
Aluminum |
|||||
|

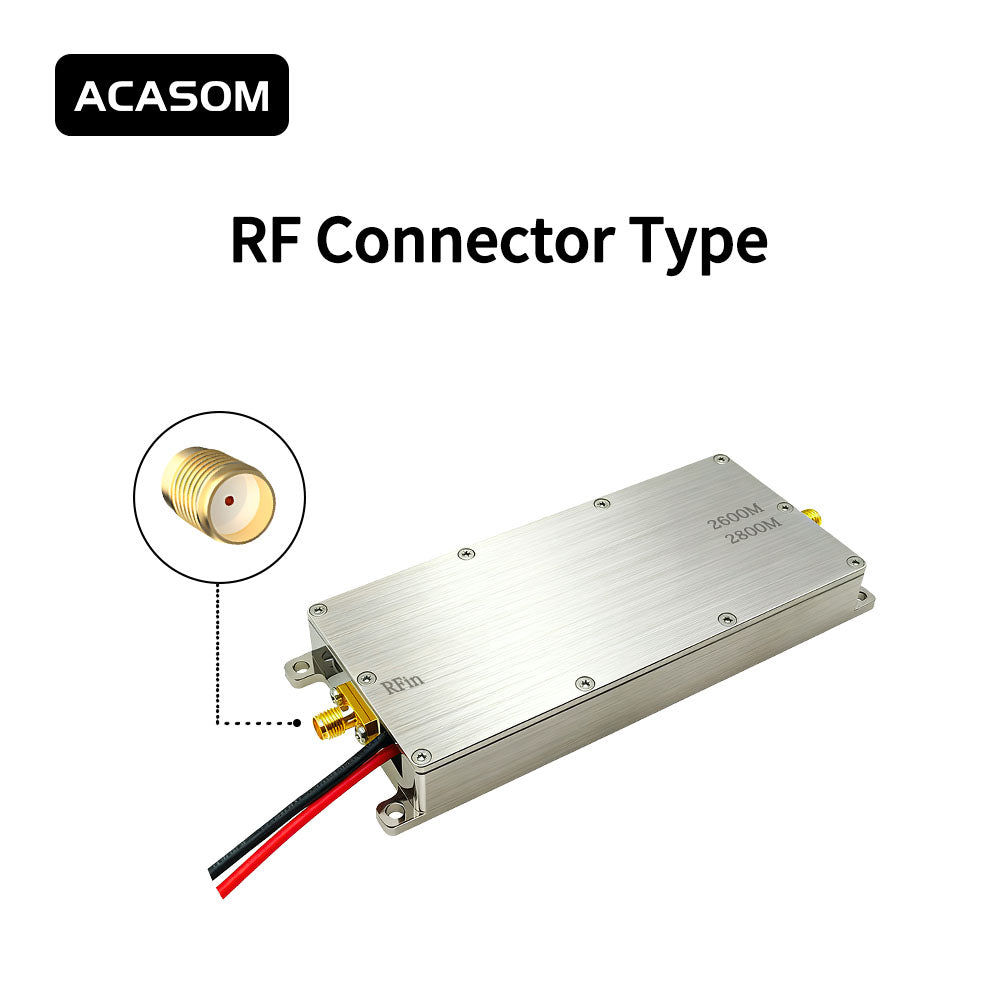

RF Connector |
SMA -Female |
|||||
|
Input Return Loss(S11) |
-15dB |
|||||
|
Flatness |
±0.5dB |
|||||
|

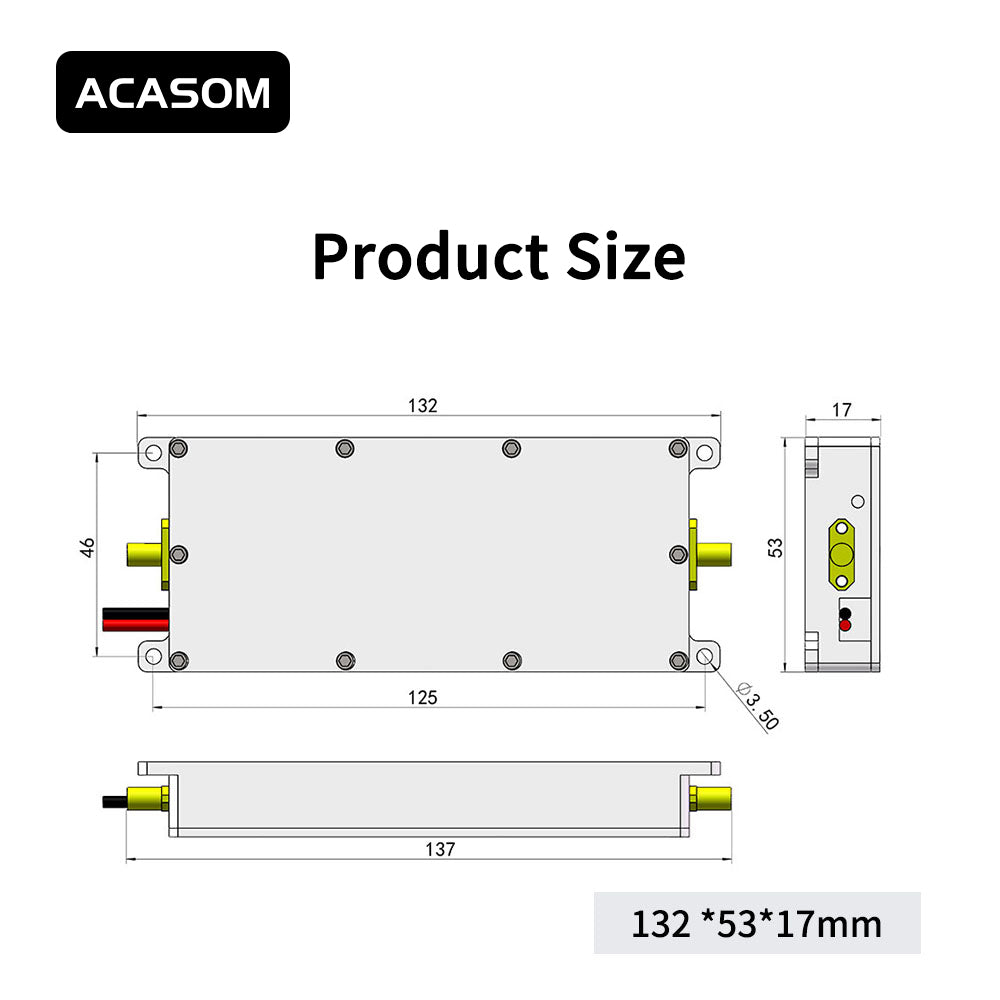

Shell Size |
132*53*17mm |
|||||
|
Net Weight |
210g |
|||||
Attentions
1）Keep good ventilation for heat dissipation，adding heat sink or radiator fan is recommend.
2）Comply with local radio spectrum regulatory requirements.
