ACASOM

2.402GHz 2.462GHz WIFI Cavity Diplexer N Dual Band Combiner/Multiplexer/ 2 Way Duplexer

$55.00USD

Sale Sold out

Shipping calculated at checkout.

COLOR 2432 2472 combiner 2402 2462 combiner 2402 2452 combiner

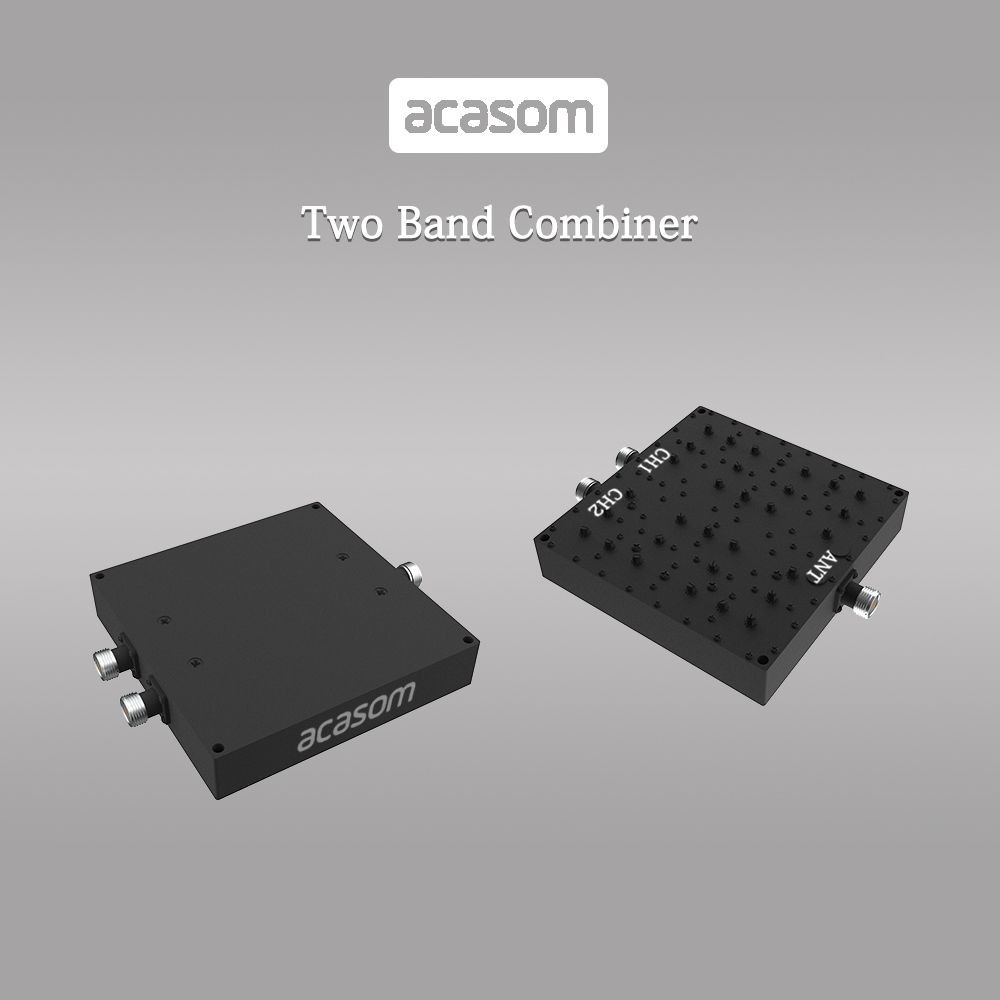

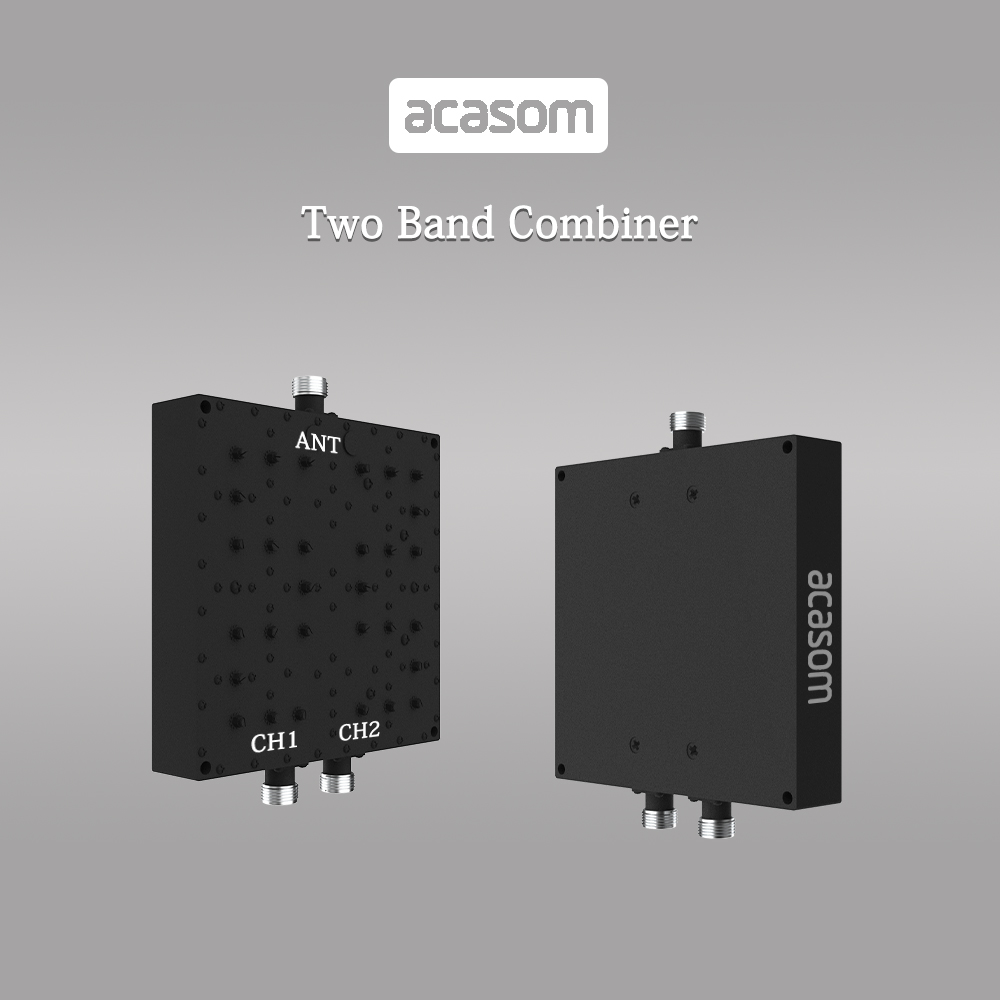

ACASOM WIFI Two Band Cavity Diplexer/Combiner 2.402GHz and2.462GHz

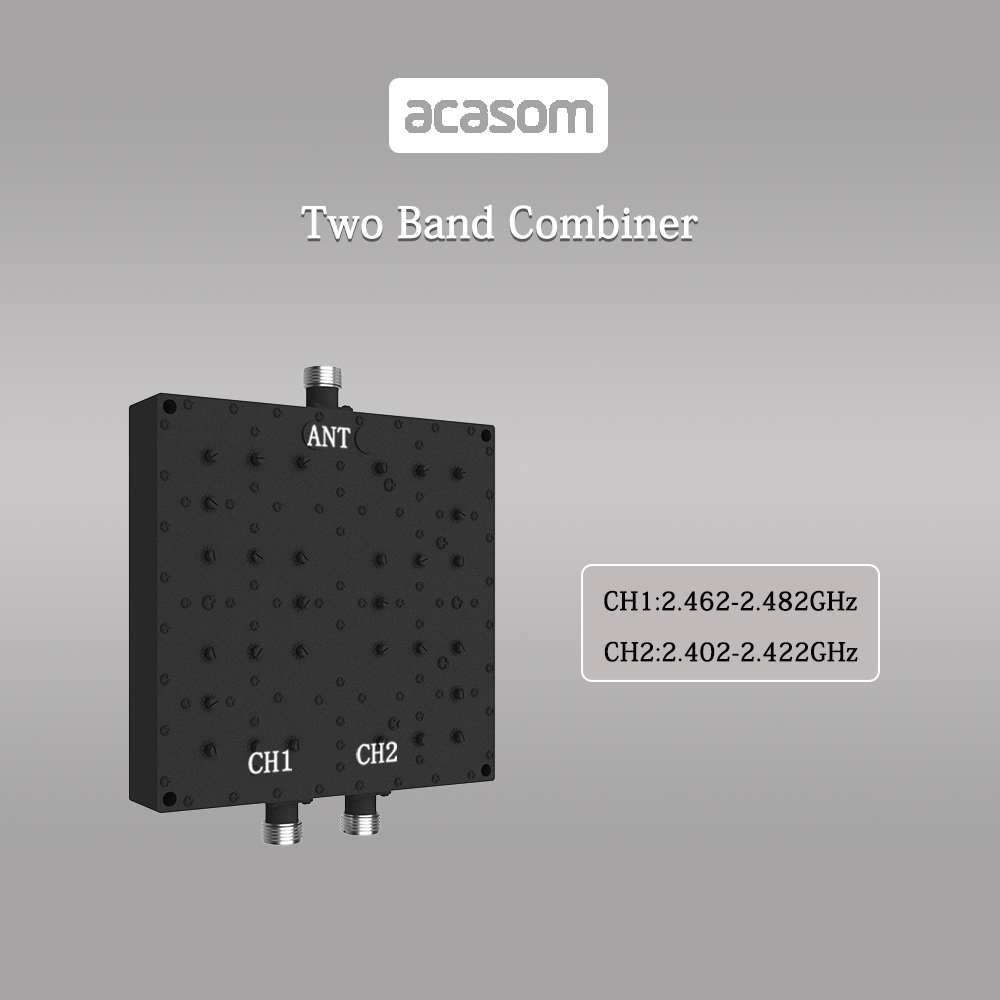

Working Band1: 2.402-2.422GHz

Working Band2: 2.462GHz-2.482GHz

Out of Band Rejection：≥90dB

DESCRIPTION

The WIFI 2 band cavity diplexer combines 2.402-2.422GHz and 2.462-2.482GHz and uses for dual-band WIFI wireless networks. This component has ultra-low insertion loss and a good out-of-band suppression from a distance of side frequency.

FEATURES

Out of Band Rejection：≥90dB
Ultra Low Insertion Loss：≤1.0dB

SPECIFICATION

Frequency(MHz)	2402-2422	2462-2482
Band width(MHz)	20	20
Insertion Loss(dB)	≤1.0	≤1.0
Ripple(dB)	≤0.2	≤0.2
VSWR	≤1.3	≤1.3
Out of band Rejection	≥90@2462-2482	≥90@2402-2422
Maximum Power(W)	≥20
Impedance(Q)	50

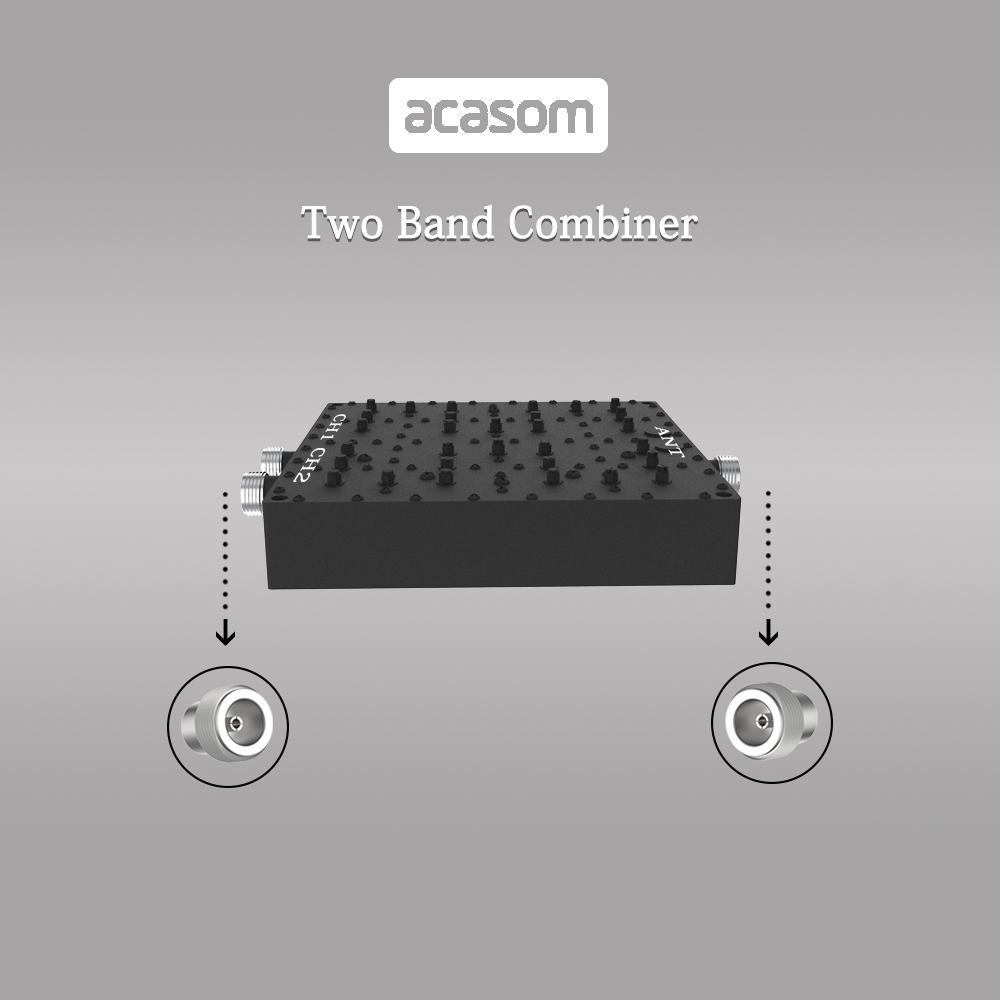

Port Connectors	N-F
Surface Finish	Black

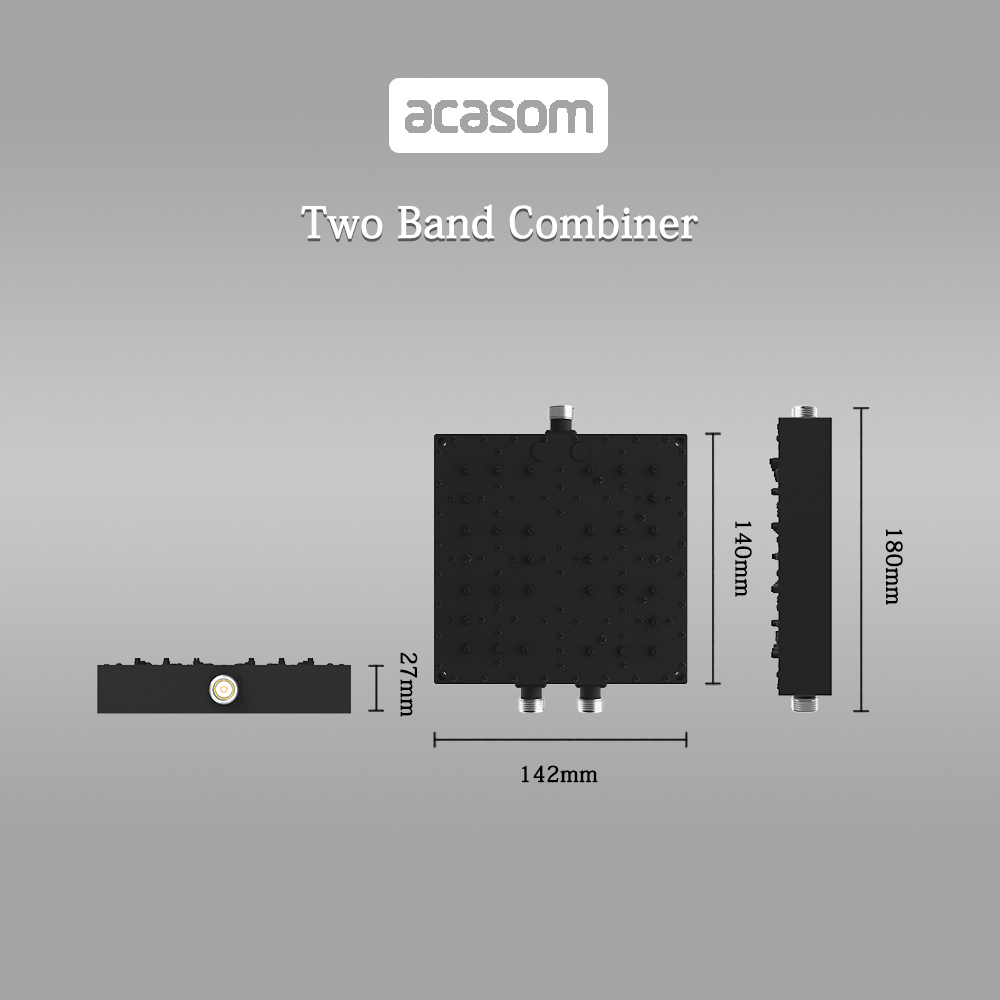

Size	18014227mm
Weight	0.72Kg

INCLUDED

1* PCS Cavity Combiner
