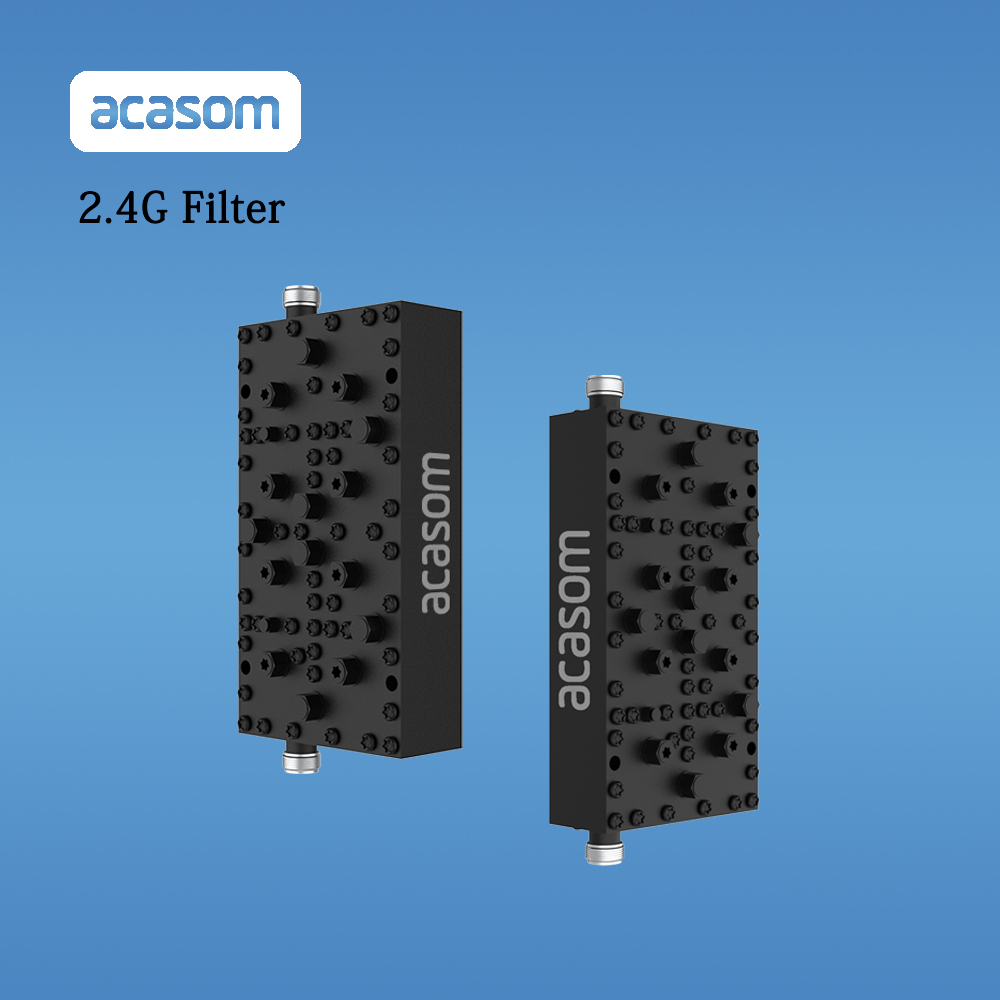

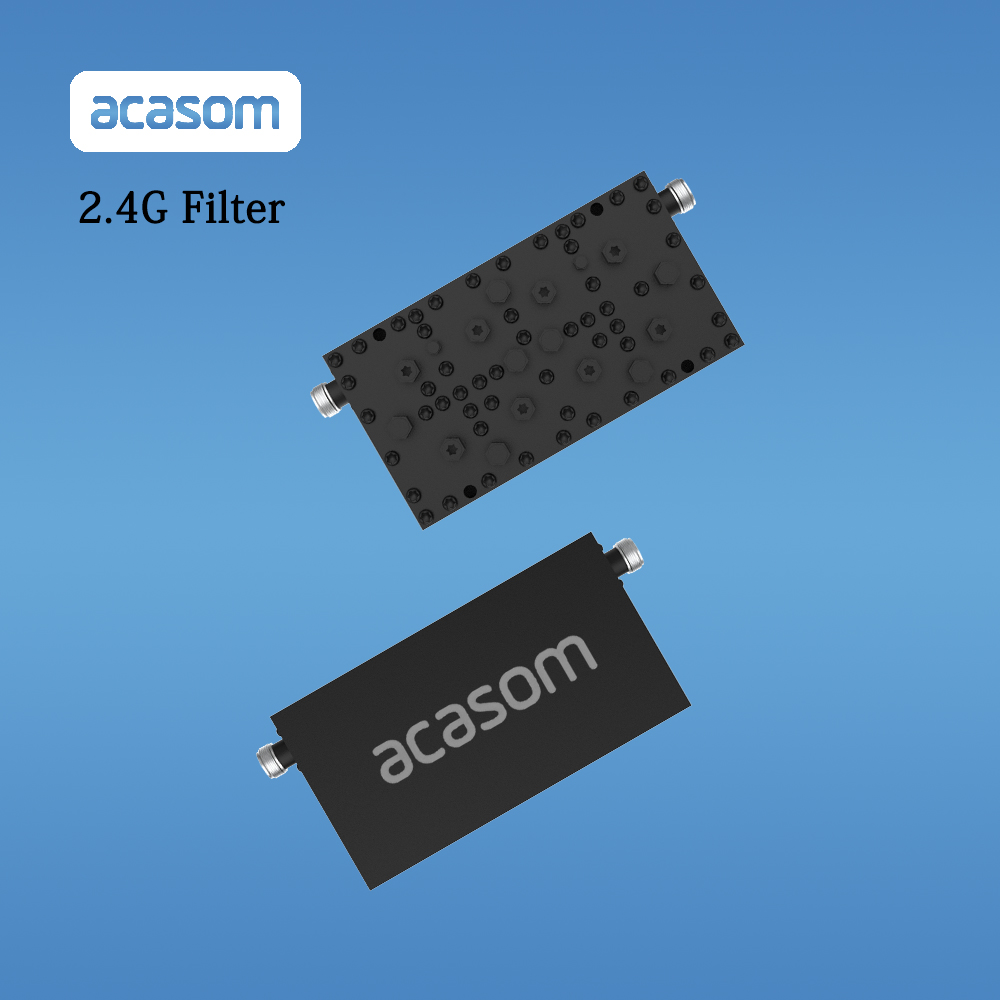

2.4GHz Indoor Bandpass 20MHz channel5 2422MHz to 2442MHz Cavity Filter WIFI Network Filter 2.4 GHz Ultra High Q 8-Pole

Working Channel 1: 2422-2442MHz

Bandwidth：20MHz

Out of Band Rejection：≥80dB

ABOUT CONNECTIONS

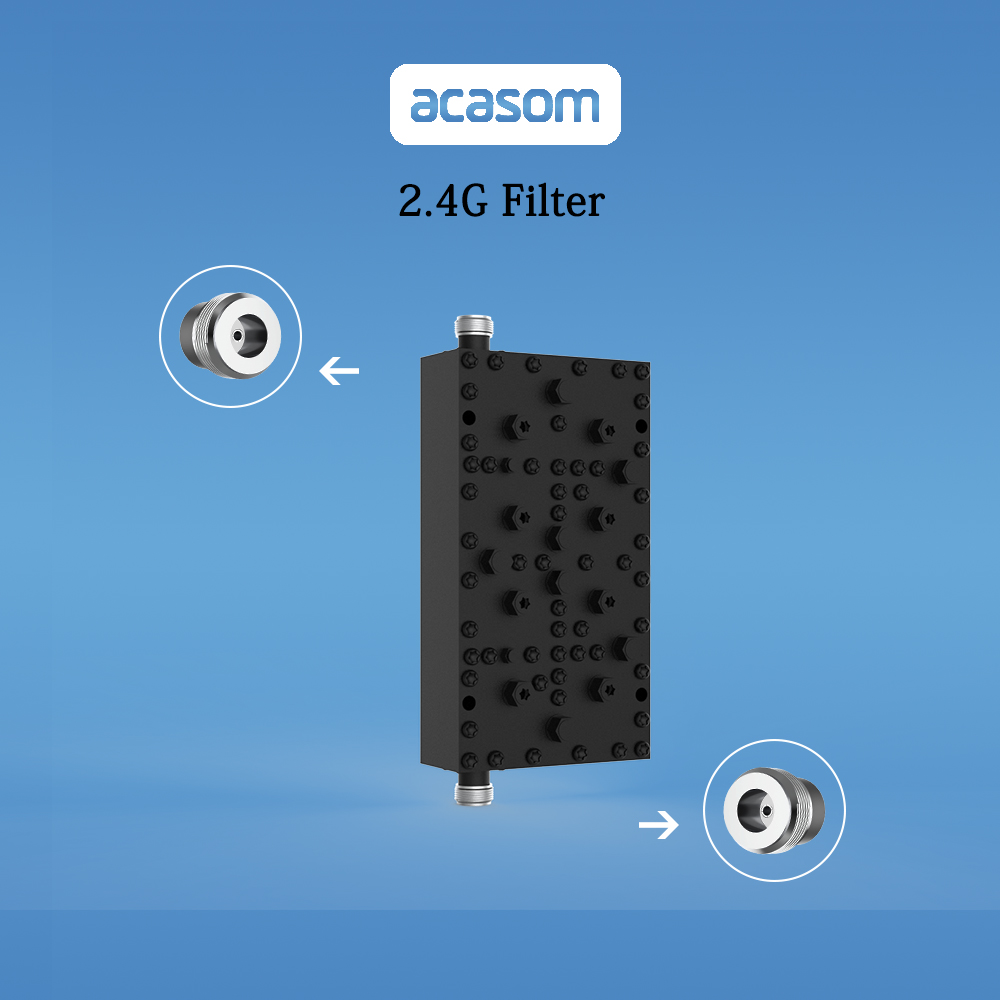

1、These bandpass filters are bi-directional, so either end can be connected to the antenna.

2、There is no difference between the two RF ports of the filter. Both sides can be connected to the antenna or AP.

The Acasom indoor 2.4 GHz 8-Pole Ultra-High Q Wi-Fi channel filters are ideal for co-located equipment installations. Available in seven versions for Channels 1,3,5,7,9,11,13. They provide excellent adjacent channel rejection. By reducing interference from both inside and outside the band, improved performance of co-located equipment can be achieved. These bandpass filters are bi-directional, so either end can be connected to the antenna. These filters are designed to be installed indoors or in weather-resistant enclosures.

FEATURES

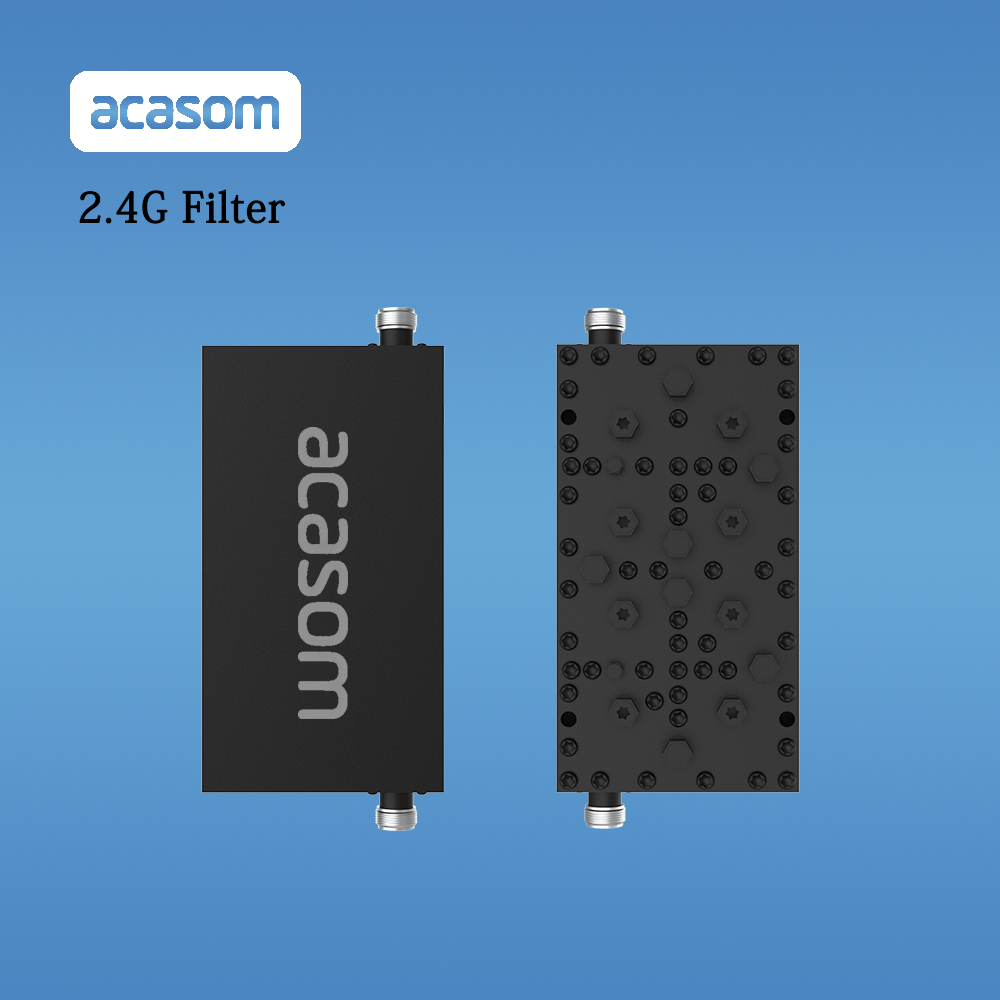

• Rugged Aluminum Construction

• Ultra Low Insertion Loss (1.5 dB nominal)

• Industrial Grade

• Reduce Interference and Improve Performance

SPECIFICATION

Channel1 （example）：

INCLUDED

1* PCS of Cavity Filter
