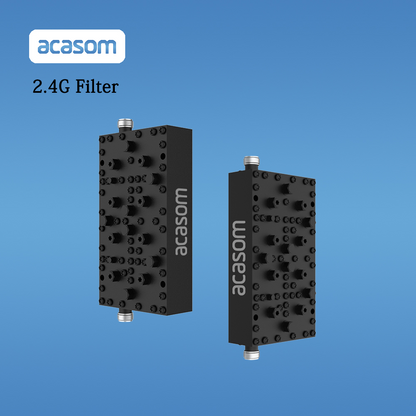

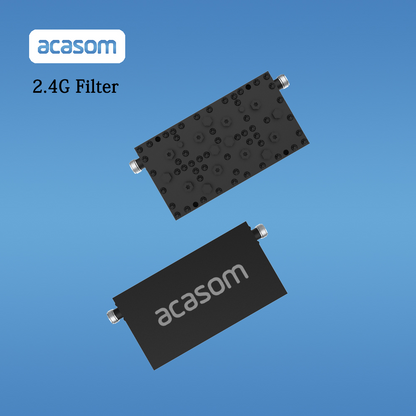

2.4GHz Indoor Bandpass 20MHz Filter Cavity Filter WIFI Network Filter 2.4 GHz Ultra High Q 8-Pole

ACASOM  provides 2.4 GHz 8-Pole Ultra-High Q Wi-Fi channel filters that are ideal for co-located equipment installations.

Bandwidth：20MHz

Out of Band Rejection：≥80dB

Have 7 Channel Available:

channel 1：  2402-2422MHz

channel 5：  2422-2442MHz

channel 9：  2442-2462MHz

channel 13：2462-2482MHz

and:

channel 3：  2412-2432MHz

channel 7：  2432-2452MHz

channel 11：2452-2472MHz

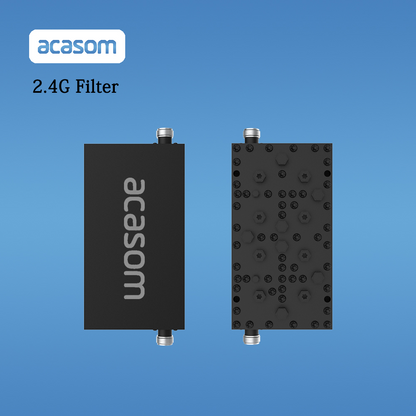

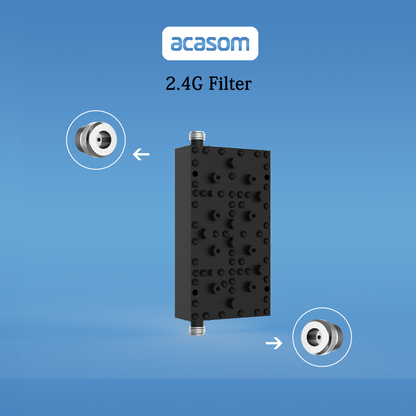

ABOUT CONNECTIONS

1、These bandpass filters are bi-directional, so either end can be connected to the antenna.

2、There is no difference between the two RF ports of the filter. Both sides can be connected to the antenna or AP.

DESCRIPTION

The Acasom indoor 2.4 GHz 8-Pole Ultra-High Q Wi-Fi channel filters are ideal for co-located equipment installations. Available in seven versions for channels 1,3,5,7,9,11,13. They provide excellent adjacent channel rejection. By reducing interference from both inside and outside the band, improved performance of co-located equipment can be achieved. These bandpass filters are bi-directional, so either end can be connected to the antenna. These filters are designed to be installed indoors or in weather-resistant enclosures.

FEATURES

Rugged Aluminum Construction

Ultra Low Insertion Loss (1.5 dB nominal)

Industrial Grade

Reduce Interference and Improve Performance

SPECIFICATION

Channel1 （example）：

INCLUDED

1* PCS of Cavity Filter
