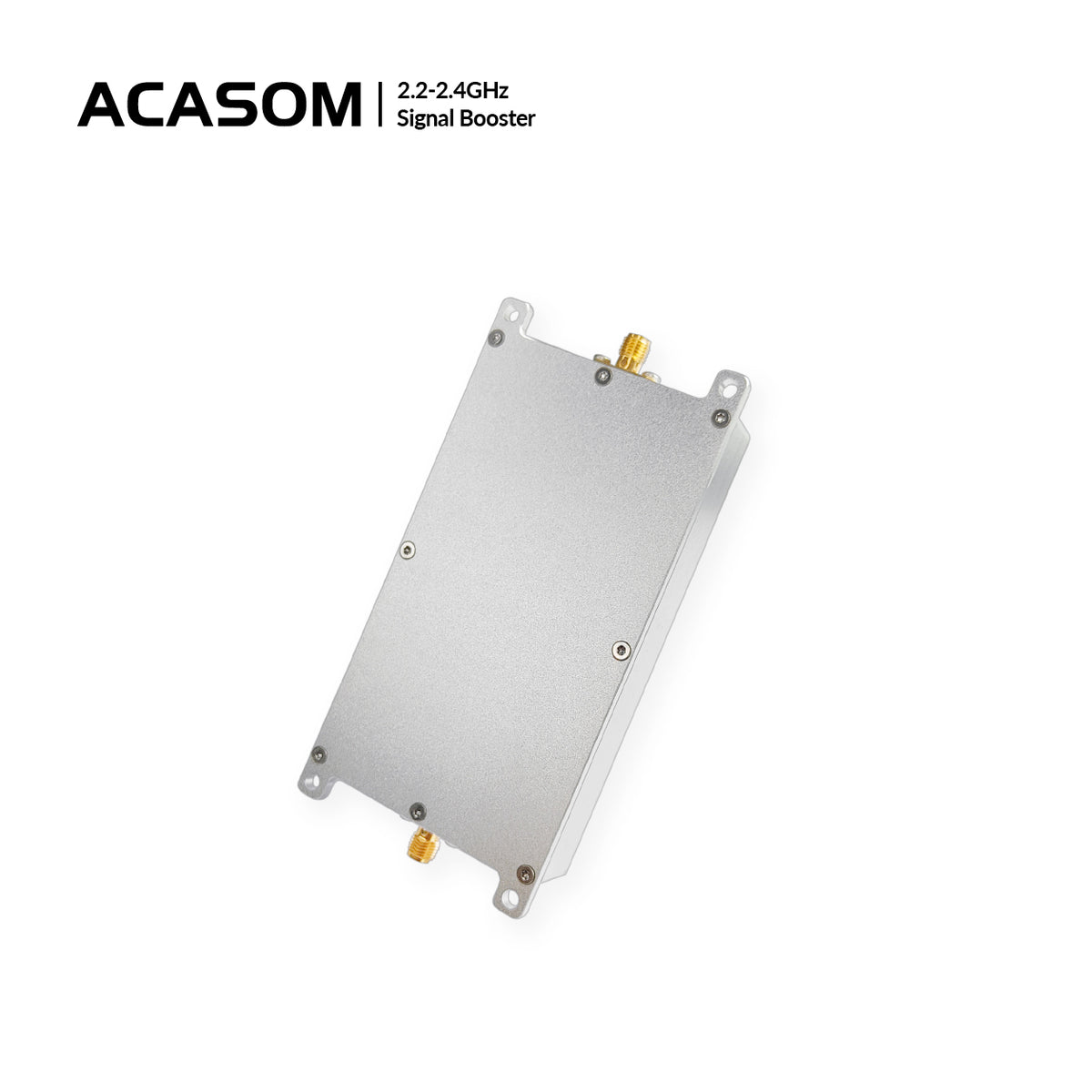

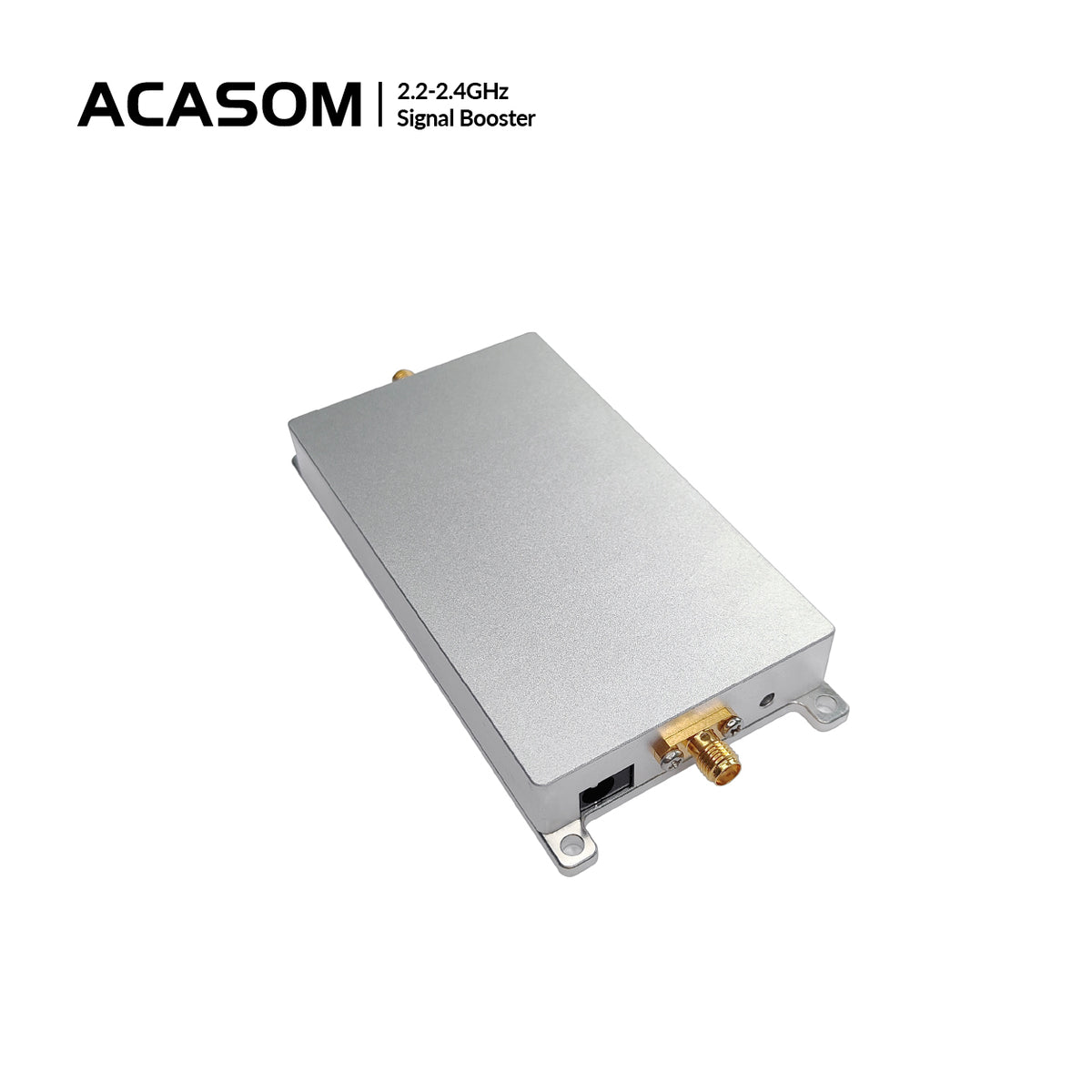

About this product
This high-performance RF signal booster is designed for long-range wireless communication. Featuring low-noise design, high linearity amplification and fast TX/RX switching technology.This booster significantly enhances signal strength, transmission distance and communication reliability in complex environments.The device supports plug-and-play operation and is suitable for telemetry systems, industrial wireless communication, long-range data transmission and S-band networking applications.
Features
Wide DC Supply Range : 12-24 V
High Receiving & Transmission Gain: 18 dB
ULtra-Low Noise Figure: ＜2.5dB
Ultra-Fast TX/RX Switch Time Delay: ＜1 μs
Wide Operating Temperature: -30℃～+70℃
Specification
|
Items |
Specifications |
|
|
Frequency Range |
2200-2400MHz |
|
|
Output Power |
10W(40dBm) |
20W(43dBm) |
|

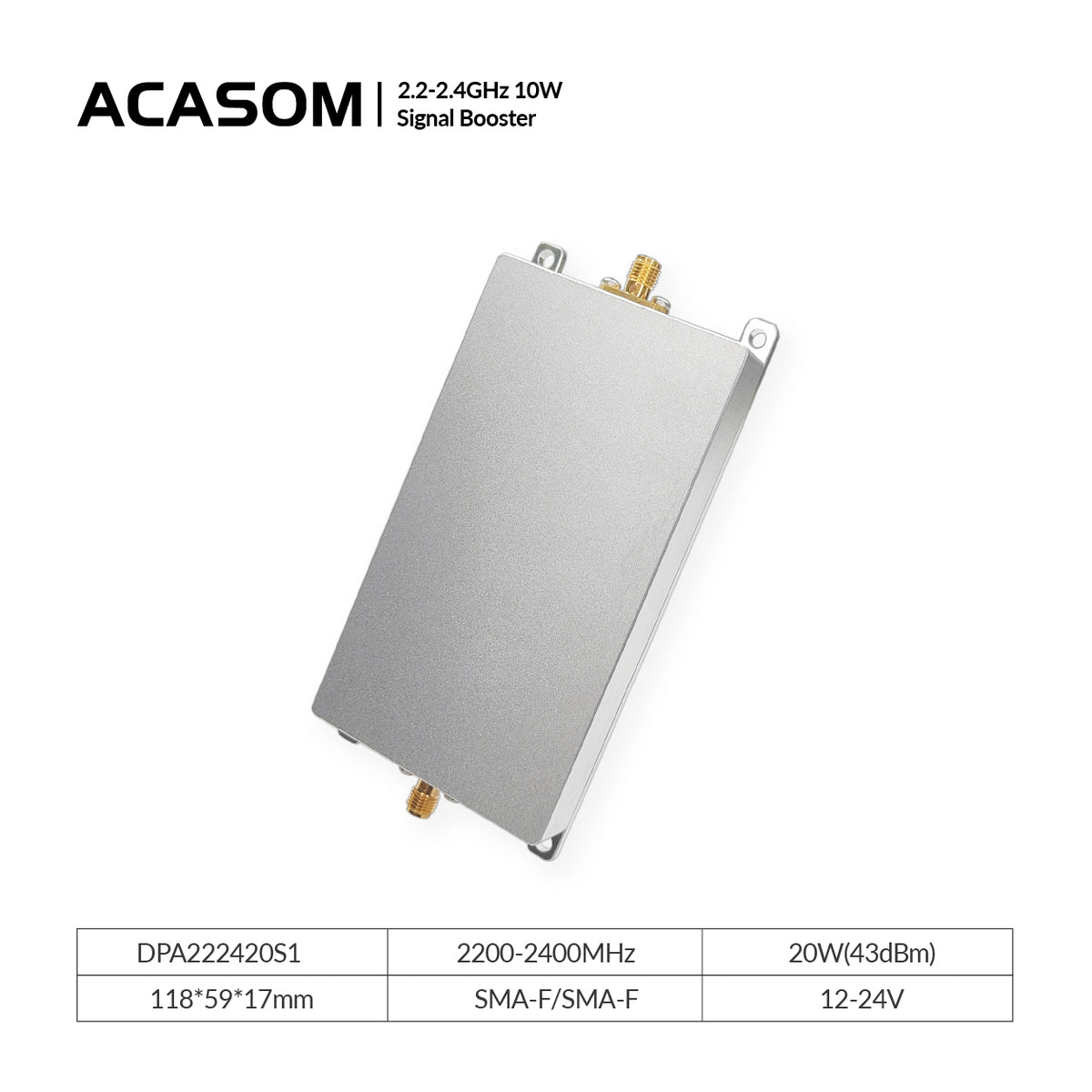

Model No. |
DPA222410S1 |
DPA222420S1 |
|
DC Supply |
12-24 V |
|
|
Receiving Gain |
18 dB |
|
|
Transmission Gain: |
18 dB |
|
|
Noise Figure |
＜2.5dB |
|
|
TX/RX Switch Time Delay |
＜1μs |
|
|
Operating Temperature |
-30°C～+70°C |
|
|
Storage Temperature |
-40°C～+150°C |
|
|
Operating Humidity |
Up to 95% |
|
|
RF Connector |
Input: SMA-Female; Output: SMA-Female |
|
|
Power Socket |
5.5*2.1mm DC( default ) |
|
|
Shell Size |
118*59*17mm |
|
|
Shell Material |
Aluminum |
|
|
Net Weight |
200g |
|
Attentions
1）The input power shall NOT exceed 20dBm to avoid damage.
2）Connect antenna and secure all cables before power-on,do not power on without antenna load.
3）Power supply recommended: 10W:24V@2A; 20W:24V@3A.
4）Maintain good ventilation for heat disspation,a heat sink or cooling fan is recommended.
5）Never swap RFin /ANT ports,reversed wiring will damage the booster.
