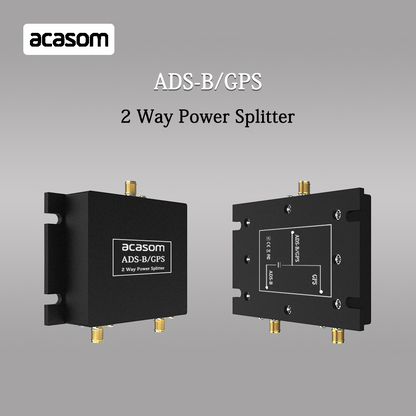

ACASOM TWO-WAY Splitter ADS-B / GPS
Working Band: 800-2150MHz
Max DC Current: 1A
Max DC Voltage: 48V
There are three types to choose

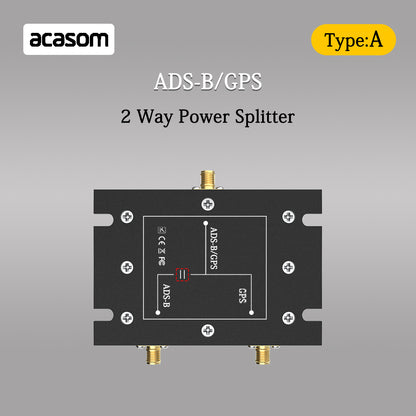

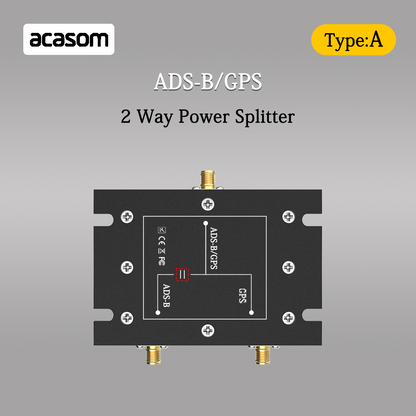

A: If you only need to power a GPS device, you can choose A
B: If you don't need to power GPS and ADS-B devices, you can choose B

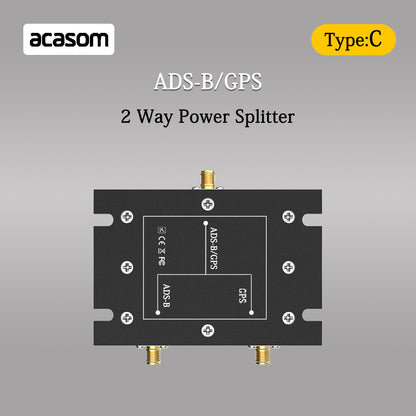

C: If you need to power any device, you can choose C
FEATURES
Lower Insertion Ioss：≤0.3dB
High Isolation: ≥30dB
SPECIFICATION
|
Number |
Items |
Specifications |
|
1 |
Frequency Band |
800-2150MHz |
|
2 |
Output ports |
2-ways |
|
3 |
Insertion Loss |
≤3.2dB |
|
4 |
Ripple |
≤0.1dB |
|
5 |
Return Loss |
≤1.3: 1 |
|
6 |
Isolation |
≥30dB |
|
7 |
Amplitude Balance |
0.2dB |
|
8 |
Phase Balance |
3° |
|
9 |
Impedance |
50 Ohms |
|
10 |
PowerHanding |
50W |
|
11 |
Operating Temperature |
-40℃～75℃ |
|
12 |

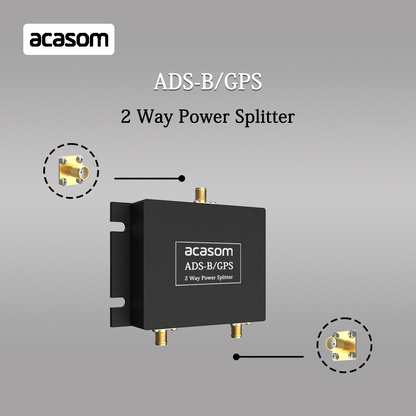

RF Connector |
SMA Female |
|
13 |
Surface Finish |
Black Paint |
|
14 |

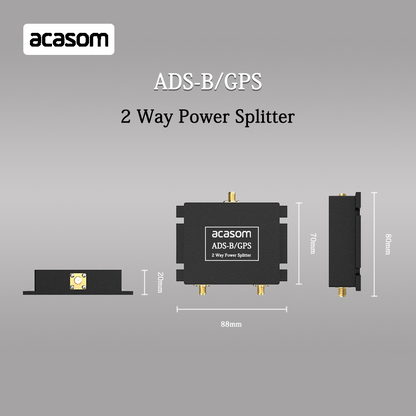

Dimensions |
70*88*20mm |
|
15 |
Weight |
0.26Kg |

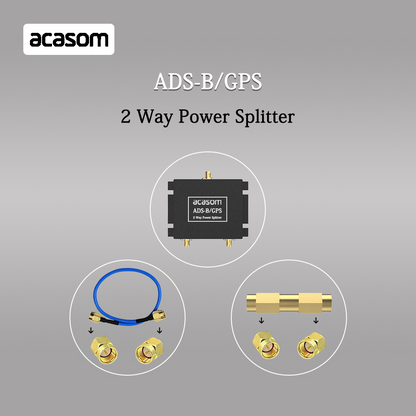

INCLUDED
-
1PCS* Two-Way Power Divider
-
1PCS* RF Adapter（SMA-MALE TO SMA-MALE）
-
1PCS* RG402 Blue Cable (SMA-MALE TO SMA-MALE）
