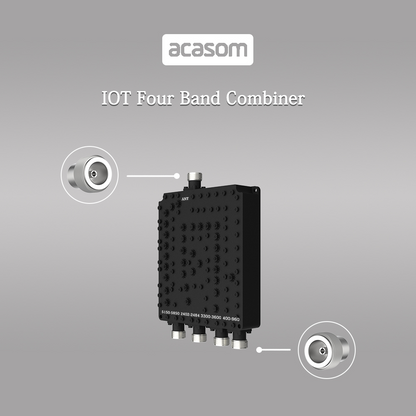

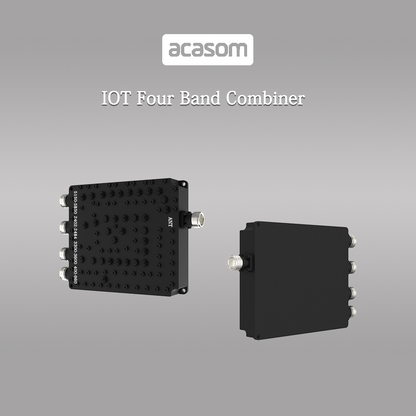

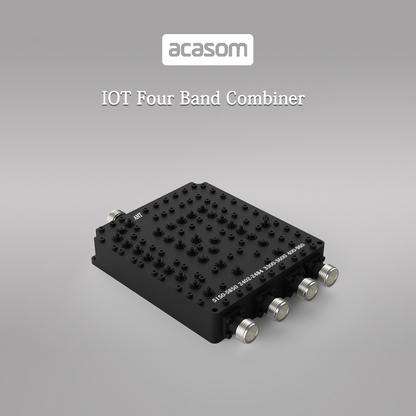

ACASOM IOT Four Band Cavity Diplexer/Combiner

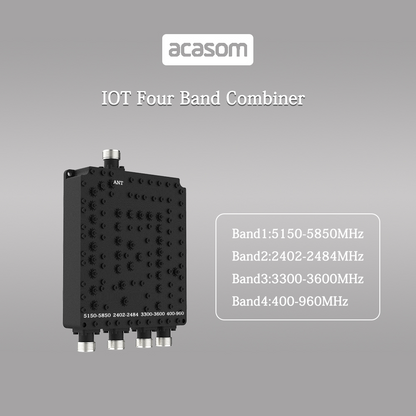

Working Band1: 5150-5850MHz
Working Band2: 2400-2484MHz
Working Band3: 3300-3600MHz
Working Band4: 400-960MHz
Out of Band Rejection：≥85dB
DESCRIPTION
The IOT 4 bands cavity diplexer combines 400-960MHz, 2400-2484, 3300-3600, and 5150-5850MHz, and uses for WIFI and IOT wireless networks. This component has ultra-low insertion loss and good out-of-band suppression at other bands from a distance of side frequency.
FEATURES
Out of Band Rejection：≥85dB
Ultra Low Insertion Loss (0.3 dB nominal)
Industrial Grade
Reduce Interference and Improve Performance
|
Frequency(MHz) |
400-960 |
2400-2484 |
3300-3600 |
5150-5850 |
|
Band width(MHz) |
560 |
84 |
300 |
700 |
|
Insertion Loss(dB) |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Ripple(dB) |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
VSWR |
≤1.3 |
≤1.3 |
≤1.3 |
≤1.3 |
|
DC Pass |
Yes |
No |
No |
No |
|
Out of band Rejection (dB) |
≥85@other three band |
≥85@other three band |
≥85@other three band |
≥85@other three band |
|
Maximum Power (W) |
≥20 |
|||
|
Impedance(Ω) |
50 |
|||
|
Port Connectors |
N-Female |
|||
|
DC Voltage |
24/48V(400-960MHz Port) |
|||
|
Surface Finish |
Black |
|||
|

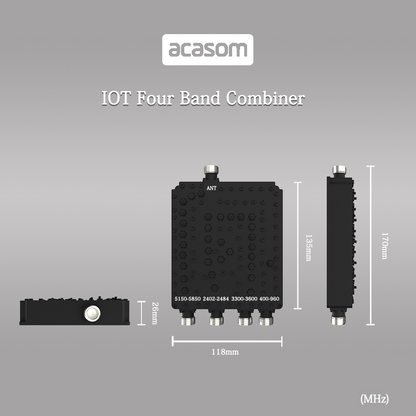

Size |
170*118*26mm |
|||
|
Weight |
0.82Kg |
|||
INCLUDED
1* PCS Cavity Combiner
