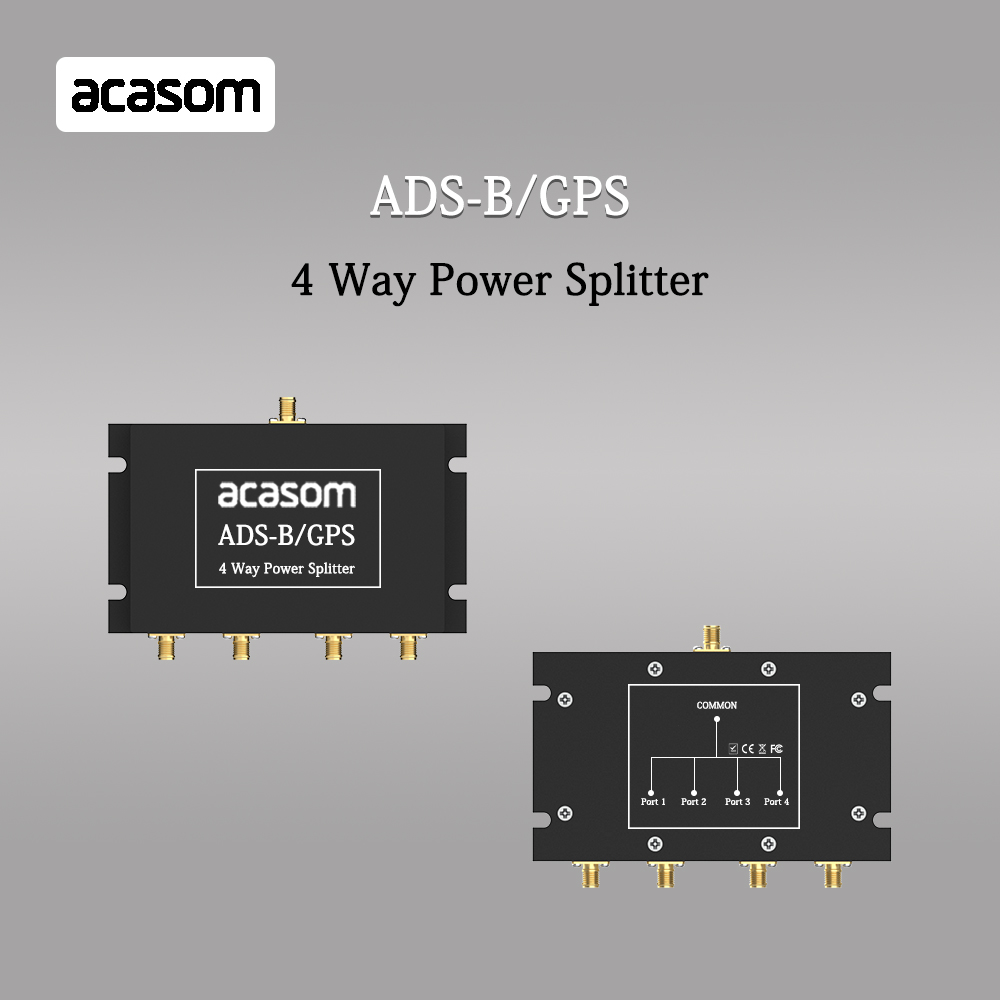

800MHz-2150MHz 4 Way Power Divider Splitter ADS-B / GPS

The 800MHz-2150MHz 4 Way Power Divider Splitter ADS-B / GPS is a high-performance device designed to distribute signals across multiple channels with minimal loss and high isolation. Operating in the 800-2150MHz frequency range, it is ideal for use in ADS-B (Automatic Dependent Surveillance-Broadcast) and GPS systems, where reliable signal distribution and low interference are critical.

Key Features:

• Lower Insertion Loss: The splitter offers exceptional performance with an insertion loss of ≤0.3dB, ensuring minimal signal degradation and efficient power distribution.

• High Isolation: With a high isolation rating of ≥30dB, the device prevents signal leakage between output ports, maintaining clean and independent signals.

• Max DC Current: 1A, making it capable of handling devices that require DC power.

• Max DC Voltage: 48V, offering flexibility in powering connected devices.

• Two Models to Choose From:

  • Model A: Suitable for applications where powering external devices is required.

  • Model B: Ideal for systems that do not require DC power.

This four-way splitter is designed for demanding applications in ADS-B, GPS systems, and other wireless communication setups, ensuring reliable performance with low signal loss and high isolation. Whether you need to power connected devices or not, the ACASOM Four Way Splitter is an excellent choice for seamless and efficient signal distribution.

SPECIFICATION

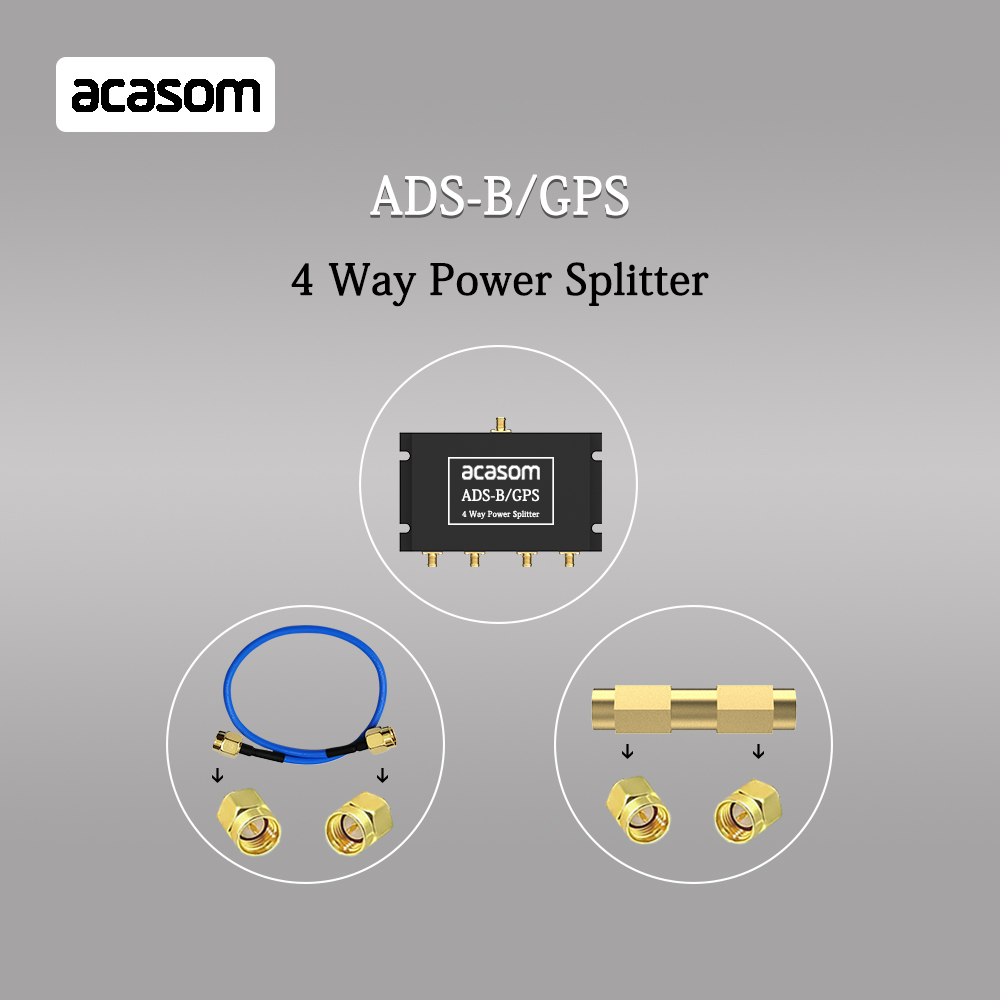

INCLUDED

• 1PCS* Four-Way Power Divider

• 1PCS* RF Adapter（SMA-MALE TO SMA-MALE）

• 1PCS* RG402 Blue Cable (SMA-MALE TO SMA-MALE）
