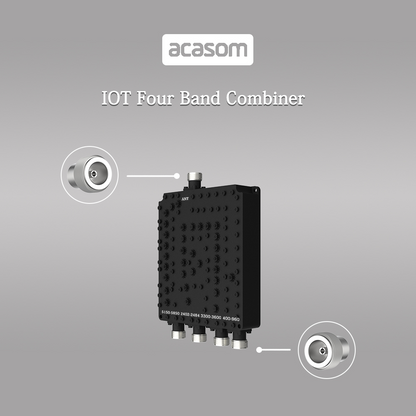

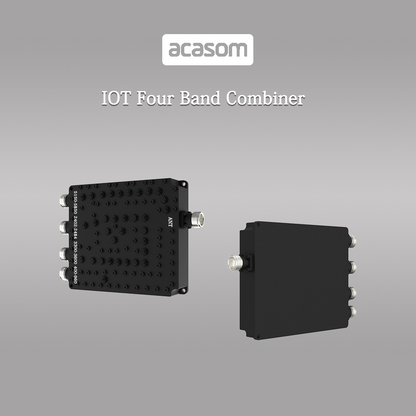

ACASOM IOT Four Band Cavity Diplexer/Combiner
Working Band1: 5150-5850MHz
Working Band2: 2400-2484MHz
Working Band3: 3300-3600MHz
Working Band4: 400-960MHz
Out of Band Rejection：≥85dB
DESCRIPTION
The IOT 4 bands cavity diplexer combines 400-960MHz, 2400-2484,
3300-3600, 5150-5850MHz, and uses for WIFI and IOT wireless
network. This component has ultra-low insertion loss and a good out-of-
band suppression at other bands from a distance of side frequency.
FEATURES
-
Out of Band Rejection：≥85dB
-
Ultra Low Insertion Loss (0.3 dB nominal)
-
Industrial Grade
-
Reduce Interference and Improve Performance
INCLUDED
1* PCS Cavity Combiner
