About this product

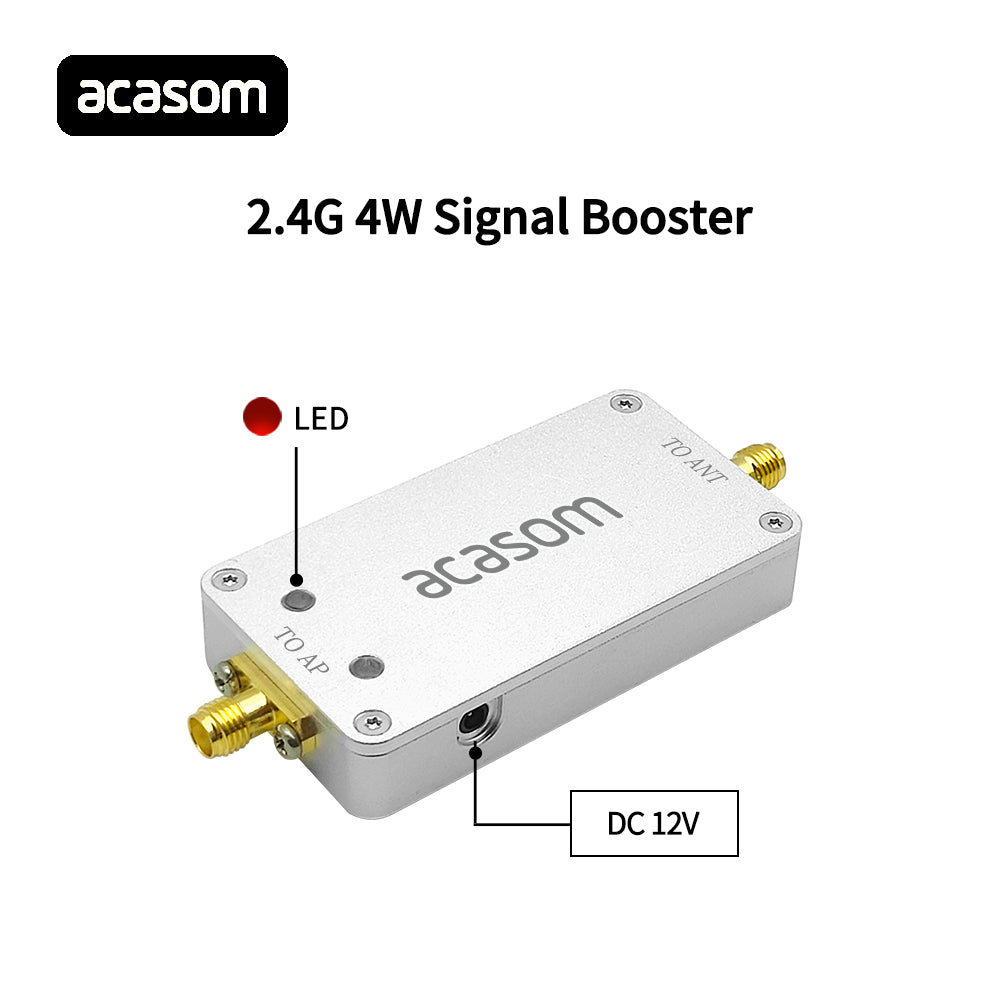

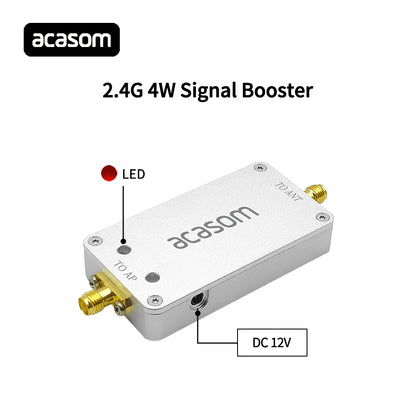

Designed for the widely used 2.4GHz ISM band (2400–2485MHz) ,this 4W signal booster is compatible with Wi-Fi, Bluetooth and industrial IoT devices. It provides 36dBm (4W) output power with 18dB TX and RX gain, delivering balanced two-way signal amplification, Featuring a wide 6–16V DC voltage input, standard SMA connector and 2.5×0.7mm power socket. Packaged in a tiny lightweight aluminum housing (64.5 × 34.5 × 10mm, 70g), provides reliable signal strength for Wi-Fi connection and industrial telemetry
Features
Wide Compatibility: Standard SMA port fits various antennas and wireless devices.
Long-Range Anti-Interference: Extends transmission distance with stable anti-interference signals.
Stable High Gain: Provides flat high gain for steady and enhanced signal coverage.
Easy Integration: Compact modular design for simple device installation.
Fast Heat Dissipation: All-aluminum build ensures stable long-term operation.
Technical Specification
|
Parameter |
Value |
|
Product Category |
Bidirectional Signal Amplification Module |
|
Operating Frequency |
2400-2485MHz |
|
Output Power |
4W (36dBm) |
|
Receive Gain |
18±1dB |
|
Transmit Gain |
18±1dB |
|
Power Supply |
2.5*0.7mm Interface 6-16V |
|
Input Power |
3-20dBm |
|
Product Weight |
70g |
|
EVM |
3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz |
|
Tx/Rx Delay |
<1μs |
|
Product Dimensions |
65*45*19.5mm |
|
Noise Figure |
≤2.5dB |
|

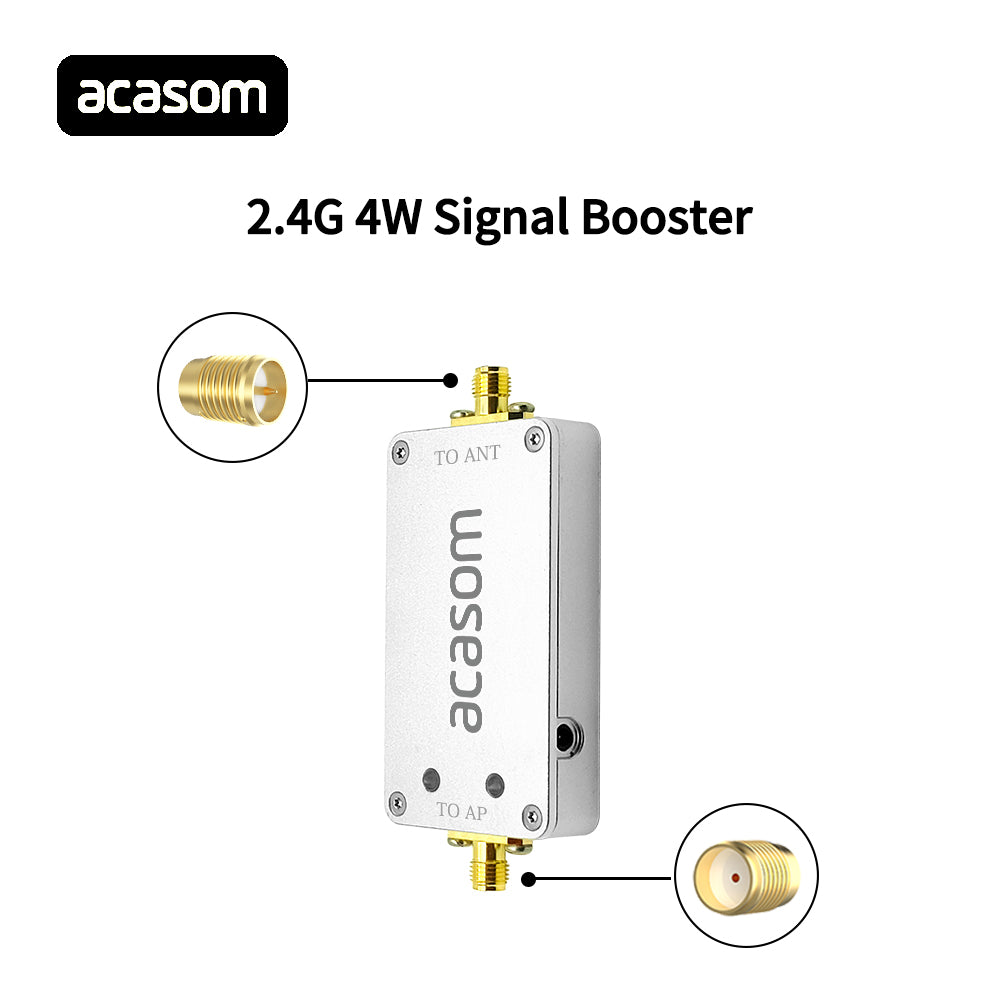

Connector Type |
To AP: SMA-Female; To ANT: SMA-Male |
|
LED Indicator |
Transmit: Green; Receive: Red |
|
Storage Temperature |
-40~150°C |
|
Operating Temperature |
-30~70°C |
