Super Miner12 Outdoor 868MHz Extender | ≤1.2dB Ultra-Low Noise Figure | 17/6dB Gain | BiasTee/Adapter/USB Power

Super Miner12 Outdoor 868MHz Extender | ≤1.2dB Ultra-Low Noise Figure | 17/6dB Gain | BiasTee/Adapter/USB Power

$108.00USD
$108.00USD
Sale Sold out
Shipping calculated at checkout.
FREQUENCY&FR CONNECTOR

DESCRIPTION
Introducing the ACASOM Super Miner12, a next-generation outdoor extender engineered for maximum performance in Helium Network and LoRaWAN systems. This advanced amplifier features three key improvements: an ultra-low Noise Figure (NF) of ≤1.2dB for superior signal sensitivity, flexible triple power supply modes (BiasTee, Adapter, or USB), and variable gain combinations (e.g., 17/6, 14/3, 11/0 dB) when paired with our Super BiasTee for precise system tuning. Designed for the 863-870MHz EU band, it delivers high output power (1W) with excellent efficiency, ensuring reliable, long-range coverage and enhanced Proof-of-Coverage for your hotspot.

OPTIMIZED SETUP SOLUTIONS

  • How to Set the Super BiasTee Value:

    1. With a long RF cable (>5 meters) or power divider between the extender and miner, set the Super BiasTee ATT=0dB.

    2. With a direct connection between the extender and hotspot, set the Super BiasTee ATT=6dB.

  • Connection Guide: Connect the extender in-line on the antenna cable. The Input port connects to your antenna, and the Output port connects to your hotspot miner.

KEY FEATURES

  • Ultra-Low Noise Figure: ≤1.2dB NF significantly improves receiver sensitivity for better signal reception.

  • Triple Power Supply: Versatile operation via BiasTee (DC over coax), DC Adapter, or USB cable.

  • Adjustable Gain: Work with the ACASOM Super BiasTee to achieve optimal gain settings (e.g., 17/6dB) for your specific environment.

  • High Power & Efficiency: 30dBm (1W) P1dB output with stable performance and clear LED indicators for TX/RX status.

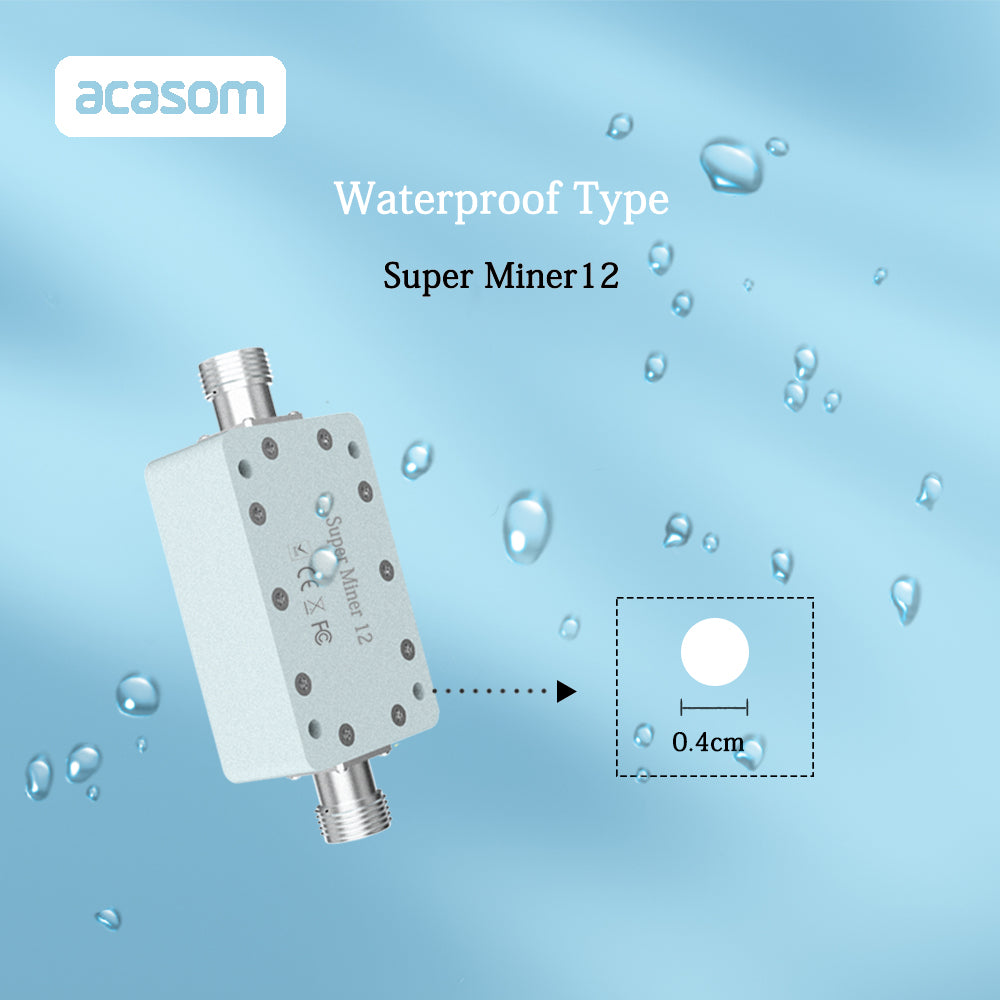

  • Rugged Outdoor Design: Compact, aluminum IP67 housing built to withstand harsh environmental conditions.

TECHNICAL SPECIFICATIONS



Parameter Specification Details / Benefit
Frequency Range 863 - 870 MHz Dedicated to EU LoRaWAN and Helium Network bands.
Receive Gain 17 dB ±1 Boosts weak incoming signals for better decoding.
Transmit Gain 6 dB ±1 Amplifies outgoing signals for extended range.
Noise Figure < 1.2 dB Exceptional sensitivity, minimizing added system noise.
Max Output Power (P1dB) 30 dBm (1 W) High power capability for strong signal transmission.
Operating Voltage 5 - 24 V DC Compatible with a wide range of power sources.

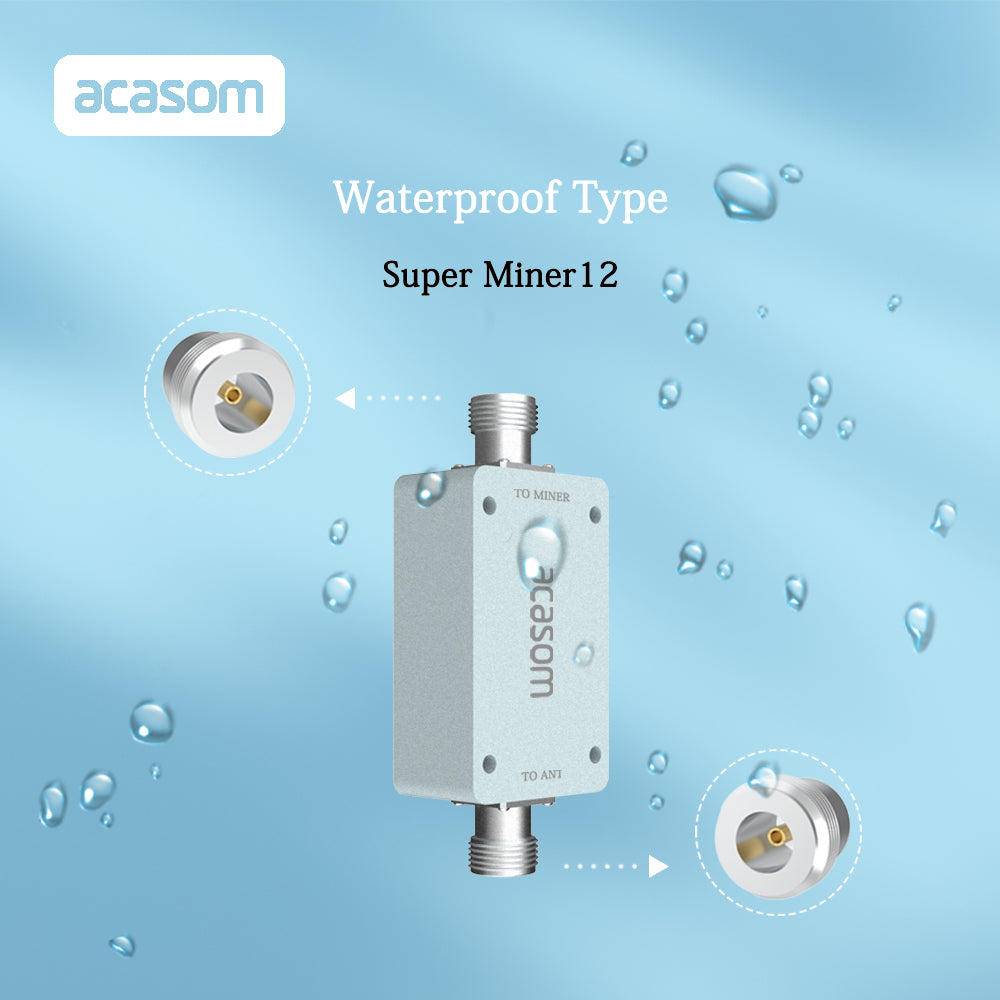

RF Connectors Input: SMA-Female; Output: RP-SMA-Female Standard connectors for secure connections.
Power Options 2.5*0.7mm Port (BiasTee/Adapter) & USB Maximum installation flexibility.
Operating Temperature -40℃ ~ +70℃ Reliable performance in extreme weather.

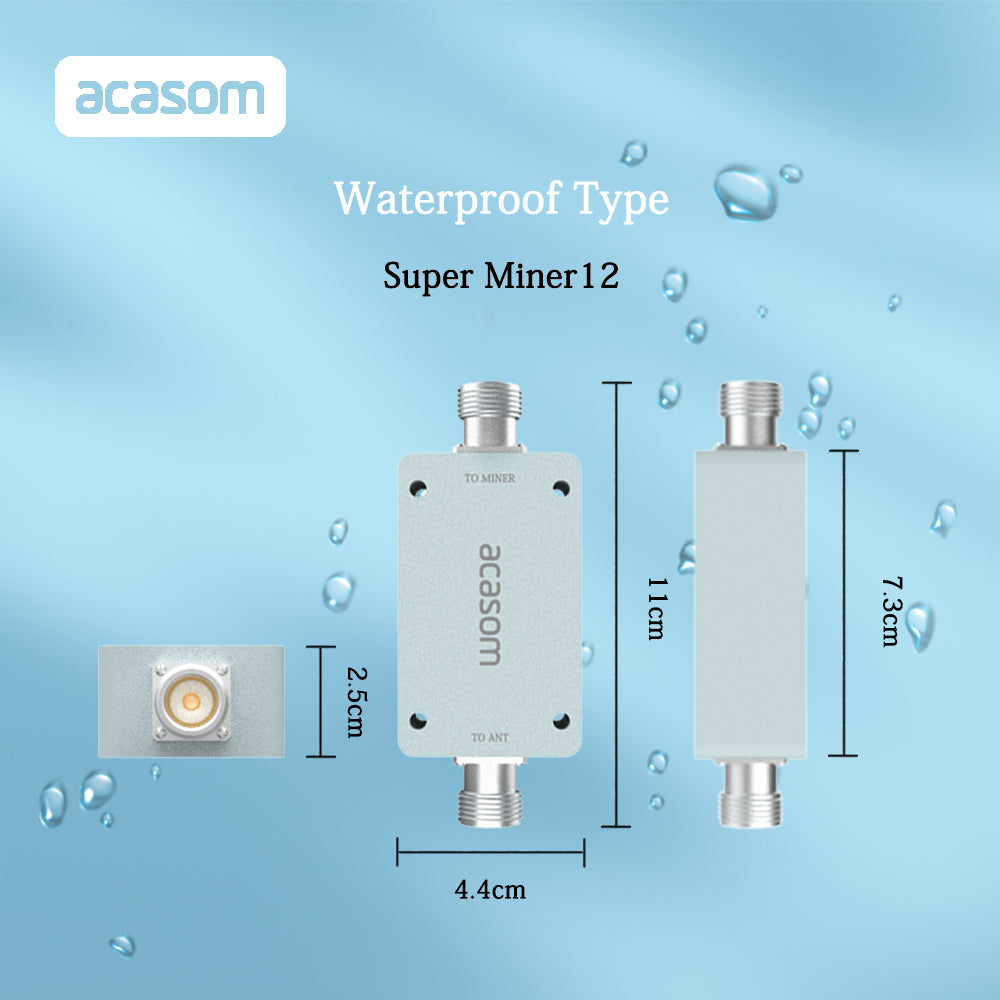

Dimensions 64.5 x 34.5 x 10 mm Compact and discreet form factor.
Net Weight 0.06 kg Lightweight yet durable construction.

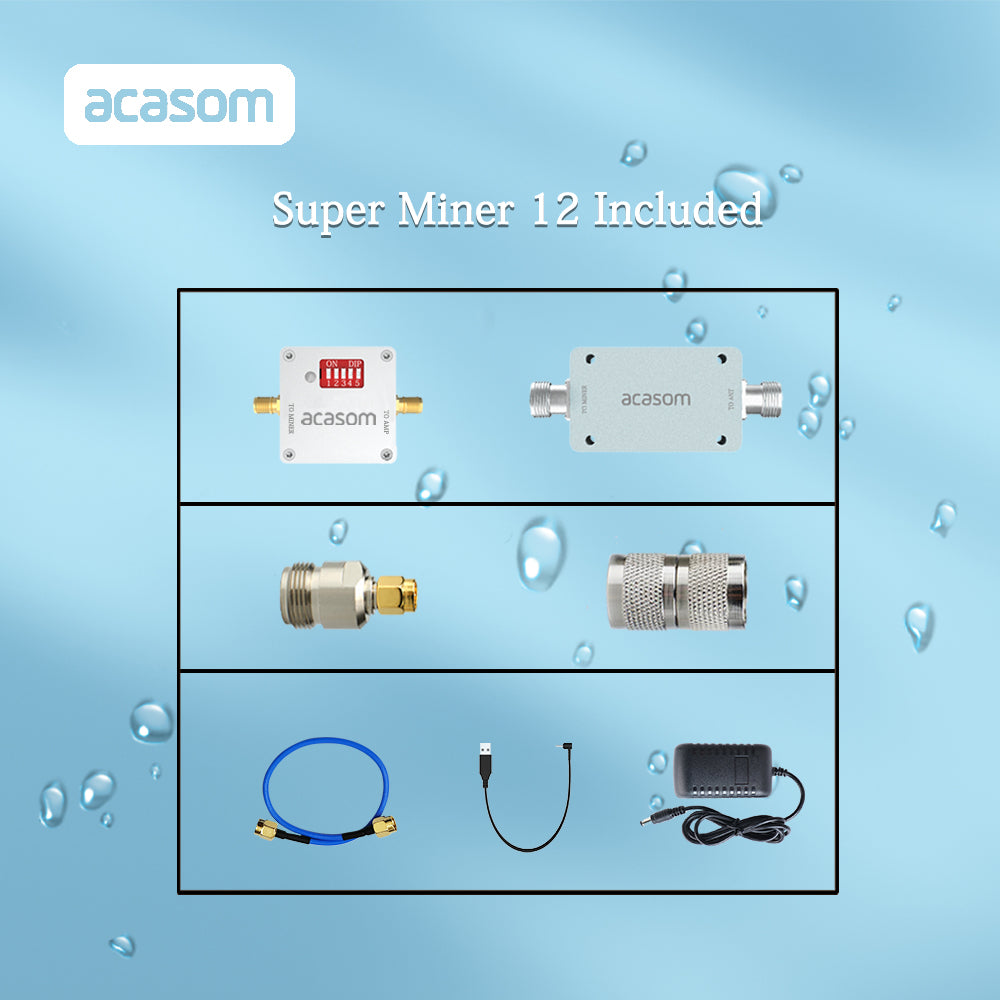

PACKAGE INCLUDES

138 SET:

  • 1 x Super Miner12 Extender

  • 2 x RG402 Cable (20CM)

  • 1 x Bias Tee

  • 1 x USB Adapter

  • 1 x EU Power Plug

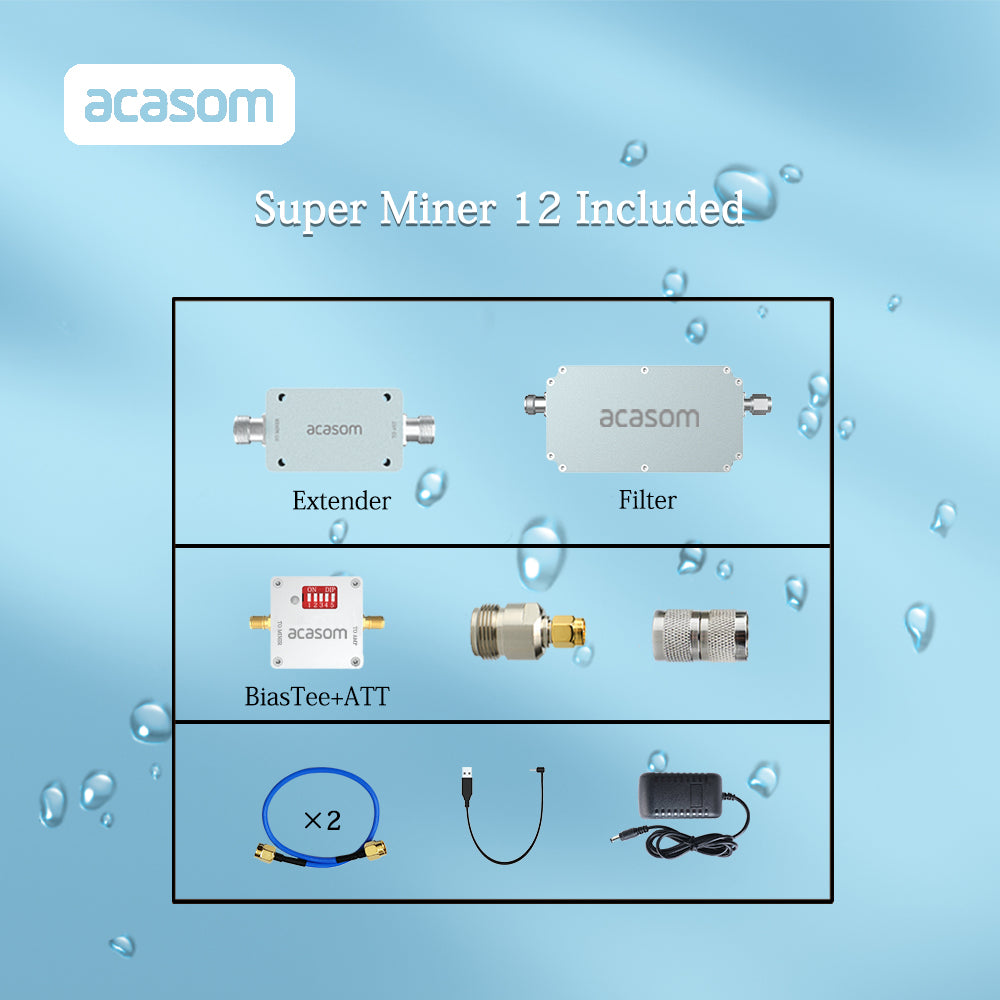

198 SET (Complete Kit):

  • 1 x Super Miner12 Extender

  • 2 x RG402 Cable (20CM)

  • 1 x Bias Tee

  • 1 x USB Adapter

  • 1 x EU Power Plug

  • 1 x RF Adapter

  • 1 x 868MHz Cavity Filter (for superior interference rejection)
