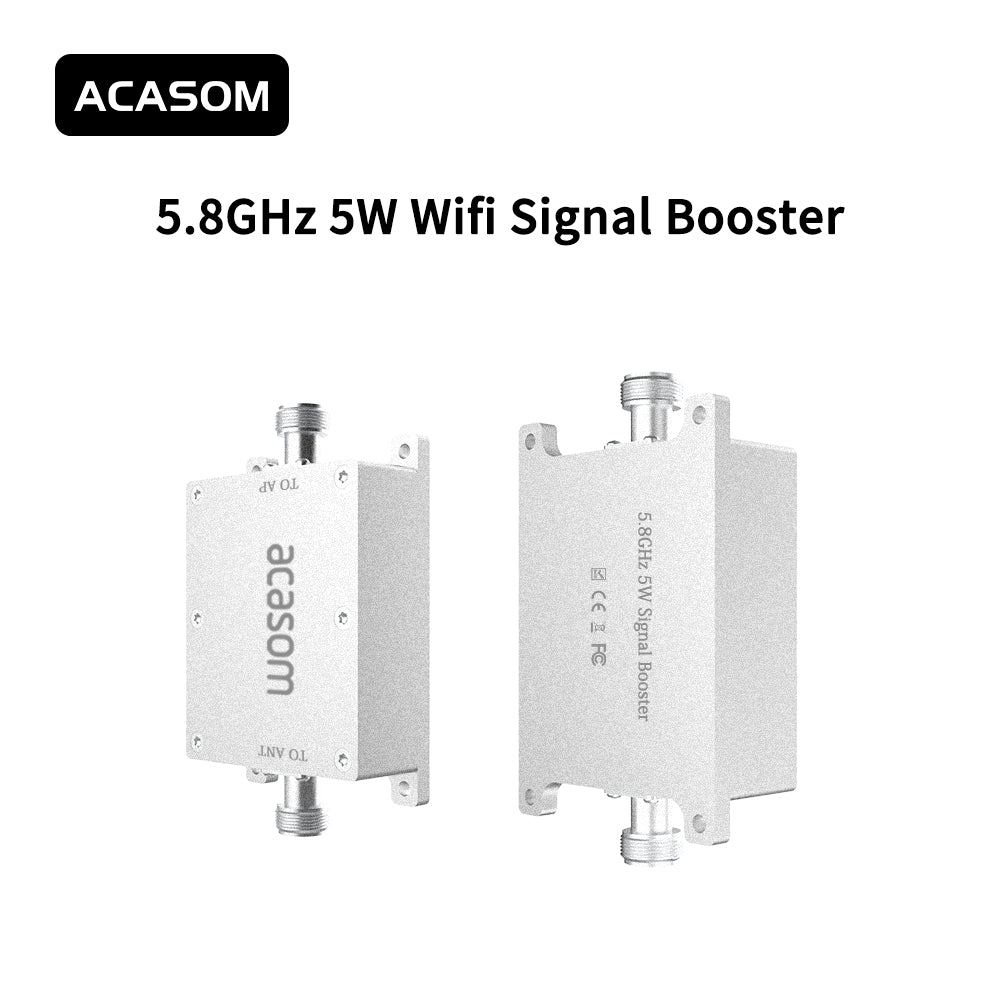

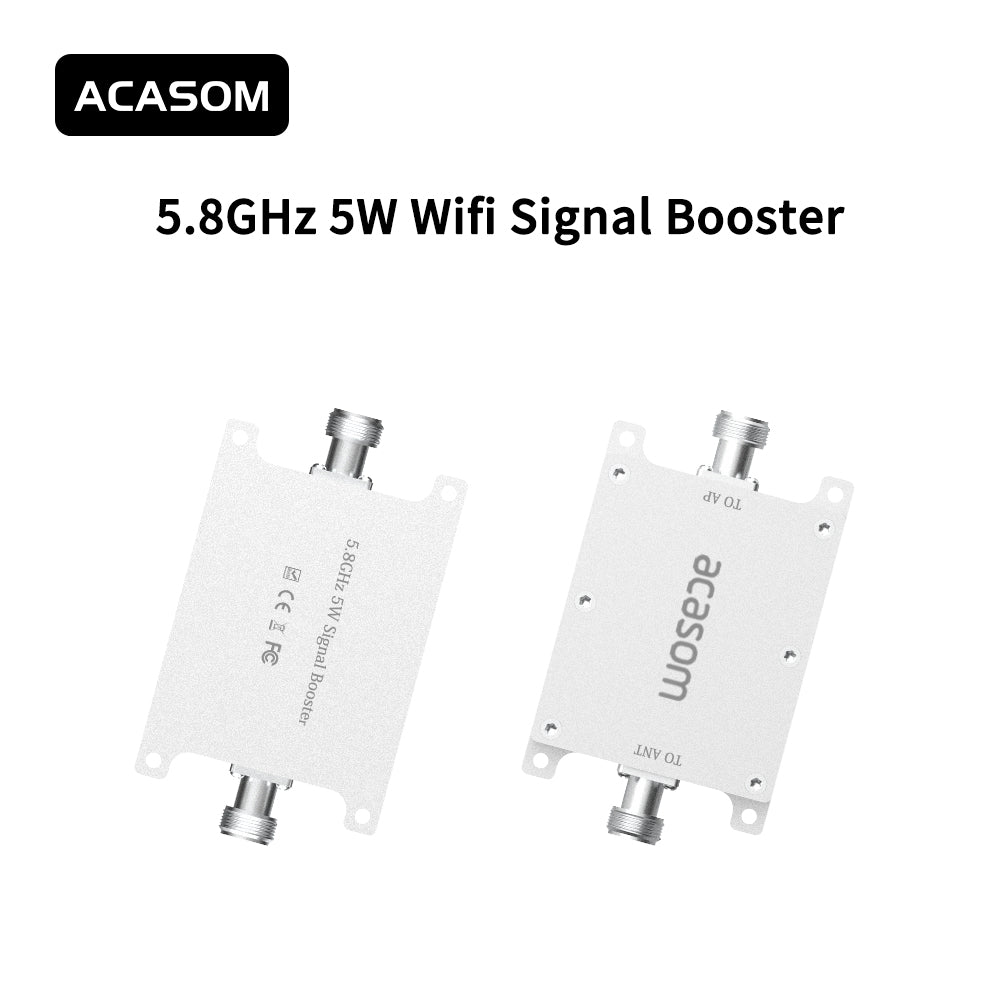

Product Description
This 5.8GHz bidirectional signal amplifier delivers 5W (37dBm) output power with 17±1dB Tx/Rx gain, low noise figure ≤2.5dB and <1μs delay. N-Type female connectors, 6–16V wide voltage input, Ideal for 5GHz wireless coverage extension, industrial private networks, surveillance backhaul and emergency communication.
Selling Point
Superior GaN Chip Construction : GaN chips adopt ceramic packaging, different from plasticpackaged chips widely available on the market. ·
Premium PCB Manufacturing : Adopts highfrequency board with large area goldplating process, unlike ordinary boards with tinplating process on the market, enabling longterm stable operation under highpower conditions.
Technical Specification
|
Parameter |
Value |
|
Pout/dBm |
37 dBm (5W) |
|
Working Frequency |
5725-5850 MHz |
|
TX Gain (S21) |
18 dB |
|
RX Gain (S21) |
18 dB |
|
DC Supply |
8 – 18 V |
|

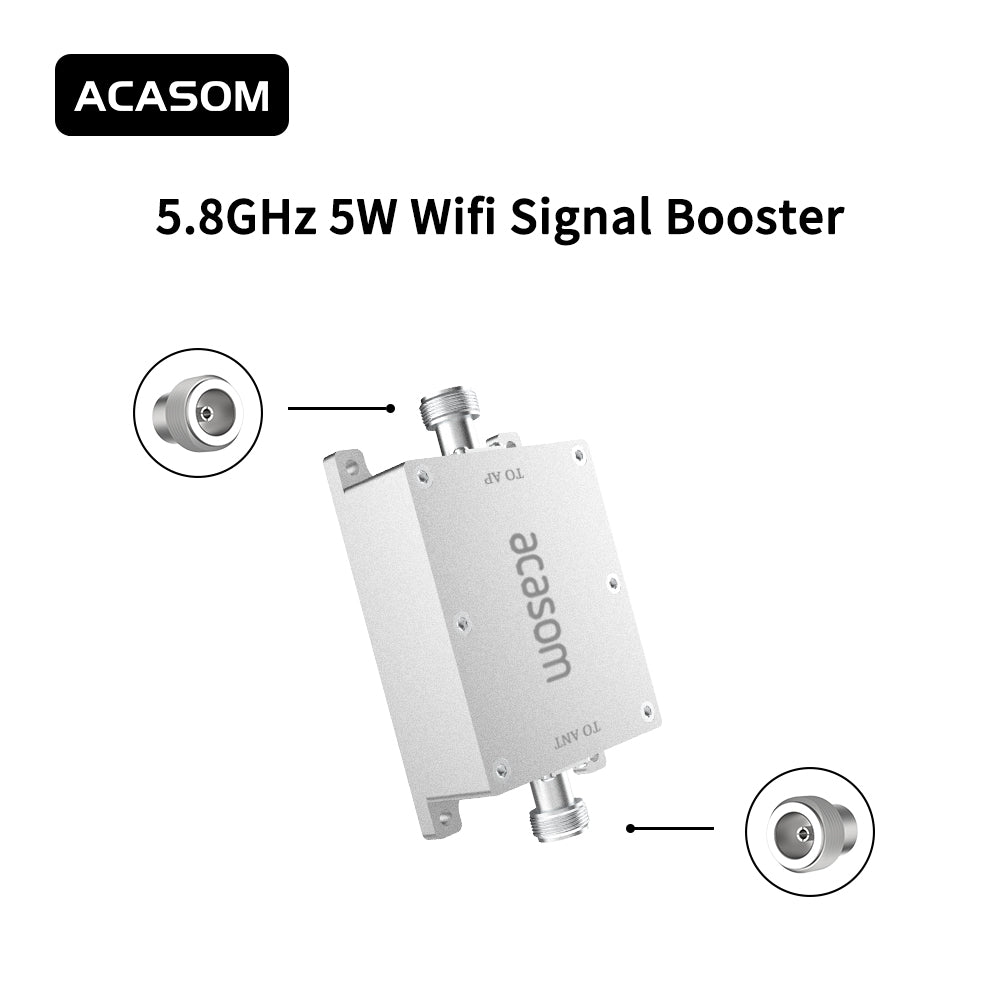

Connector |
N-male |
|

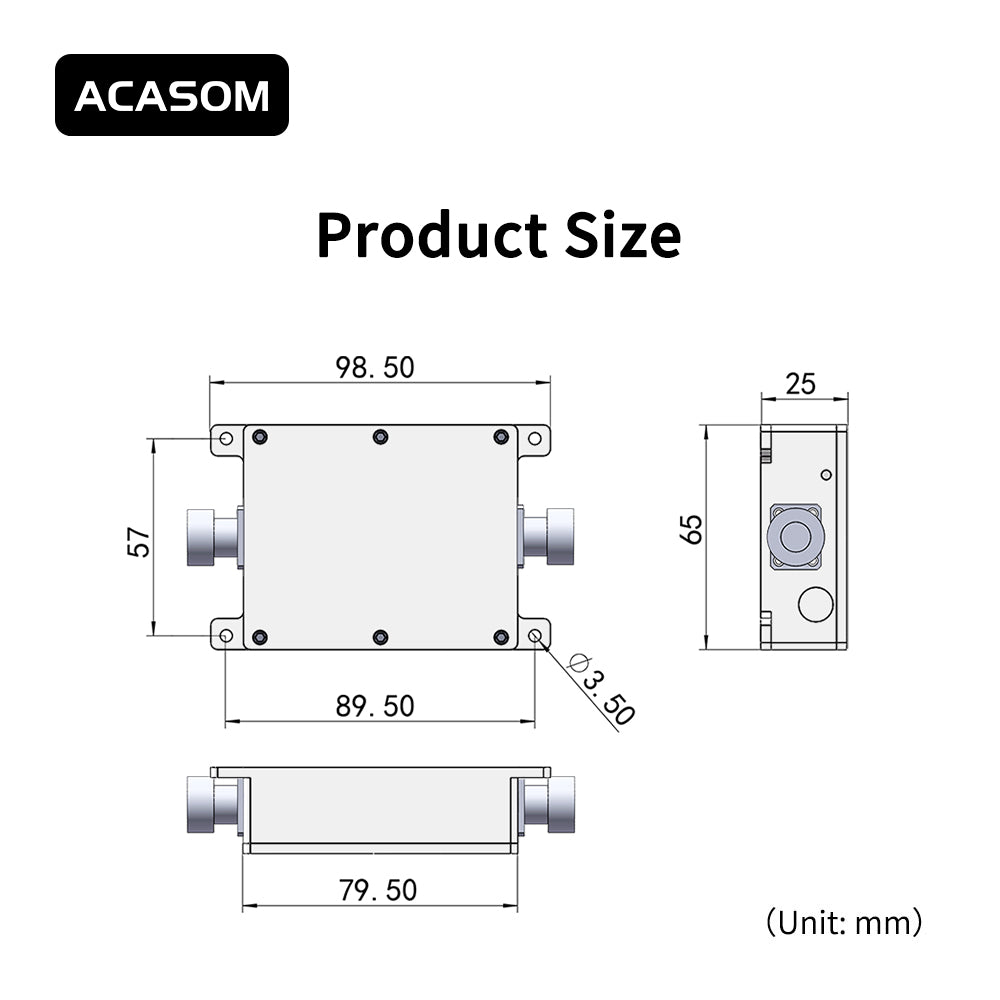

Size |
98.5 × 65 × 25 mm |
|
Weight |
0.27 kg |
|

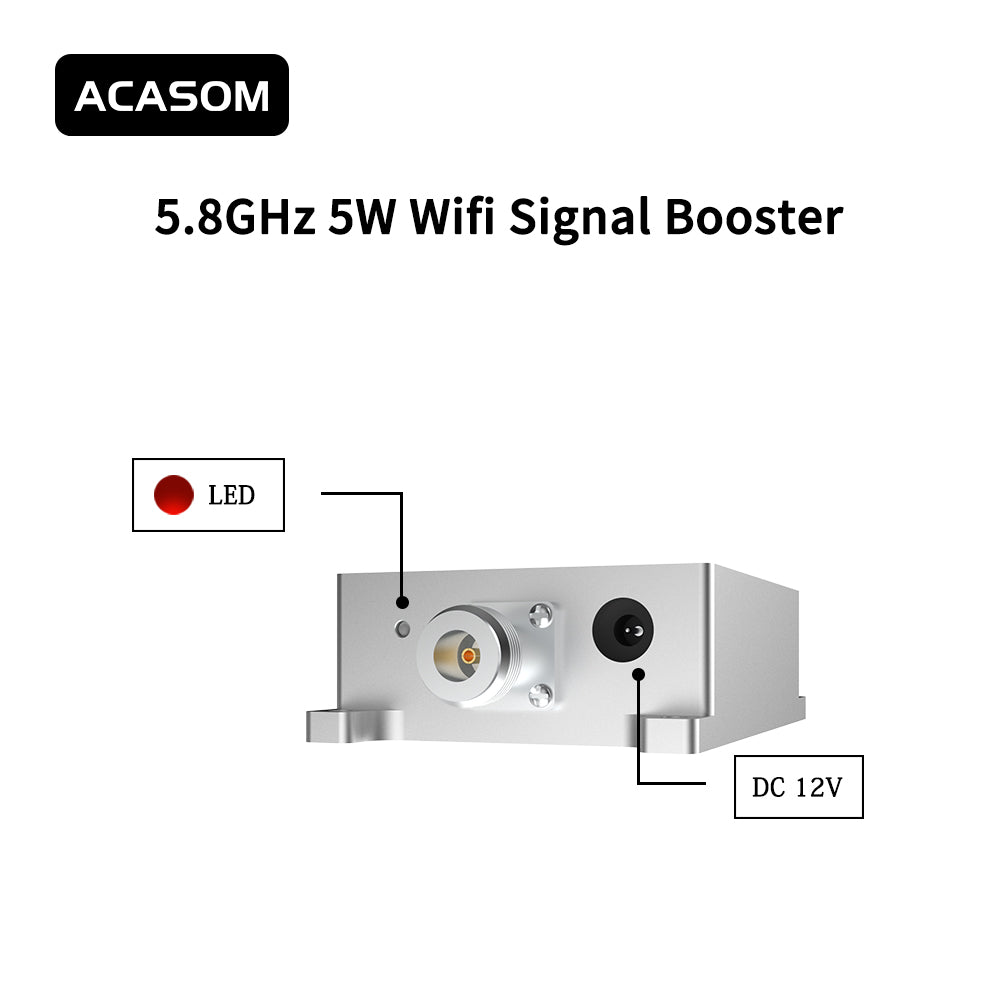

Power Socket |
5.5 × 2.1 mm |
