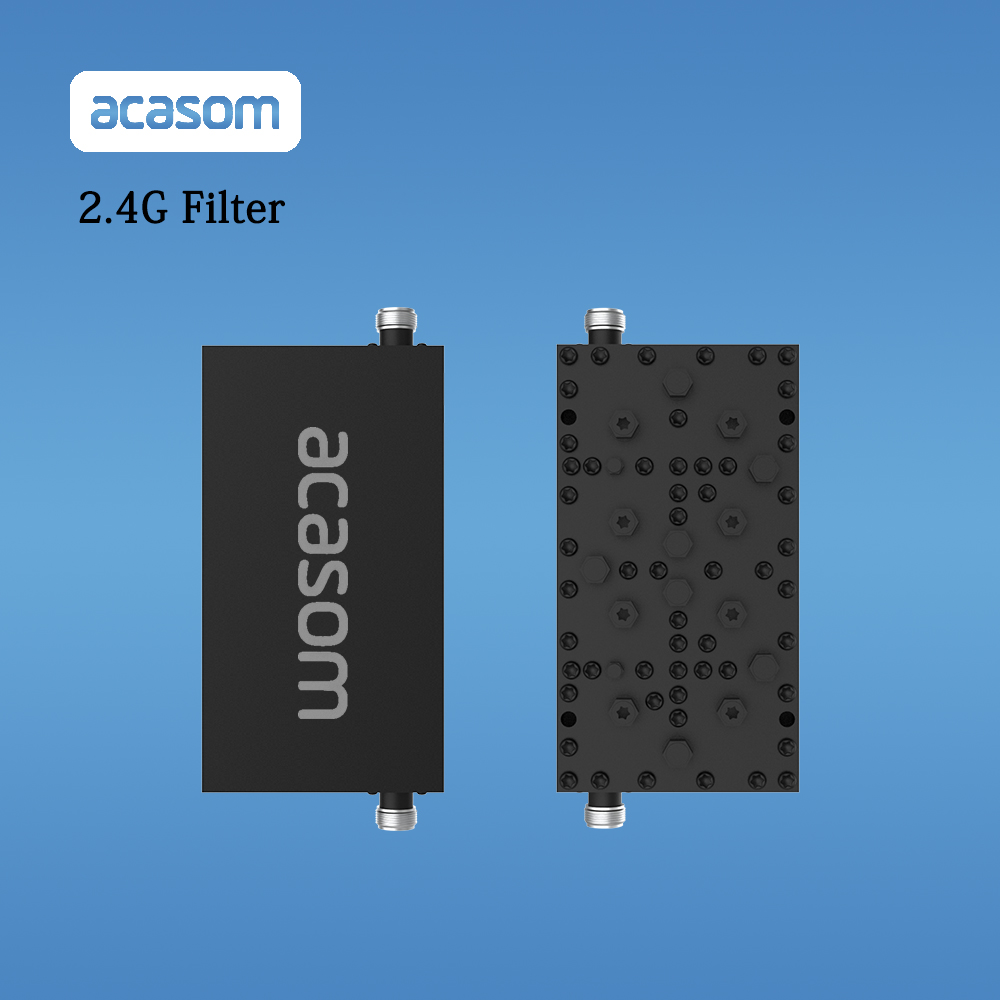

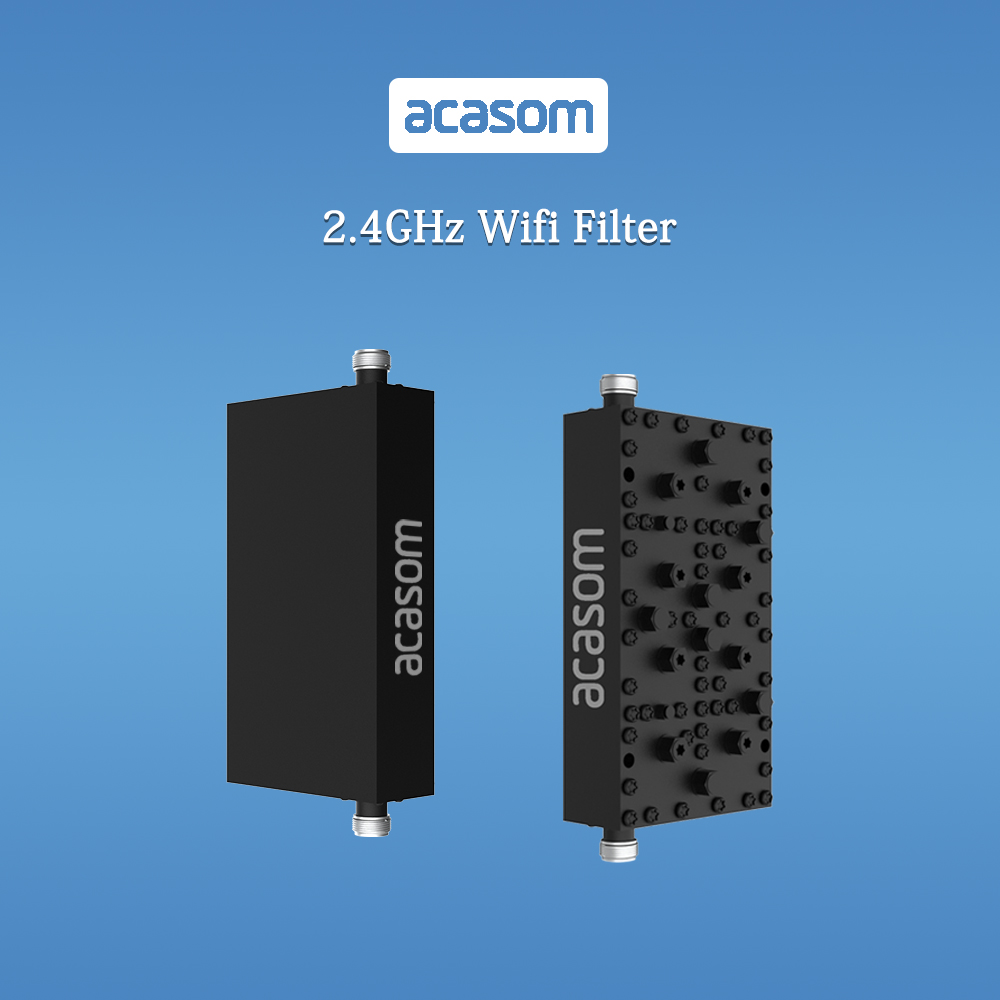

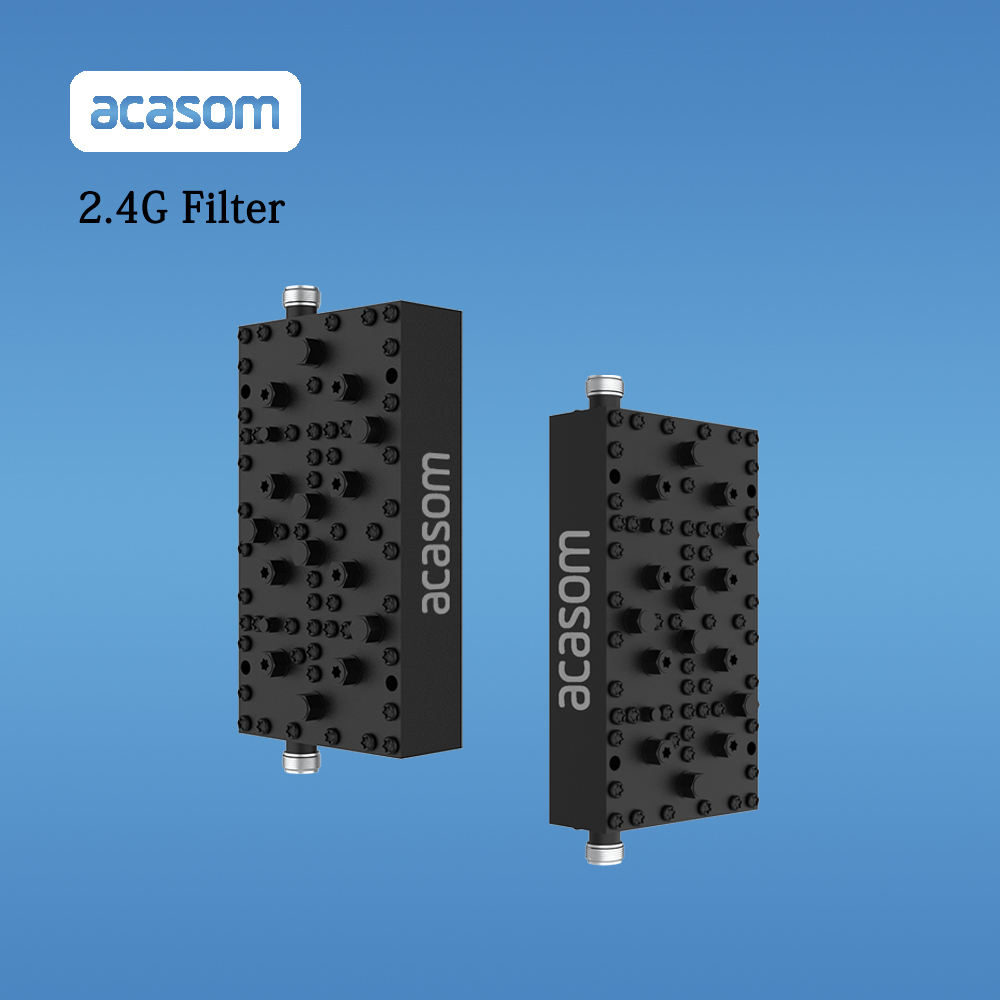

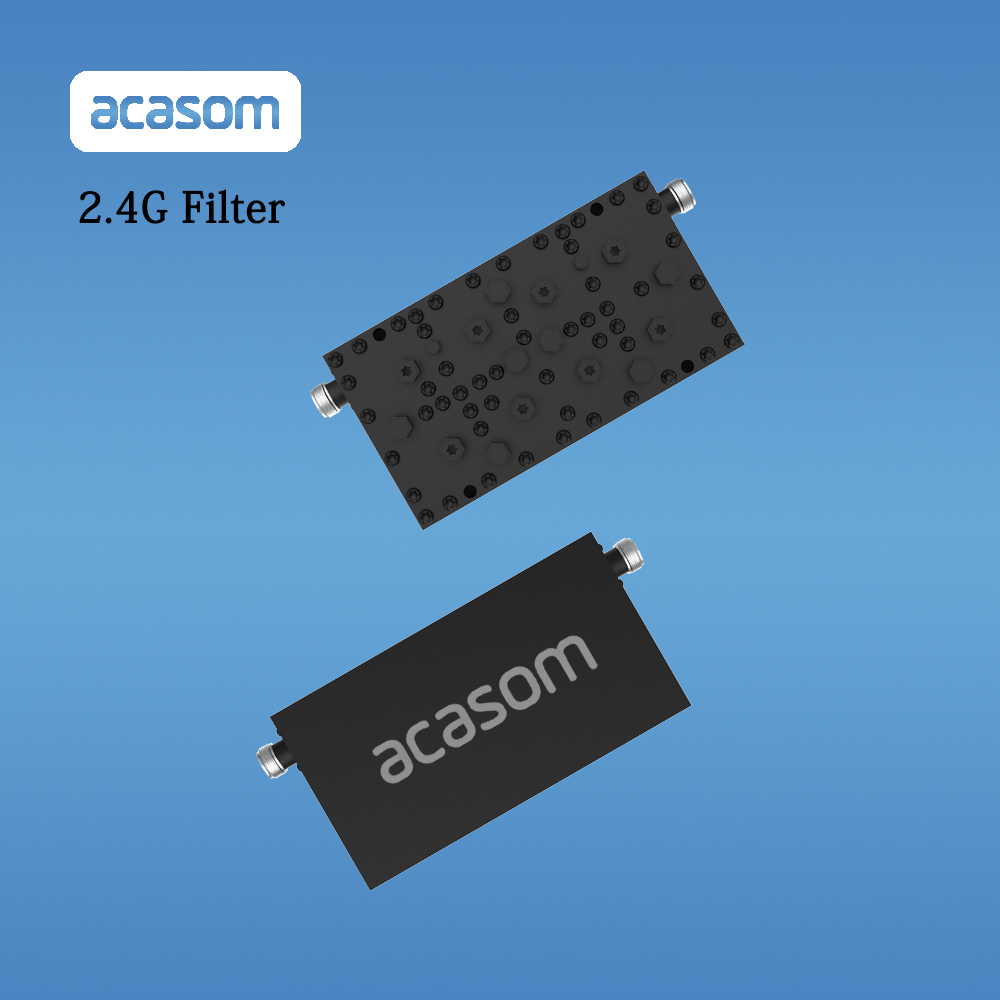

2.4GHz Indoor Bandpass 20MHz channel13 2462MHz to 2482MHz Cavity Filter WIFI Network 2.4 GHz Ultra High Q 8-Pole

CASOM  provides 2.4 GHz 8-Pole Ultra-High Q Wi-Fi channel filters that are ideal for co-located equipment installations.

Working Channel 13: 2462-2482MHz

Bandwidth：20MHz

Out of Band Rejection：≥80dB

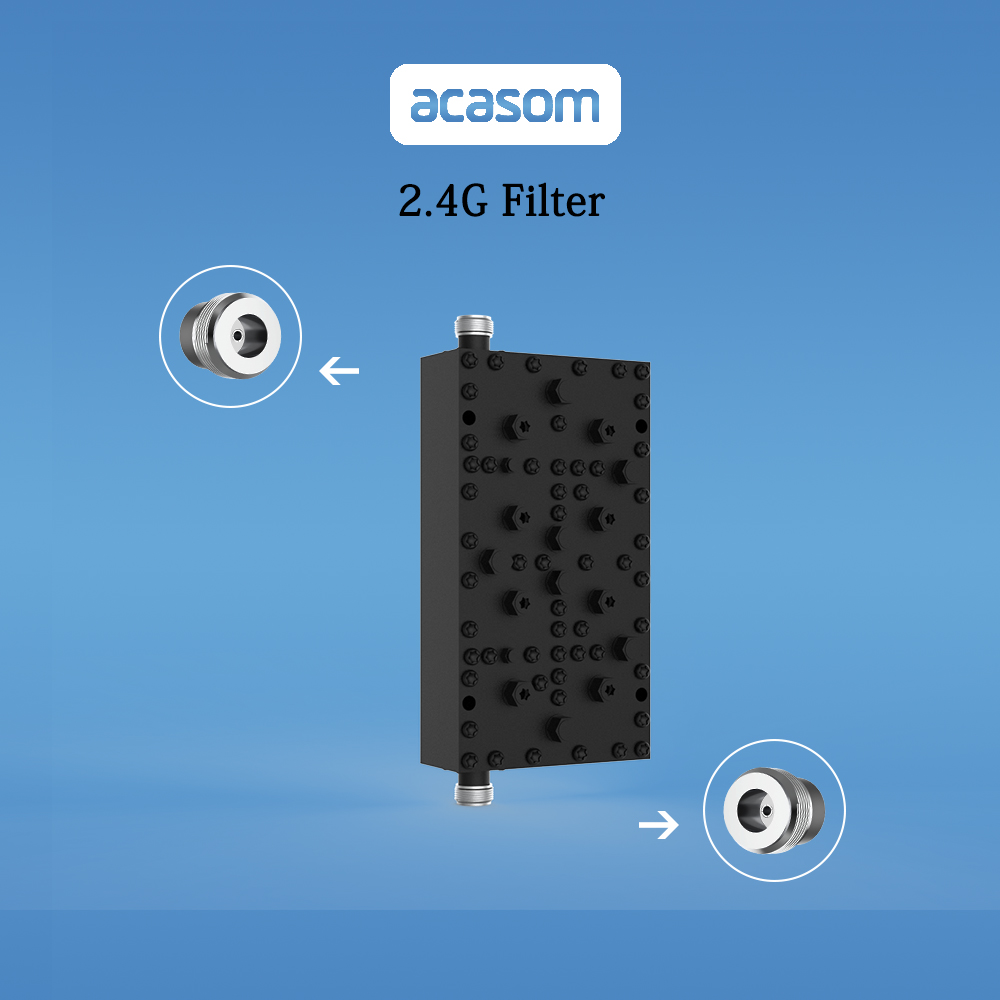

ABOUT CONNECTIONS

1、These bandpass filters are bi-directional, so either end can be connected to the antenna.

2、There is no difference between the two RF ports of the filter. Both sides can be connected to the antenna or AP.

DESCRIPTION

The Acasom indoor 2.4 GHz 8-Pole Ultra-High Q Wi-Fi channel filters are ideal for co-located equipment installations. Available in seven versions for Channels 1,3,5,7,9,11,13. They provide excellent adjacent channel rejection. By reducing interference from both inside and outside the band, improved performance of co-located equipment can be achieved. These bandpass filters are bi-directional, so either end can be connected to the antenna. These filters are designed to be installed indoors or in weather-resistant enclosures.

FEATURES

• Rugged Aluminum Construction

• Ultra Low Insertion Loss (1.5 dB nominal)

• Industrial Grade

• Reduce Interference and Improve Performance

SPECIFICATION

Channel1 （example）：

INCLUDED

1* PCS of Cavity Filter
