Waterproof 868MHz Extender Filter Helium Signal Strength Lora Booster outdoor
Waterproof 868MHz Extender Filter Helium Signal Strength Lora Booster outdoor
Couldn't load pickup availability
DESCRIPTION
Waterproof Outdoor 868MHz Extender and Filter Designed For Helium Network.
How to choose the gain of RX and TX?
if you use 4 way splitter(4miners or more), and long cable(about 10m), recommend RX=17 TX=10(default）；
if you use 3 way splitter(3miners), and long cable(about 10m), recommend RX=17 TX=6；
if you use 2 way splitter(2miners ), and long cable(about 10m), recommend RX=12 TX=3；
if you have only one miner, and a long cable(about 10m), recommend RX=10 TX=0；
For easy debugging, we recommend that you buy an attenuator, 3dB or 6 dB.
|
Bands |
LoRa ISM , RFID and Helium Miner |
|
Bandpass Min frequency |
863MHz |
|
Bandpass Max frequency |
870MHz |
|
Maximum Insertion Loss |
1.0dB |
|
VSWR |
≤1.2 |
|
Maximum Power |
20Watts |
|
Out of band Rejection |
≥55dB@100-853MHz ≥55dB@880-2700MHz |
|
Surface Finish |
black |
|
Port Connectors |
N-Female |
|
Size |
132*71.5*47.5mm |
|
Net Weight |
0.7Kg |
FEATURES
2.0dB ultra-low noise
Wide 6V to 24V operating input range
Powered by RF cable
Operating Temperature：-40℃～+60℃
Waterproof design IP67
DESCRIPTION

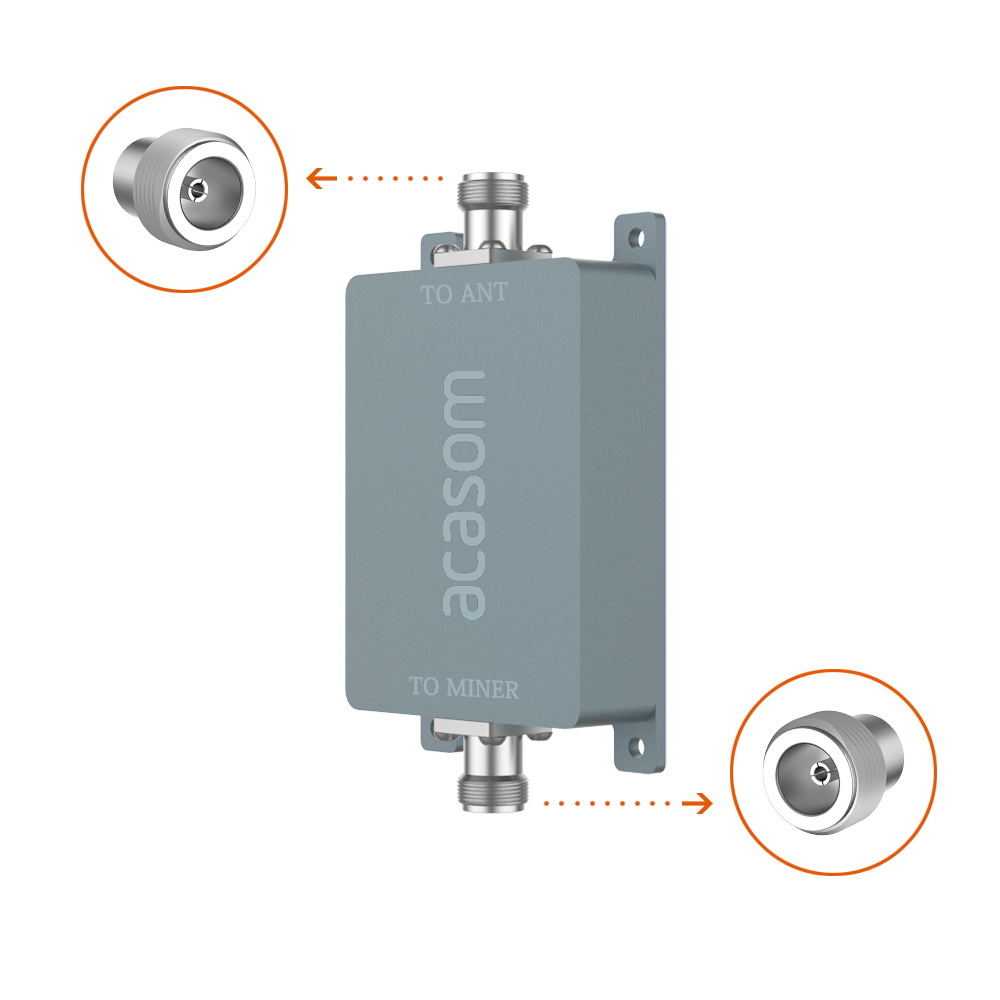

The 868MHz Extender operates from 863-870MHz with a 7MHz bandpass and uses for Helium Network.
This amplifier can be used outdoors with a waterproof function.
The 868MHz Extender has N Female connectors on both sides.

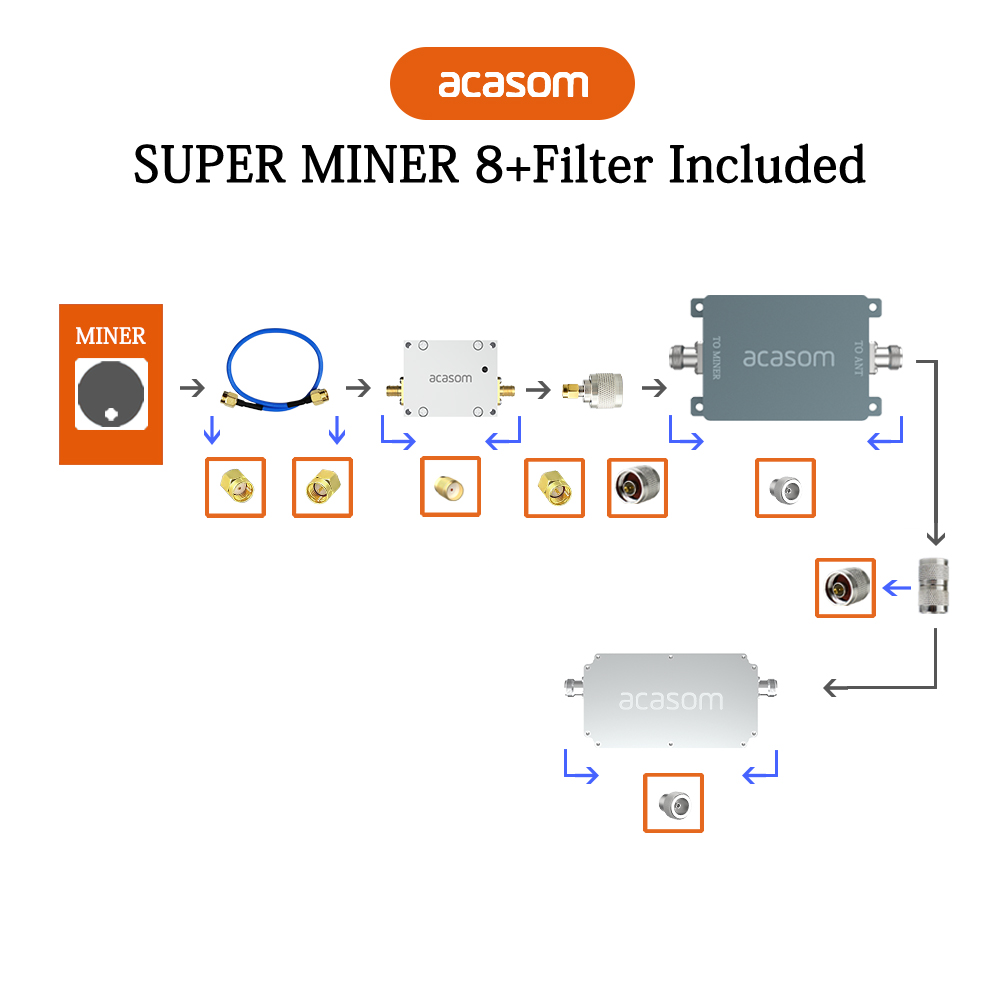

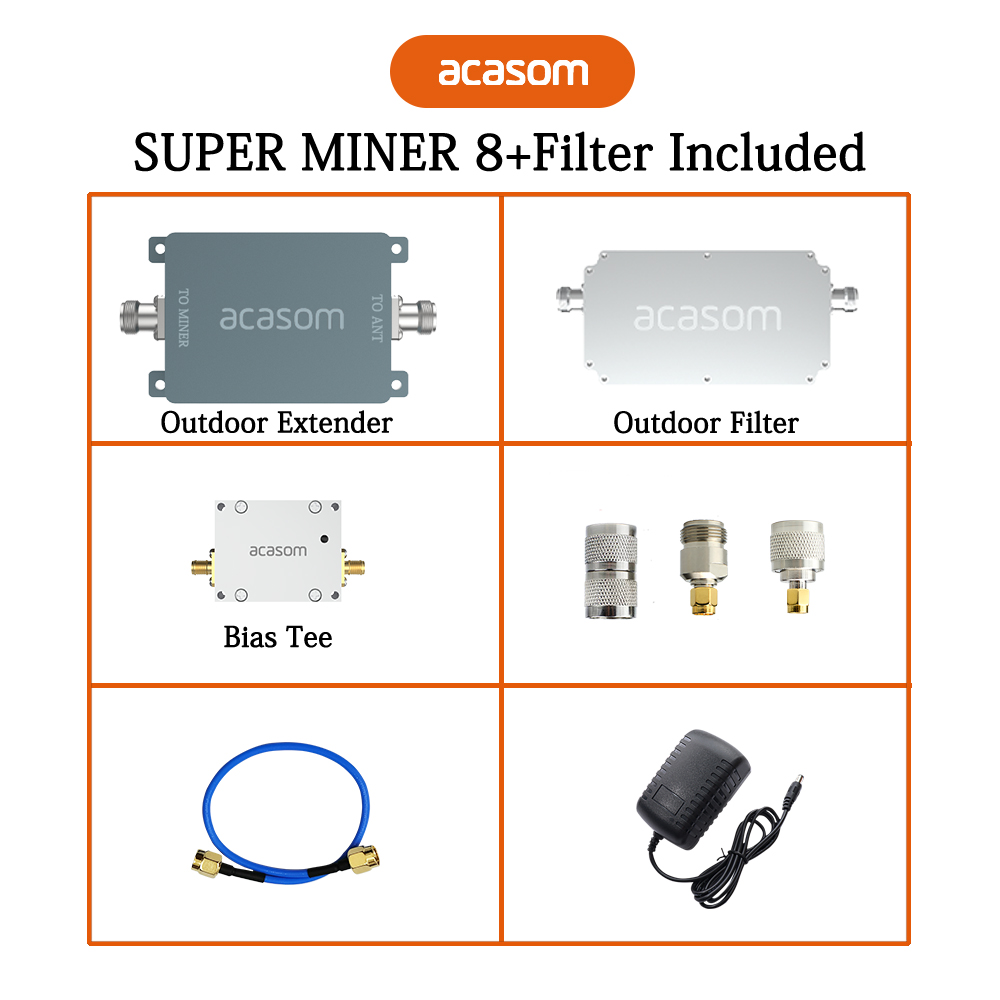

INCLUDED
- 1PCS* EXTENDER(Strength the TX &RX Signal)

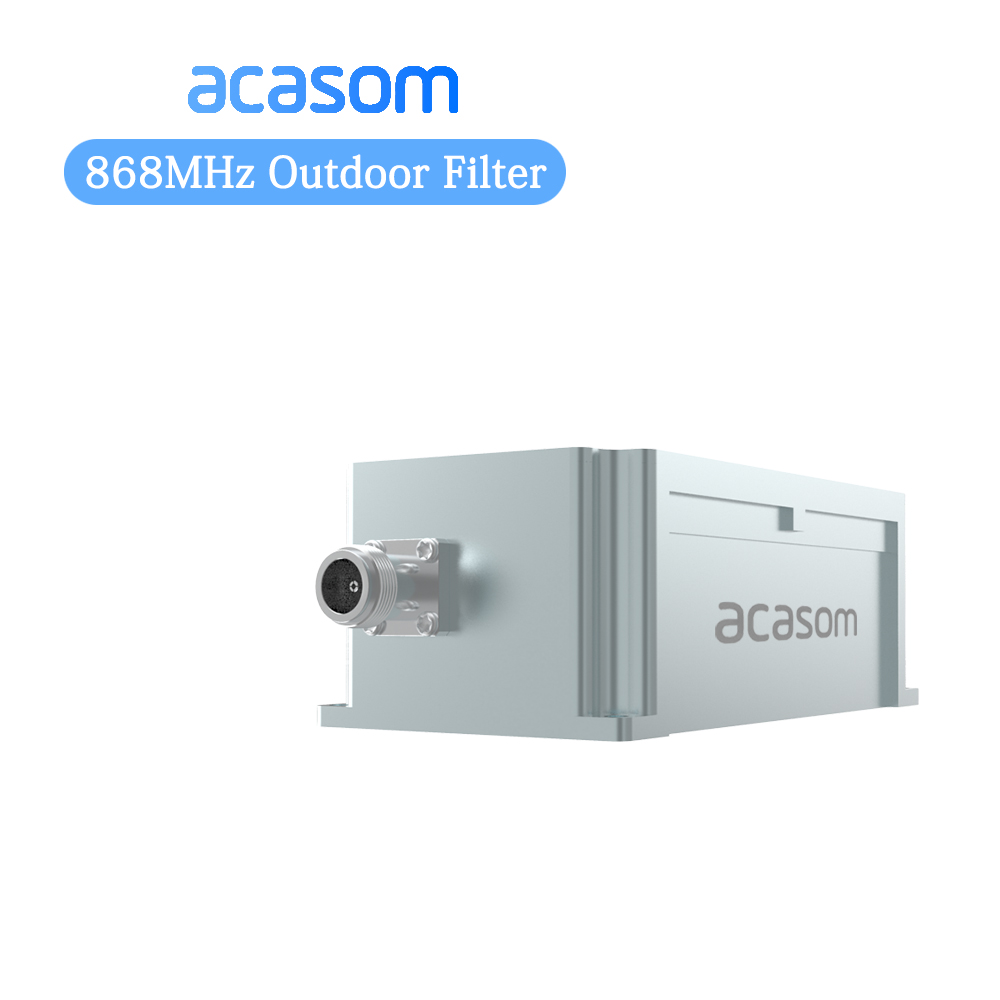

- 1PCS*Filer

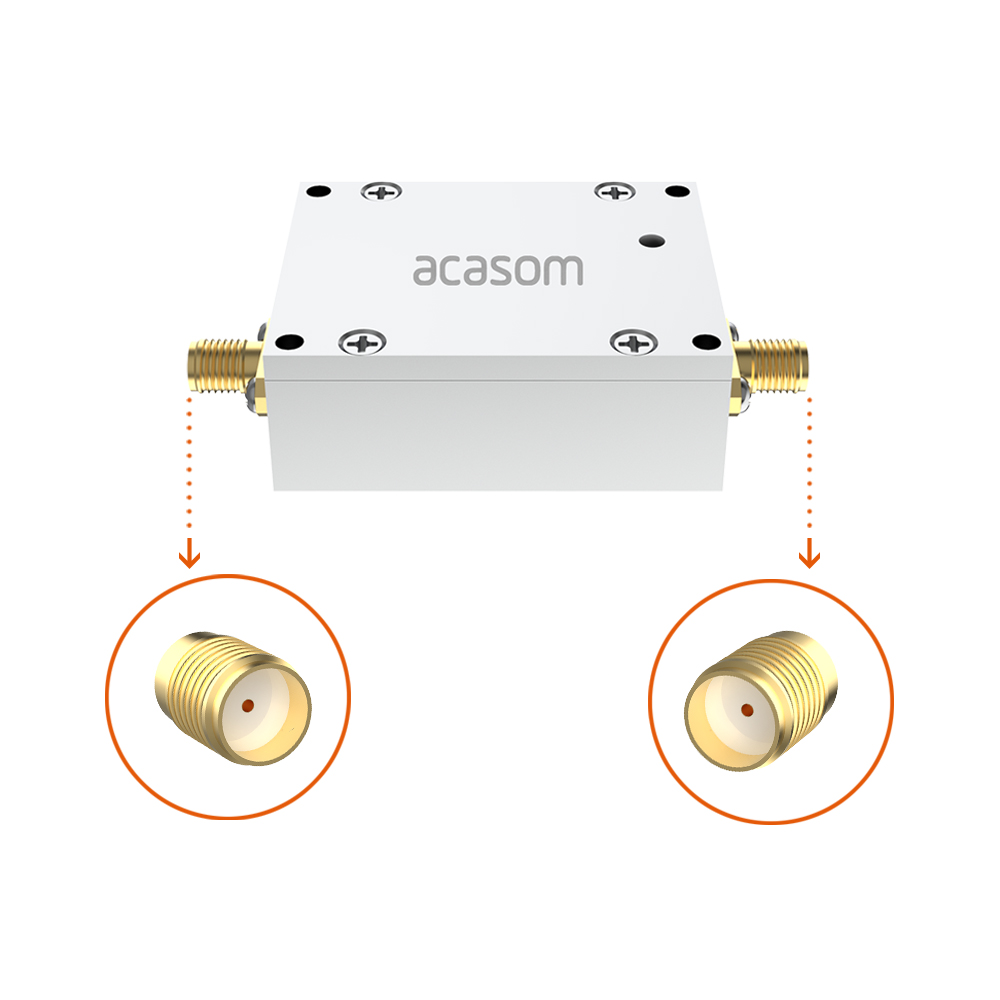

- 1PCS*Bias Tee
- 1PCS* SMA male to N male Connector
- 1PCS* SMA male to N female Connector
- 1PCS* N male to N male Connector
- 1PCS* RG402 Cable (20CM)
- 1PCS* EU Power Plug（power for bias tee）
